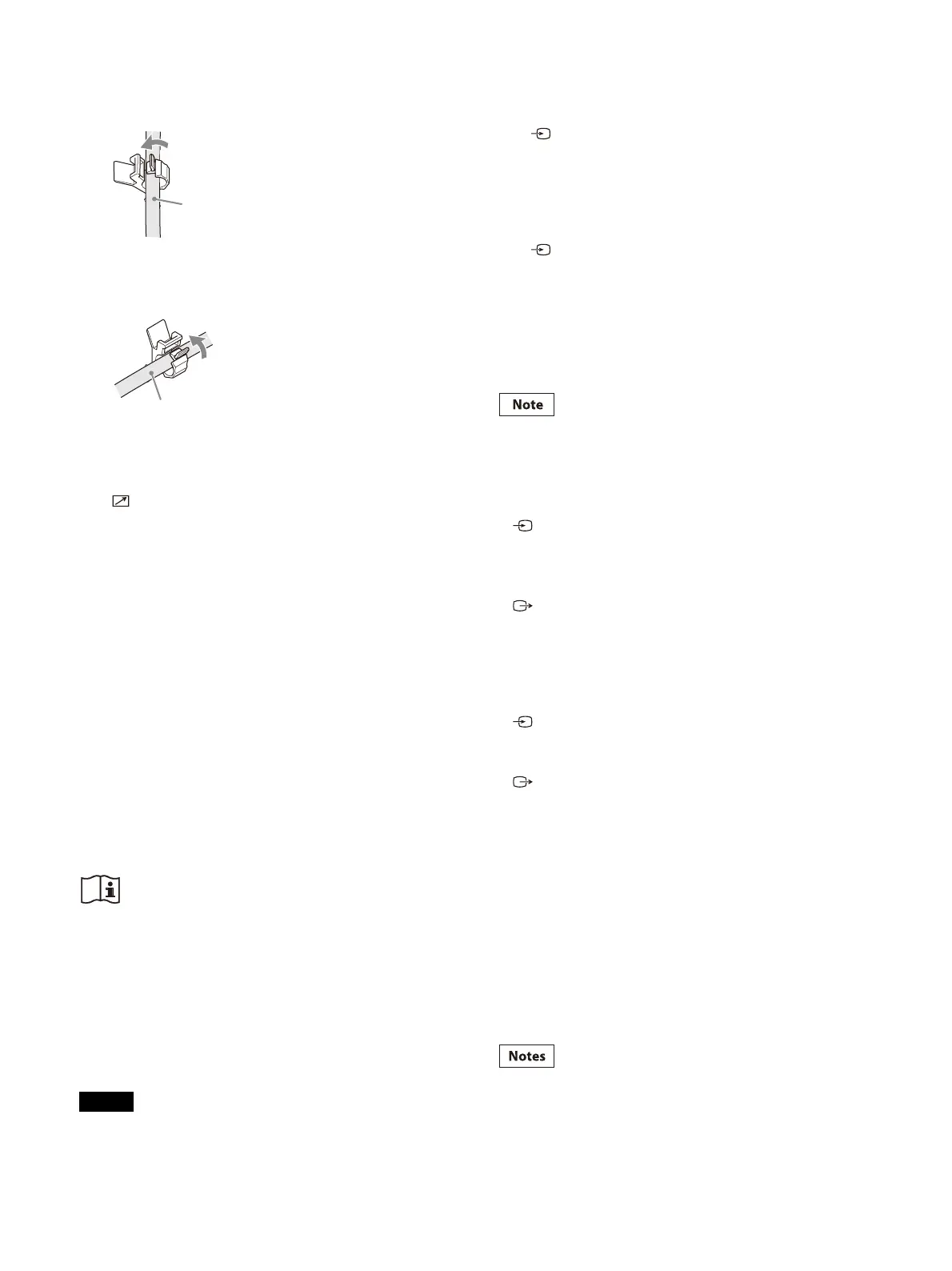

HDMI cable holder
Secures the HDMI cable (Ø7 mm or less).
AC power cord holder
Secures the AC power cord.
Cable holder
Secures the connected cables.
SERIAL REMOTE connector (RJ-45)
The monitor can be operated according to
co
ntrol commands sent from connected external
equipment.
Connect to the LAN (10/100) connector of the
netwo
rk by using a 10BASE-T/100BASE-TX LAN
cable (non-shielded type of category 5 or more,
optional).
Note
Consult with qualified personnel at using this
terminal.
Caution
For safety, do not connect the connector to
peripheral device wiring that might have
excessive voltage.
Follow the instructions for use for this port.
Caution
Do not come into contact with this terminal and
patients at the same time.
Doing so may result in a generation of voltage
that c
an be harmful to patients if the unit is
malfunctioning.
Always disconnect the power cord before
c
onnecting and disconnecting connectors.
Note
The connection speed may be affected by the
network system. This unit does not guarantee
the communication speed or quality of 10BASE-
T/100BASE-TX.
HDMI input connector
Inputs the HDMI signals.
Use the Premium High Speed cable that is
sh
orter than 3 m (meters) with the cable-type
logo.
Display Port input connector
Inputs the Display Port signal.
Display Port is an interface developed by VESA
th
at supports transfer of both video and audio
digital signals on a single cable.
Use the DisplayPort standard version 1.2-certified
ca
ble.
This monitor does not support Display Port audio
sig
nals.
12G-SDI input/output connector (BNC
type
)
input connector (12G-SDI 1/2)
Input connector for serial digital component
sig
nals (4K/HD). SDI 1 and SDI 2 inputs are
available.
output connector (12G-SDI 1/2)
Active through output connector for serial
d
igital component signals (4K/HD). SDI 1 and
SDI 2 outputs are available.
3G-SDI input/output connector (BNC type)
input connector
Input connector for serial digital component
sig
nals (HD/SD).
output connector
Active through output connector for serial
d
igital component signals (HD/SD).
Recommended cables
12G-SDI: Coaxial cable L-5.5CUHD manufactured
b
y Canare Electric Co., Ltd. or an equivalent cable
3G-SDI: Coaxial cable L-5CFB manufactured by
C
anare Electric Co., Ltd. or an equivalent cable
HD-SDI: Coaxial cable L-5CFB manufactured by
C
anare Electric Co., Ltd. or an equivalent cable
SD-SDI: Coaxial cable L-5CFB manufactured by
C
anare Electric Co., Ltd. or an equivalent cable
An SDI signal is output from the output
connector only when the monitor is turned on.
When the monitor is turned off, the signal is
not output from the output connector.
Close
Cable
Close
Cable
