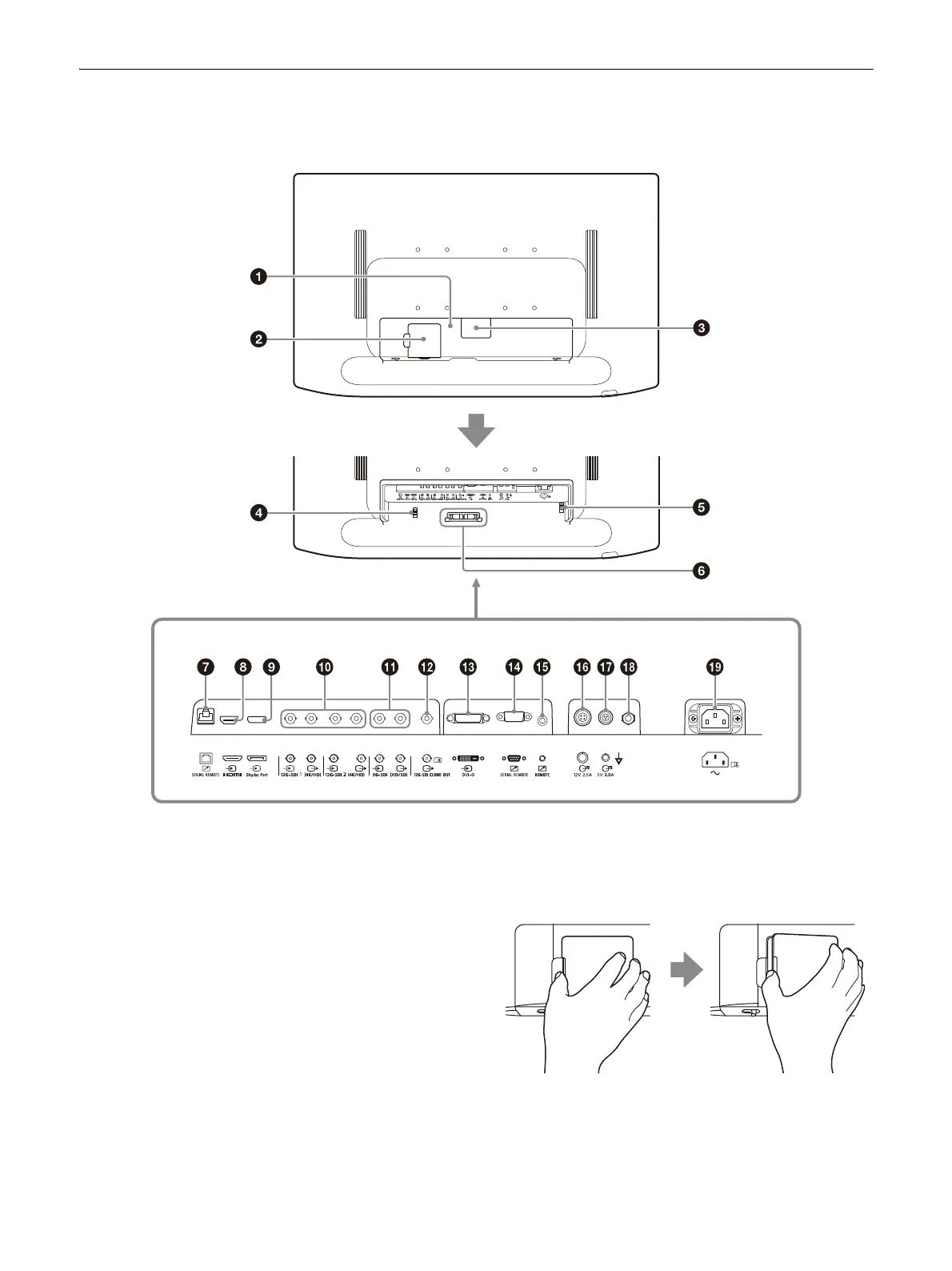

Rear Panel
To use the connectors on the rear panel, remove the cable cover. For details on the cable cover, see
page 24.
Cable cover (L)
When connecting or disconnecting the cable of
t
he connector on the rear panel, remove this
cover.
Make sure to disconnect the power cord before
c
onnecting or disconnecting connectors.
While the unit is operated, the temperature of
the
connectors may become high. Touching the
connectors may burn your hand.
Before connecting or disconnecting connectors,
d
isconnect the power cord, then wait until the
unit cools down sufficiently.
Cable cover (M)
This cover is specifically for the 12G-SDI 1 input/
outp
ut connector. Pull the cover open with your
finger hooked in the concave area near on the
c
over while pressing the tab at the edge of the
cover to the right. The cable of the 12G-SDI 1
input/output connector can be connected or
disconnected without removing the cable cover
(L).
Cable cover (S)
Removing this cover makes a small opening on
t
he cable cover (L) for the connection cable to
pass through.
