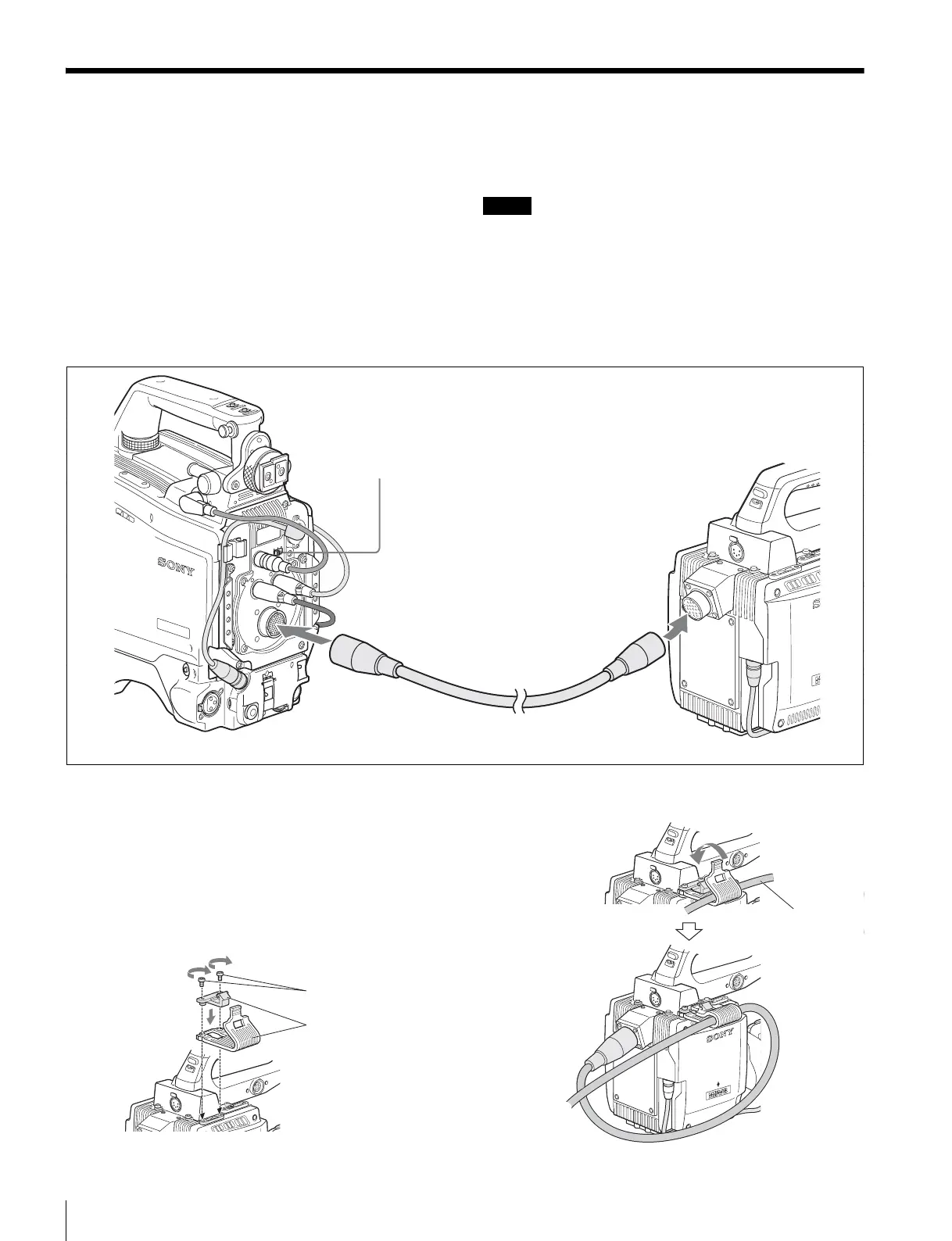

Connecting Between the Cable Adaptor and CCD Block Adaptor
Connecting Between the Cable Adaptor and CCD
Block Adaptor
Using the supplied HDCM cable (12.5 m), connect the
OPT HEAD connector of the cable adaptor and the CAM
BODY connector of the CCD block adaptor.
For the HKC-T1500, optionally available HDCM cables
(25 m/50 m) can also be used.
Be sure to use the CCD block with the camera having the
corresponding serial number.
When you use the HKC-T1500/T3300, update the
software of the camera to the latest version. With the
software before Ver. 1.10, the HDC1500-series camera
will not function in this system. With the software before
Ver. 1.06, the HDC3300 will not function in this system.
To use the supplied cable clamp
You can fix the HDCM cable to the CCD block adaptor,
using the supplied cable clamp.
1
Assemble the cable clamp and attach it to the cable
clamp base of the CCD block adaptor with the
supplied screws (M3×10).
2
Put the HDCM cable in and close the cable clamp.
Notes
CAM BODY
LENS
ON
OFF
INTERCOM
VF
MIC
MIC
OPT HEAD
INTERCOM
CABLE
12.5
25
50m
VF
to the OPT HEAD
connector of the cable
adaptor
CABLE switch
(The figure shows HKC-T1500.):
For the HKC-T1500, set the switch according to the length of the
HDCM cable to be connected.
(The switch is fixed to 12.5 m on the HKC-T3300.)
to the CAM BODY connector of
the CCD block adaptor
Supplied special HDCM cable
(The optional cables can also be
used for the HKC-T1500.)
CAM BODY
ON
OFF
INTERCOM
RET 1
INCOM
VF
MIC
Cable clamp
M3×10 screws
CAM BODY
LENS
ON
OFF
INTERCOM
VF
MIC
CAM BODY
LENS
ON
OFF
INTERCOM
VF
MIC
HDCM cable
