Attaching the Accessories
Using the CCD Block Adaptor
Without the Handle
When the CCD block adaptor must be installed in a limited
space, you can detach the handle.
After detaching the handle, attach the supplied top cover in
its place.

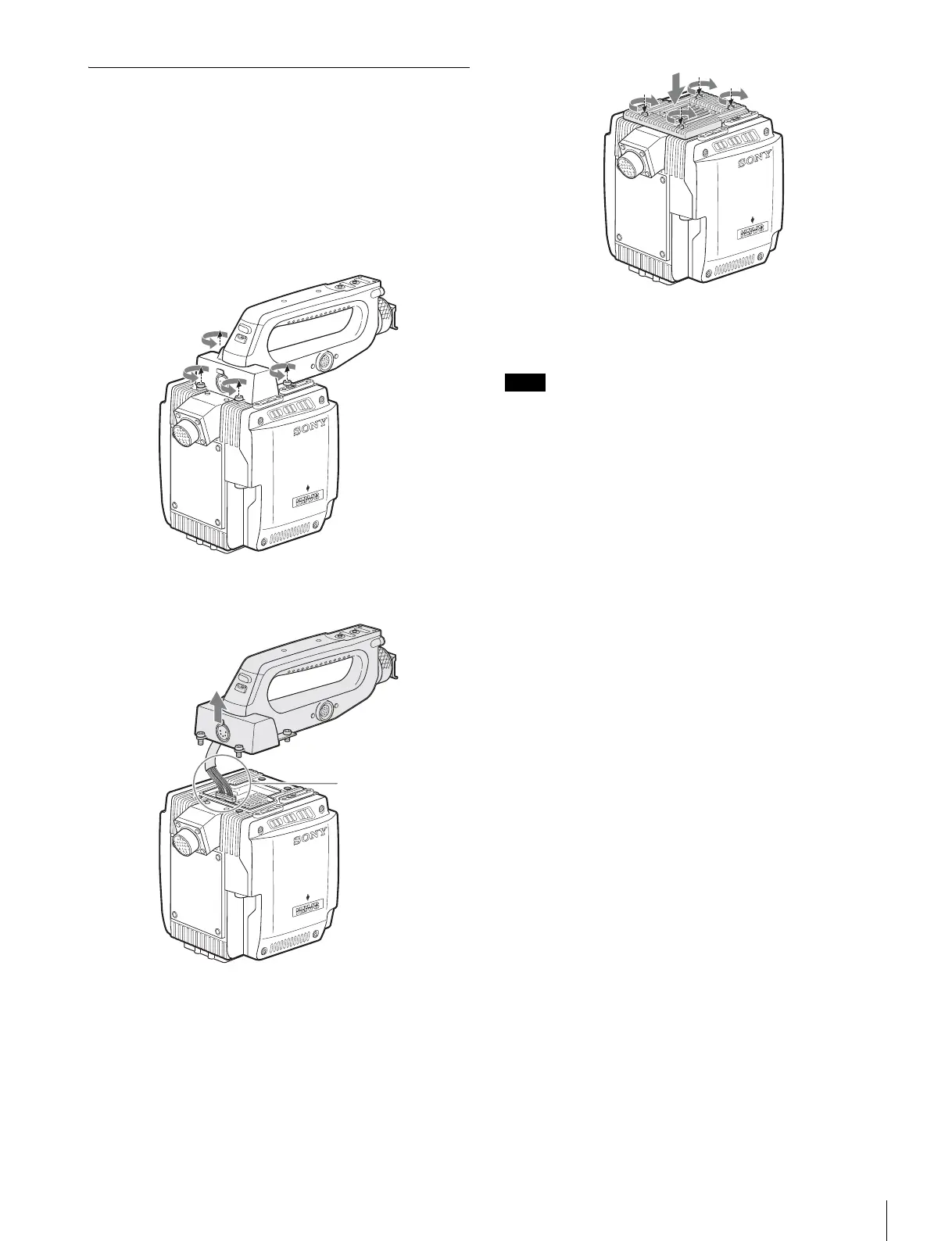

1
Loosen the four screws that secure the handle.
2
Pull up the handle and disconnect the harness.
3
Attach the supplied top cover and tighten the four
screws.
When attaching the handle again
Follow the reverse of the detachment procedure.
Be careful that the harness is not caught between the
handle and the CCD block adaptor. Tightening the screws
with the harness caught will damage wires.
