10 (GB)
Location and Function of Parts and Controls
7 OPTION1 slot (VIDEO/COM port)
This slot supports video signals and communication
function. When you install an optional adaptor with
communication function such as BKM-FW32 or
BKM-FW50 into this slot, you can control the display
unit via the network.
8 OPTION2 slot (VIDEO port)
(Only for the FWD-40LX1)
This slot supports video signals. A blank panel is
attached to this slot for the factory setting. You can
install an optional adaptor with video signal input/
output function into this slot. The optional adaptor
with communication function should be installed in
7 OPTION1 slot.

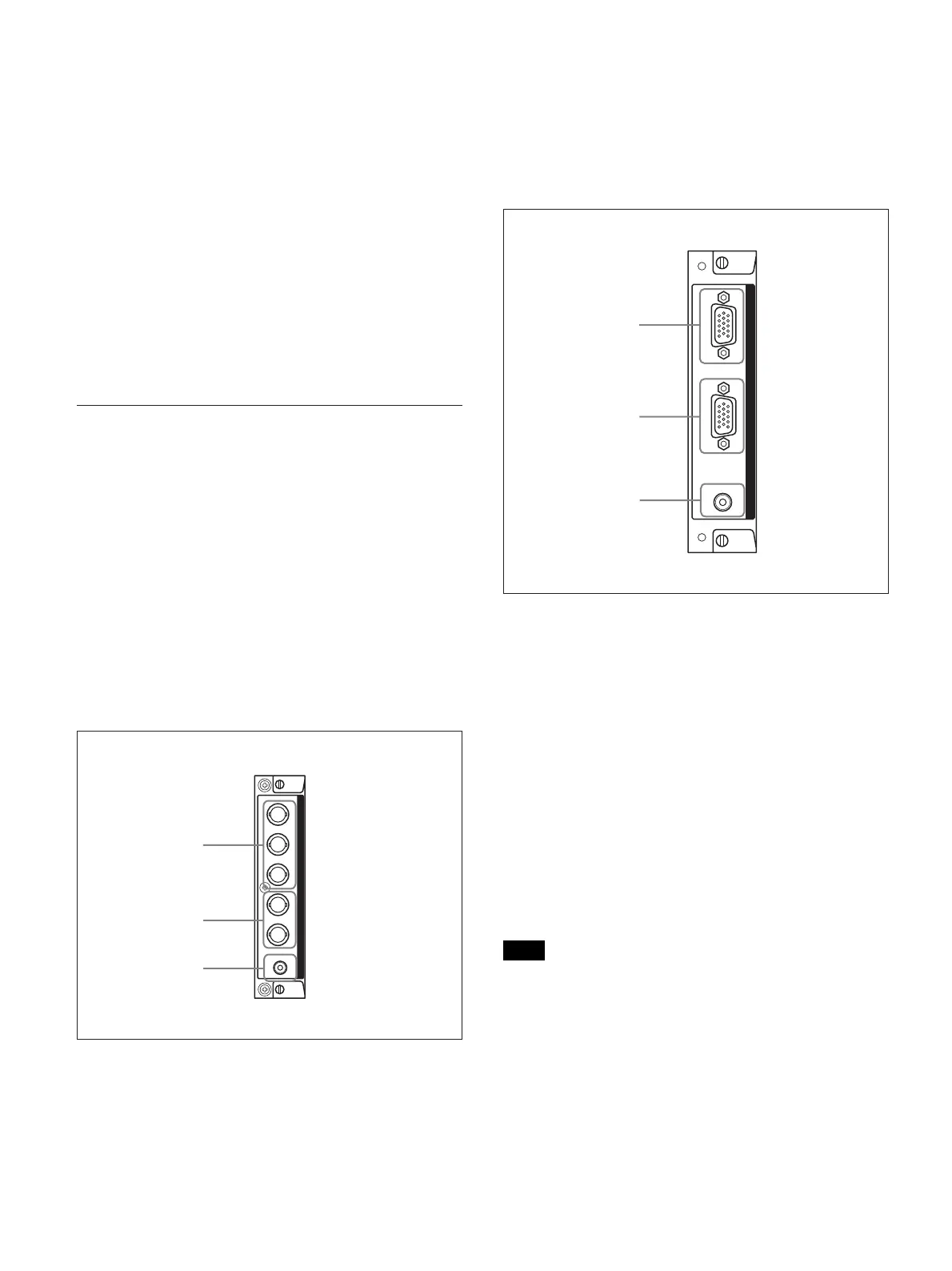

Optional adaptors (Not supplied)
The connectors marked with 7 and 8 on the
connector panel are slot-in types and can be fitted
with any of the optional adaptors in the display.
The OPTION2 slot is equipped only on the FWD-
40LX1.
For details on installation, consult your Sony dealers.
VIDEO/S VIDEO input/output adaptor BKM-
FW10 (Not supplied)
This is the same as the preinstalled connectors 6.
COMPONENT/RGB Input Adaptor BKM-FW11
(Not supplied)
1 Y/G P
B/CB/B PR/CR/R IN (BNC) : Connects to the
analog RGB signal or component (YUV) signal
output of a piece of video equipment or a
computer.
2 HD VD IN : Connects to the synchronization
signal output of a computer.
AUDIO
IN
OUT
IN
RGB/COMPONENT ACTIVE THROUGH
1
2
3
3 AUDIO (Stereo minijack) : Inputs an audio
signal. Connects to the audio output of a piece of
video equipment or a computer.
RGB/COMPONENT ACTIVE THROUGH
ADAPTOR BKM-FW12 (Not supplied)
1 RGB/COMPONENT IN (D-sub 15-pin) :
Connects to the component signal output or analog
RGB signal output of a piece of video equipment or a
computer.
For details on inputting a component signal to the
connector, see “Pin assignment” on page 44 (GB).
2 RGB/COMPONENT OUT (D-sub 15-pin) :
Connects to the component signal input or analog
RGB signal input of a piece of video equipment or a
computer.
3 AUDIO IN (Stereo minijack) :
Inputs audio signal. Connects to the audio signal
output of a piece of video equipment or a computer.
Note
•When the unit is not connected to an AC power or is
in the standby mode, no signal is output from the
RGB/COMPONENT OUT.
• For details on the Option Adaptors for system
expansion, BKM-FW series, refer to each instruction
manual.
AUDIO
VD HD P
R/CR/R PB/CB/B Y/G
COMPONENT/RGB INPUT ADAPTOR
1
2
3
