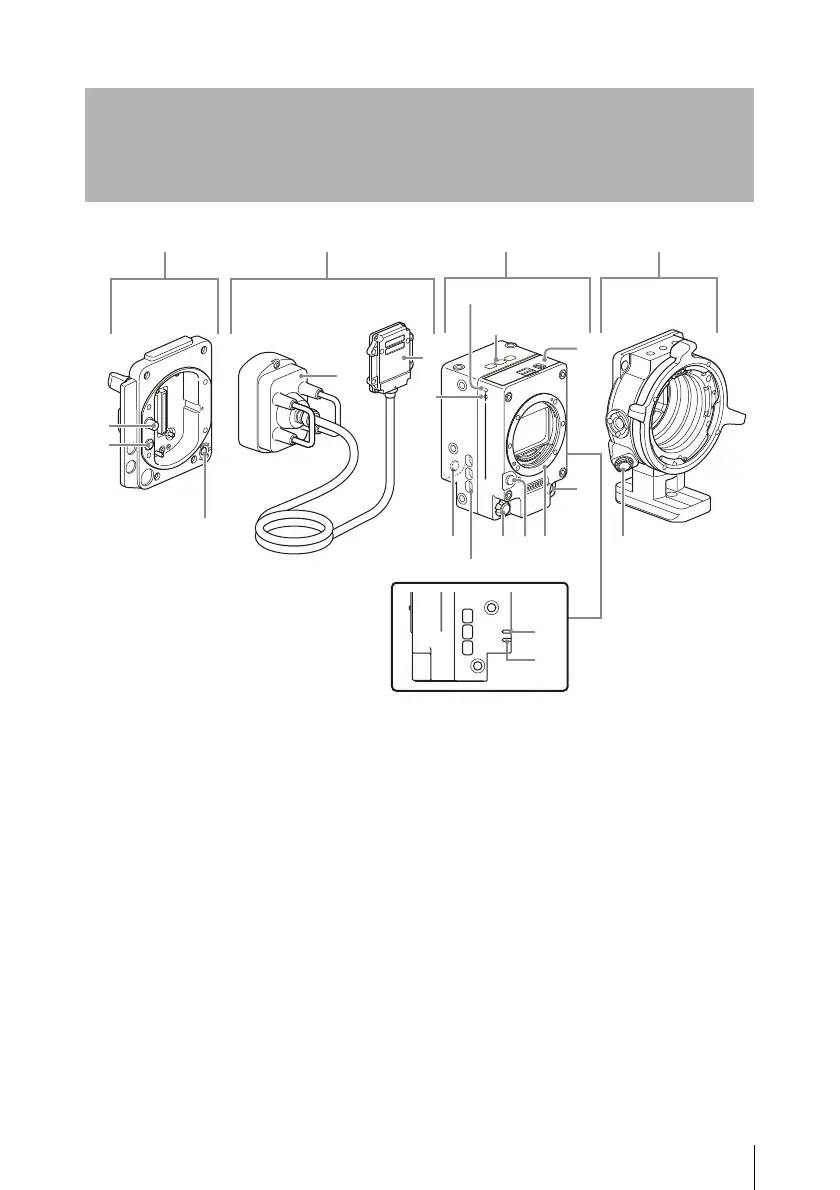

Location and Function of Parts
27
Camera body adaptor
Adaptor that attaches to the camera body
to extend the imager block.
MONITOR IN connector (BNC type)
Not supported.
24 V IN connector (Fischer 3-pin)
DC power supply input connector that
supplies the external power supply to the
imager block adaptor.
ASSIGN (assignable) button 3
Toggles the assigned function between
on/off (enable/disable) or activates the
function with each press.
The lamp is lit orange when the assigned
fun
ction is on (enabled) or activated.
For details about function assignment,
ref
er to the MPC-3628/MPC-3626
Operating Instructions.
Detachable cable
4.5 m detachable extension cable for
connection between the camera body
adaptor and camera head.
Receiver
Receiver adaptor that connects to the
camera body adaptor.
Transceiver
Adaptor that connects to the camera head.
Camera head
Imager block equipped with an 8.6K CMOS
image sensor.
Location and Function of Parts
ɞɢ
ɣ
ɟ
ɠ
ɡ
ɡ
ɤ
ɦ
Exhaust vent
Air intake × 2
Drainage hole × 2
