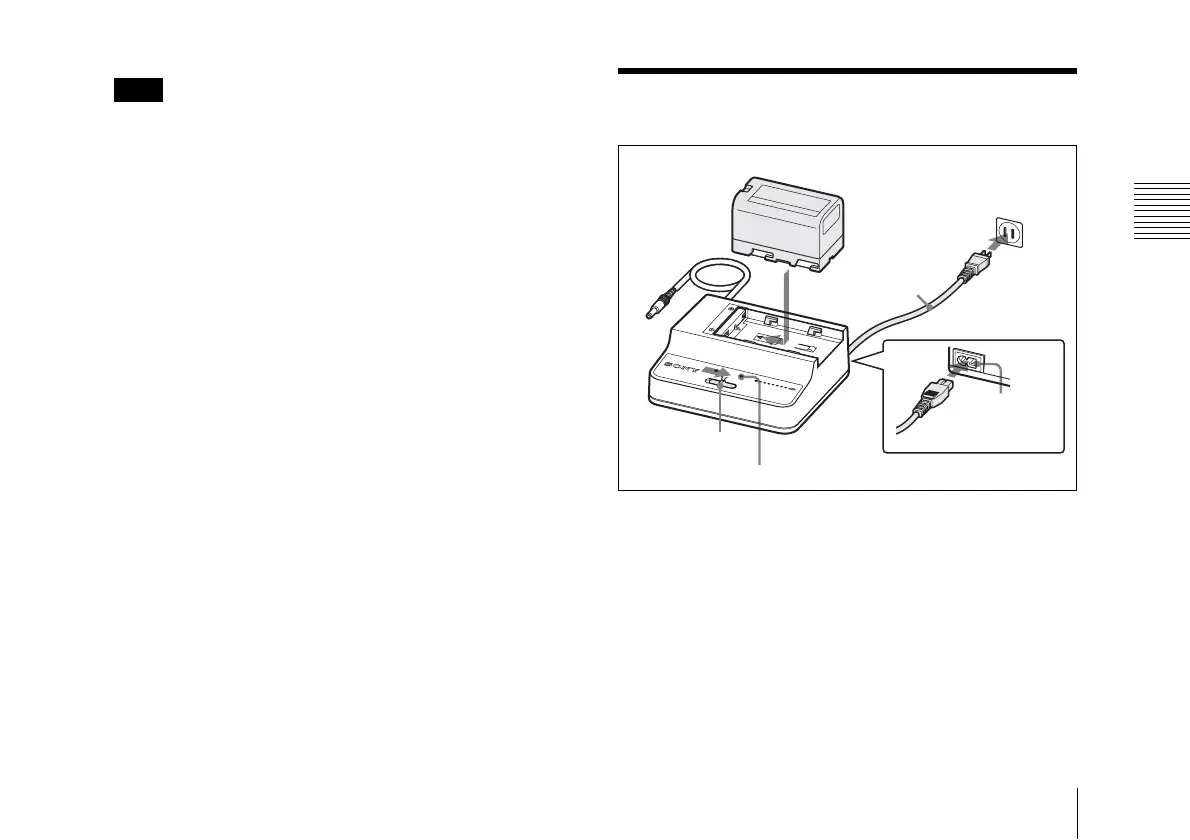

Charging a Battery Pack
Charging a Battery Pack
13
Do not connect a device with power requirements higher than the
specified values.
b Charge connectors
Supplies power for charging a lithium-ion battery pack.
The charging current is automatically blocked when a battery pack
other than a lithium-ion battery pack has been mistakenly attached.
c AC input connector
Connects to an AC power source via the AC power cord.
d CHARGE indicator
Shows the charging status of the attached battery pack during
charging of a battery pack with the Mode select switch set to
CHARGE.
For details, see “Charging a Battery Pack” on page 13.
e Mode select switch
CHARGE: For charging a lithium-ion battery pack
DC OUT: For supplying DC power
f DC OUT indicator
Lights in green when the Mode select switch is set to DC OUT and
DC power is being supplied.
If some trouble is detected, the indicator goes dark.
Charging a Battery Pack
1 Set the Mode select switch to CHARGE.
2 Connect the AC input connector on the BC-U1 and the AC
power source using the AC power cord.
3 Attach the battery pack.
Place the battery pack with the triangle mark facing the charge
connectors and slide it in the direction indicated by the arrow.
Be sure to push the battery pack to engage the charge
connectors until it clicks.
Charging begins, and the CHARGE indicator shows the
charging status.
Note
DC OUT
CHARGE
BATTERY CHARGER
BC-U1
0% 80 100
1
2
-1
2-2
3
BP-U30/U60/U90 Lithium-ion Battery Pack
AC power source
AC power cord
AC input
connector
Mode select switch
CHARGE indicator
