46

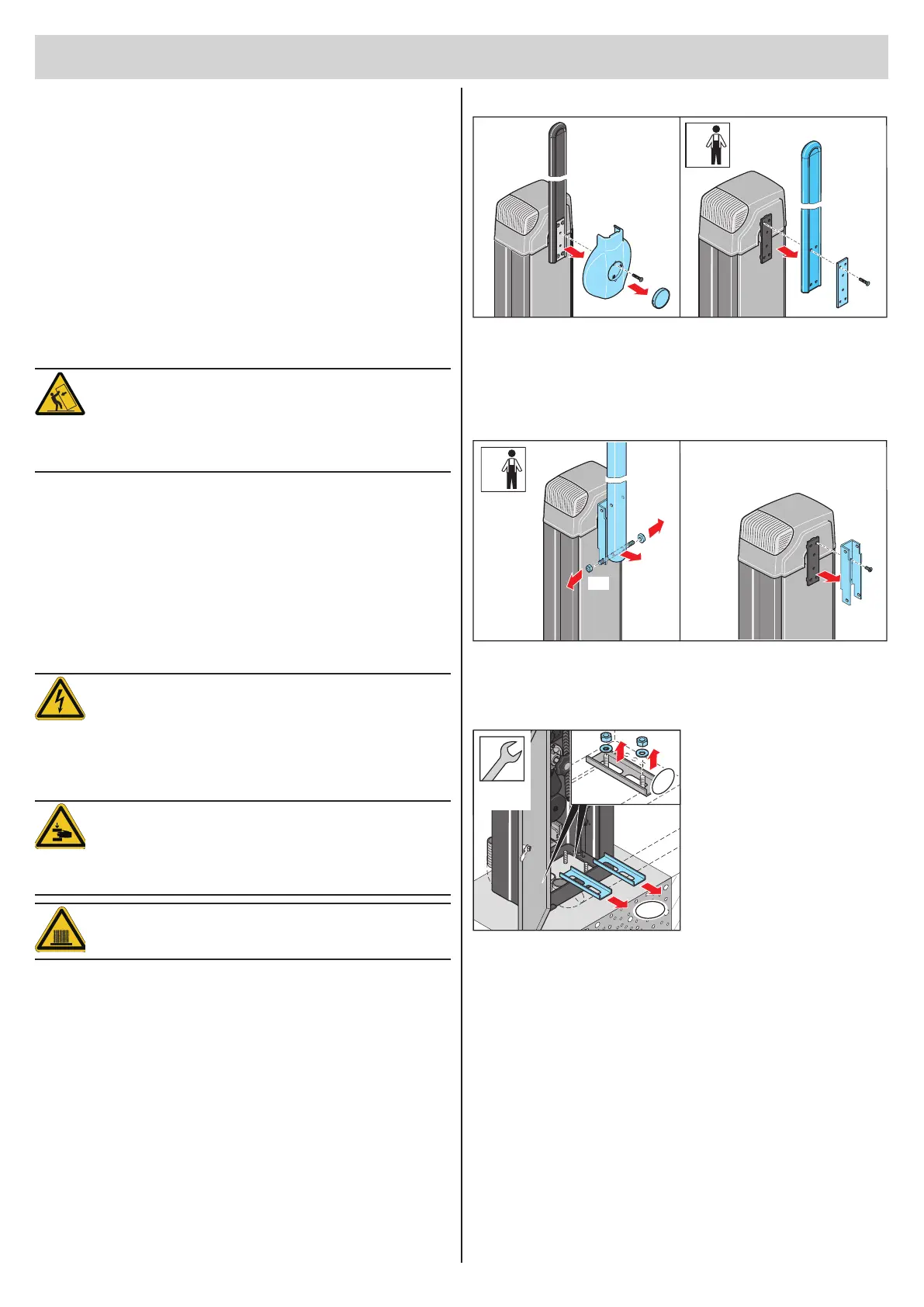

Safety information for disassembly
During disassembly, additional dangers that do not occur during operation
must be expected since the safety devices are to some extent disabled.
¾ Perform disassembly only up to a maximum wind strength of 3 on the
Beaufort scale (light wind).
¾ At least two people are required for the entire disassembly.
¾ Physically disconnect the power supply lines and discharge energy
buers.
¾ For disassembly work performed above body height, use suitable,
tested, and stable climbing aids. Never use the barrier or parts of the
barrier as climbing aids.
¾ The disassembly of the barrier and all work on the electrical system
may only be performed by the personnel described in the chapter
"Qualications of personnel" on page 6.
DANGER OF TIPPING!
The barrier may tip during disassembly.
This can cause injuries and damage to the barrier.
¾ Transport and disassembly must be performed by
two persons and using suitable transport equipment.
Storage after disassembly
If the barrier is to be put into intermediate storage after disassembly,
observe the provisions and regulations for storage listed in "Transport /
Unloading / Storage" on page 13.
If possible, store the control unit of the barrier separately.
Description of the disassembly
work
DANGER!
If there is direct or indirect contact with live parts,
dangerous current could ow through the body.
Electrical shock, burns, or death may result.
¾ Before starting disassembly, set the main switch to "0,"
secure it with a padlock, and attach a warning sign.
RISK OF CRUSH INJURIES TO HANDS!
¾ Risk of crushing at the lever system of the barrier when
the hood and door of the barrier housing are open!
¾ Follow the instructions on personal protective
equipment!
RISK OF BURNS!
Wait at least ve minutes after deactivation so that the
motor can cool down and the capacitors lose their voltage.
1. Disconnect the mains supply line and remove it.
2. Remove the control unit.
3. Disassemble the connected accessories and remove the control unit.
Flat boom H10
4x
2x
2x
4. Remove the boom in the vertical opening position.
5. Remove the faceplate and disassemble the cover with 2 screws.
6. Release 4 screws from the boom and remove the boom and the
shim plate.
Round boom D07
2x
4x
2x
7. Remove the boom in the vertical opening position.
8. Unscrew the 4 screws and take o the boom holder.
9. Separate the boom and boom holder by releasing 2 threaded bolts.
17 mm
19 mm
1.
2.
10. Open the barrier housing and loosen 4 nuts.
11. Remove the nuts, washers, and U-proles.
12. Remove the barrier housing.
Disassembly and disposal
