32

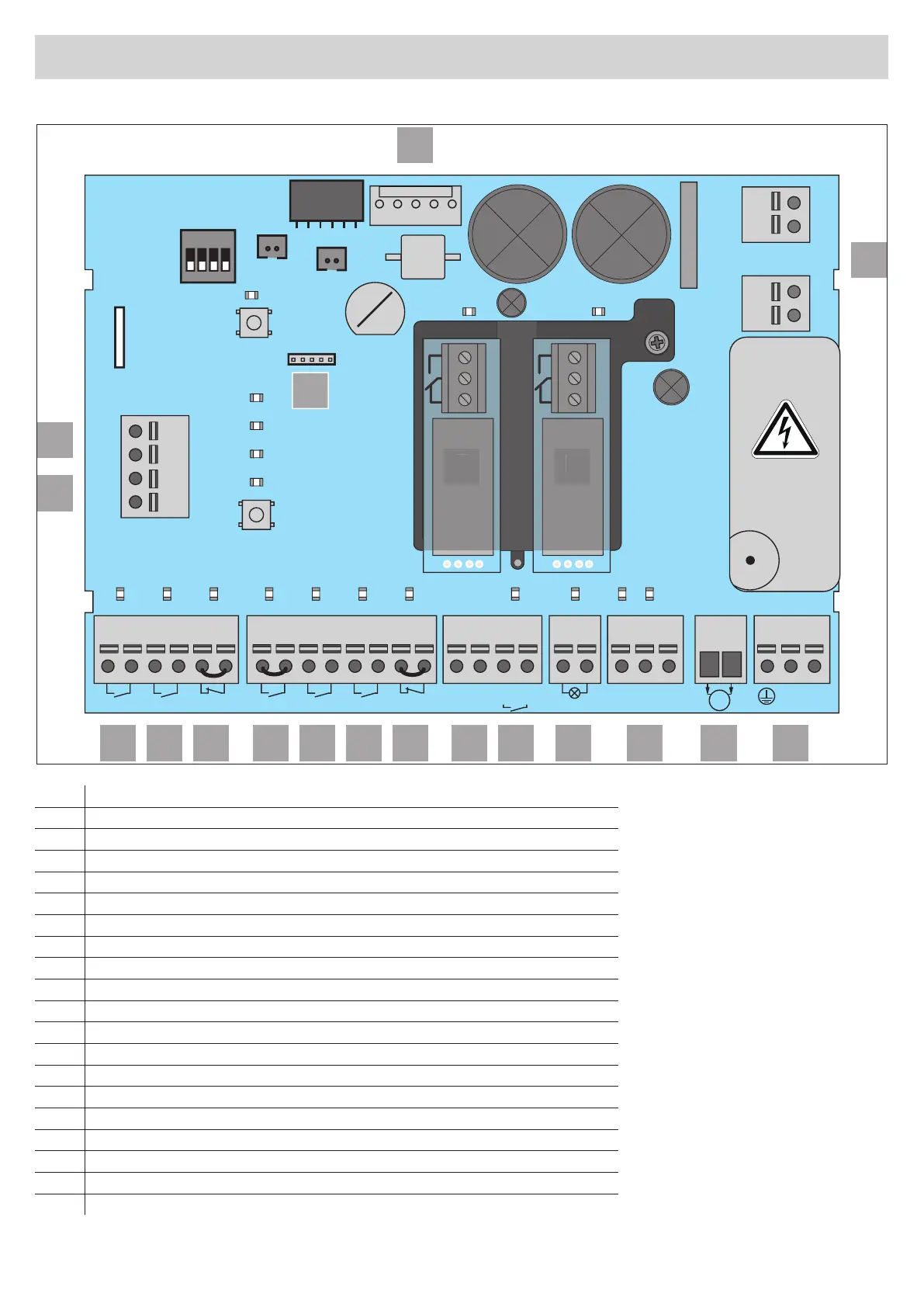

Connection overview
RADIO TRANCEIVER
CH1
CH3
CH2
CH4
RADIO
START1 START2 SAFETY
INDUC. 1INDUC.2
MUFU 1 MUFU 2
MEMO
ACCU
BUZZER
LUMI
STATUS
24V
GND
24VACNL
CLOCKALARM
24V
GND
SIGNAL
COM
WARNING
Limit
open
Limit
close
GND
M
LN
ON
1234
GND
12V
6 7
USART
1
2
4
5
8 9 10 11 12 13 14 15 16 17 18 19 20
3
6
7
1) Transformer
2) Slot for Accu
3) Slot for Memo
4) Output 24 V DC max. 300 mA (600 mA*)
5) Output 12 V DC max. 150 mA
6) Multi-function relay slot
7) Multi-function relay slot
8) External button 1, potential-free
9) External button 2, potential-free
10) Emergency stop / targeted STOP, potential-free
11) NC contact, induction loop detector, potential-free
12) NO contact, induction loop detector, potential-free
13) Timer, potential-free
14) Alarm safety input, potential-free
15) Voltage supply 4-wire photocell 24 V DC, max. 100 mA
16) 2-wire photocell, switching contact 4-wire photocell, 8k2 safety contact strip
17) Warning light 24 V max. 3W
18) Limit stop OPEN / CLOSE
19) Motor
20) Mains connection 220-240 V AC 50/60 Hz
*600 mA are only available if no further external 24 V and 12 V device is connected to the control unit.
Control unit
