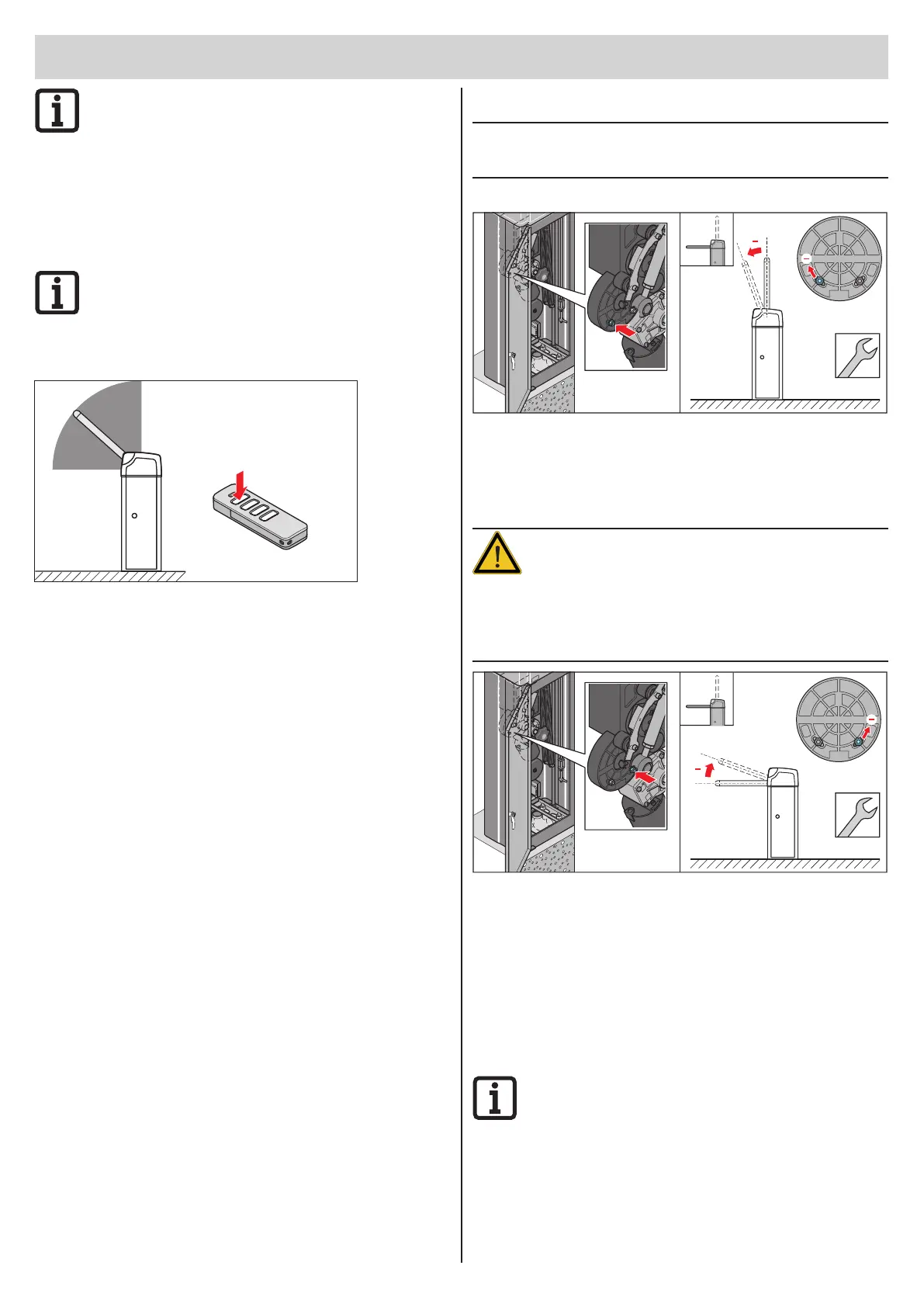

Initial operation
INFORMATION:
If changes are made to the boom later, the spring force
must be readjusted and the force values reprogrammed.
This is necessary when shortening the boom, mounting
accessories on the boom or exchanging the boom for
a longer or shorter boom.
Checking the movement range and
end positions
INFORMATION:
In accordance with the regulations, the rst movement
of the barrier when the operating voltage is connected is
always in the OPEN direction. If this is not the case, there
is a fault in the electrical connection and the wiring of the
limit stops and the motor connection must be checked.
1. Connect the voltage supply of the barrier.
⇒ "Status" LED ickers
2. Press button 1 on the handheld transmitter briey.
⇒ The barrier opens until the OPEN end position is reached,
or it is already open.
⇒ "Limit Open" LED lights up red.
⇒ Warning light double-blinks.
3. Press button 1 on the handheld transmitter again.
⇒ End position is conrmed.
⇒ Barrier closes until the CLOSE end position is reached.
⇒ "Limit Close" LED lights up.
⇒ Warning light double-blinks.
4. Press button 1 on the handheld transmitter again.
5. If necessary, set the end positions of the barrier to the desired
positions.
⇒ If the end positions are already correct, continue at chapter
"Programming the force values and end positions" on page 26
Setting the end position (optional)
NOTE!
The motor may be damaged if the end positions are not set
correctly!
1. De-energise the barrier and secure it against reactivation.
OL
C L
8 mm
2. Open the door of the barrier housing.
3. To adjust the upper end position (OL), loosen the nuts (width across
ats 8) and move them in the oblong holes.
• In the – direction, the movement range is shortened
• In the + direction, the movement range is extended
WARNING
There are reed sensors for the barrier control system
located under the nuts.
If the nuts are tightened too strongly, the reed sensors will
be destroyed and irreparable damage to the barrier may
result.
¾ Tighten the nuts (width across ats 8) only slightly.
OL
C L
8 mm
4. To adjust the lower end position (CL), loosen the nuts (width across
ats 8) and move them in the oblong holes.
• In the – direction, the movement range is shortened by a maximum
of XX°.
• In the + direction, the movement range is extended by a maximum
of XX°.
5. Check the movement range and end positions of the barrier;
see chapter "Checking the movement range and end positions" on
page 25
Setting the swivel range (optional)
INFORMATION!
During adjustment of the swivel range, the angle
between the two end positions changes only minimally.
Both end positions are pushed evenly in one direction.
1. De-energise the barrier and secure it against reactivation.
