24
Safety information for initial
operation
DANGER!
If there is direct or indirect contact with live parts,
dangerous current could ow through the body.
Electrical shock, burns, or death may result.
¾ Before performing wiring work, make sure that the
lines are de-energised. During wiring work, make
sure that the lines remain de-energised (e.g. prevent
reactivation).
¾ Connection to the mains power must be performed
by the personnel described in the chapter
"Qualications of personnel" on page 6.
WARNING
Risk of injury caused by the closing boom!
¾ Keep out of the range of movement of the boom!
WARNING
Risk of injury through incorrect attachment of parts!
¾ Before initial operation, check that the heavy-duty
anchors and all screws are tightly and securely seated!
RISK OF CRUSH INJURIES TO HANDS!
¾ Risk of crushing at the lever system of the barrier when
the hood and door of the barrier housing are open!
¾ Follow the instructions on personal protective
equipment!
¾ All work on the barrier must be carried out by qualied personnel!
¾ Before working on the barrier, always disconnect the system and
secure it to prevent reactivation!
¾ Perform installation only up to a maximum wind strength of 3 on the
Beaufort scale (light wind).
Initial operation of the barrier may not be carried out until:
¾ All required monitoring devices (for example, photocells) are correctly
connected.
¾ All accident prevention measures have been taken.
¾ All safety provisions are observed.

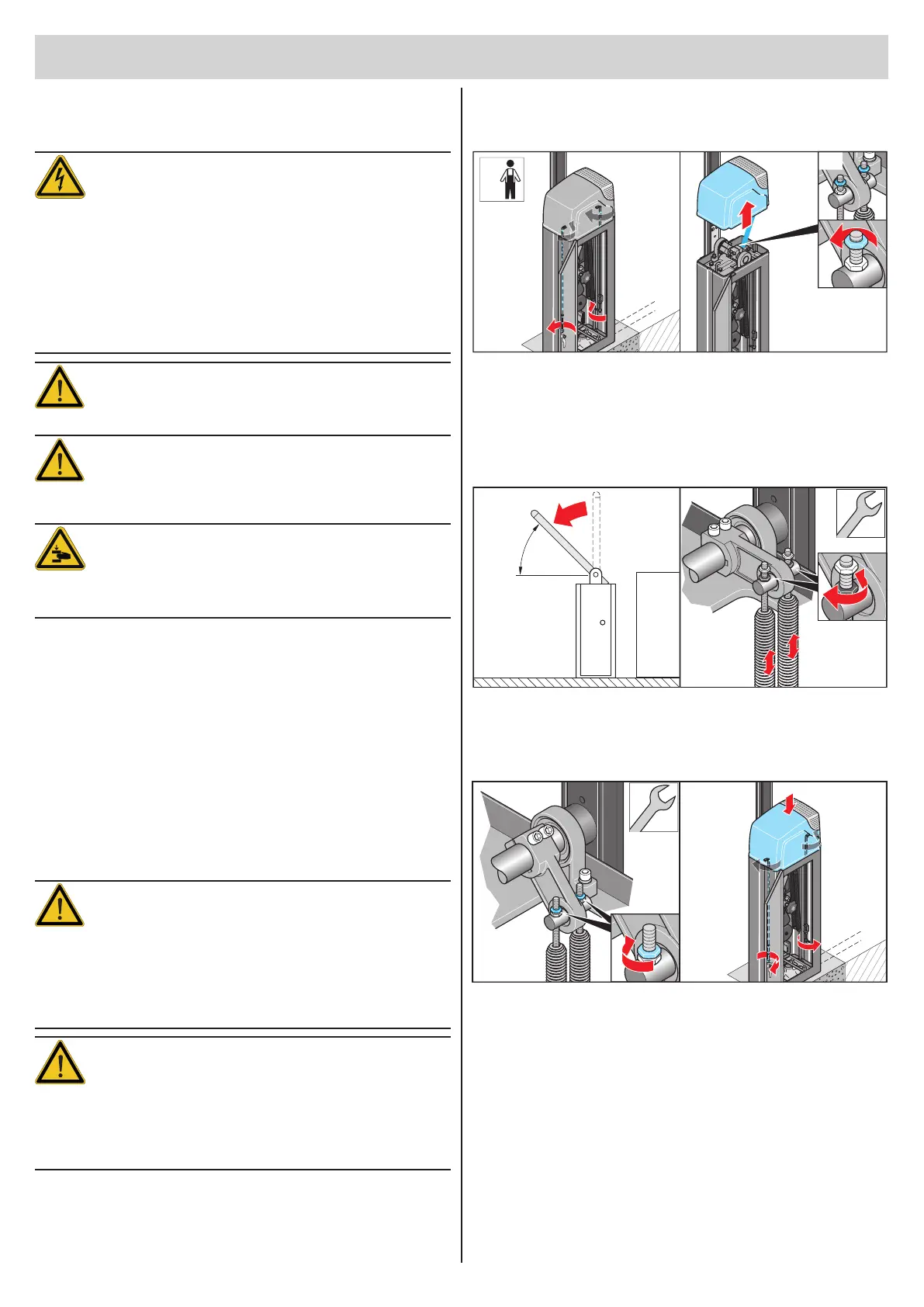

Adjusting the spring unit
WARNING
The adjustment of the spring unit is safety-relevant and
must be performed by qualied personnel and with the
utmost care.
If the setting of the spring unit is impermissibly high,
persons could be injured and objects damaged.
¾ Adjust the spring unit as described below to allow quick
and reliable detection of obstacles.
WARNING!
If emergency release is performed by only one person,
the emergency release button transfers considerable
forces to the hand of the operating personnel.
Severe injuries may result!
¾ Emergency release must be performed according to
the instructions in this manual and only by two persons.
¾ At least two persons are required for the adjustment of the spring unit.
The barriers are delivered without adjustment of the spring unit.
The required spring force depends on the specic boom installed
and the accessories mounted on it.
The barrier will only work correctly if the weight of the boom is
compensated for by the tensile force of the springs; for this purpose:
1. De-energise the barrier and secure it against reactivation.
2x
2x
2. Open the door of the barrier housing.
3. Release the locking mechanism of the cover.
4. Remove the top cover of the barrier.
5. Release the lock nuts of both springs.
6. Barrier emergency release, see"Emergency release" on page 30
45°
14 mm
7. Bring the boom into a 45° angle using the emergency release button or
by hand and hold it there.
8. Adjust both nuts of the springs so that the boom remains at a 45° angle
when released.
14 mm
9. Tighten the lock nuts of both springs.
10. Fit the top cover of the barrier and lock it.
Initial operation
