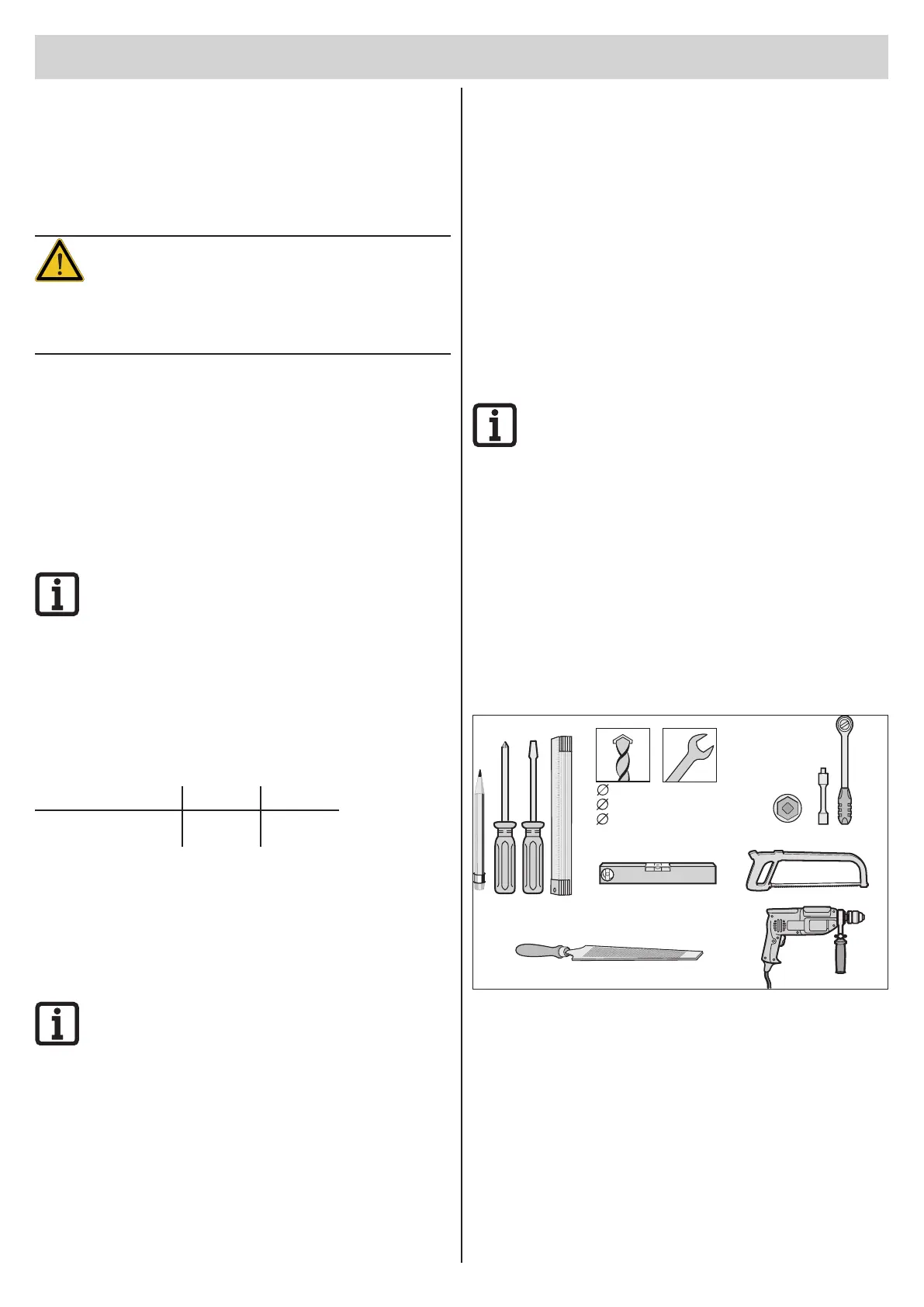

16
Installation preparations
When selecting the empty ducts, take all the lines to be laid into
consideration. These may be:
• power supply line,
• connecting line for photocell/induction loop,
• connecting line for the stationary command devices,
• connecting line for accessories such as warning light, external antenna,
etc.
WARNING
Never lay the power supply line in the same duct as the
connecting lines.
Interference in the control unit may result.
¾ Use dierent empty ducts for the power supply line
and the connecting lines.
Use only lines/cables suitable for outdoor use (resistance to cold,
UV-resistance).
The surface of the foundation must be even and absolutely horizontal to
the trac lane (smoothed) so that the barrier housing can be set up evenly.
Use concrete with the following strength class:
– EN 206 C25/30 XC4, XF1, XA1 (25-30 N/mm²)
The foundation must be massive and steel-reinforced.
The barrier housing is attached using heavy-duty anchors (not included in
the scope of delivery).
Minimum size of the heavy-duty anchor M10x120 or M12x125.
INFORMATION:
For further information on heavy-duty anchors, contact
your specialist dealer.
Creating the foundation for the
support post
A stable foundation is required for the installation of the support post.
The minimum size for the foundation is specied in the following table.
Depending on the danger of frost, the depth of the foundation (D) must
be adapted in a frost-proof manner so that the ground cannot lift.
D W L
Frost-proof!
800 mm in Germany
200 mm 200 mm
The surface of the foundation must be even and absolutely horizontal to
the trac lane (smoothed) so that the support post can be set up straight.
Use concrete with the following strength class:
– EN 206 C25/30 XC4, XF1, XA1 (25-30 N/mm²)
The barrier housing is attached using heavy-duty anchors (not included
in the scope of delivery).
Minimum size of the heavy-duty anchor M8x75 or M10x85.
INFORMATION:
For further information on heavy-duty anchors, contact
your specialist dealer.
Stationary command devices
Stationary command devices (key switch, pushbutton, etc.) must
be positioned in such a way that
• they can be reached easily from any vehicle,
• the user is not in the range of movement of the barrier,
• the user has a direct view of the barrier during actuation.
Safety measures
For the safe operation of the barrier, the operator must install the
necessary safety devices. The opening and closing movements must
be monitored using suitable measures.
Examples of such measures are:
• photocells,
• induction loops.
INFORMATION:
Up to two safety devices can be connected to the
control unit! A safety device must always be connected
as a normally closed contact so that safety is always
guaranteed in the event of a defect.
Pedestrian trac
The ASB-6010, ASB-5507A, 6010A and ASB-5014A barriers may only
be used for vehicle trac. Persons must not use the barrier.
The operator must use suitable measures to guarantee a strict separation
of vehicle and pedestrian trac. Structural separations such as pedestrian
paths next to the trac lane must be supplemented with warnings and
corresponding signs.
Tools required
The following tools must be available in order to perform proper installation:
13 mm
17 mm
19 mm
10 mm
12 mm
8 mm
14 mm
6 mm
8 mm
4 mm
