User Manual
3. Installation

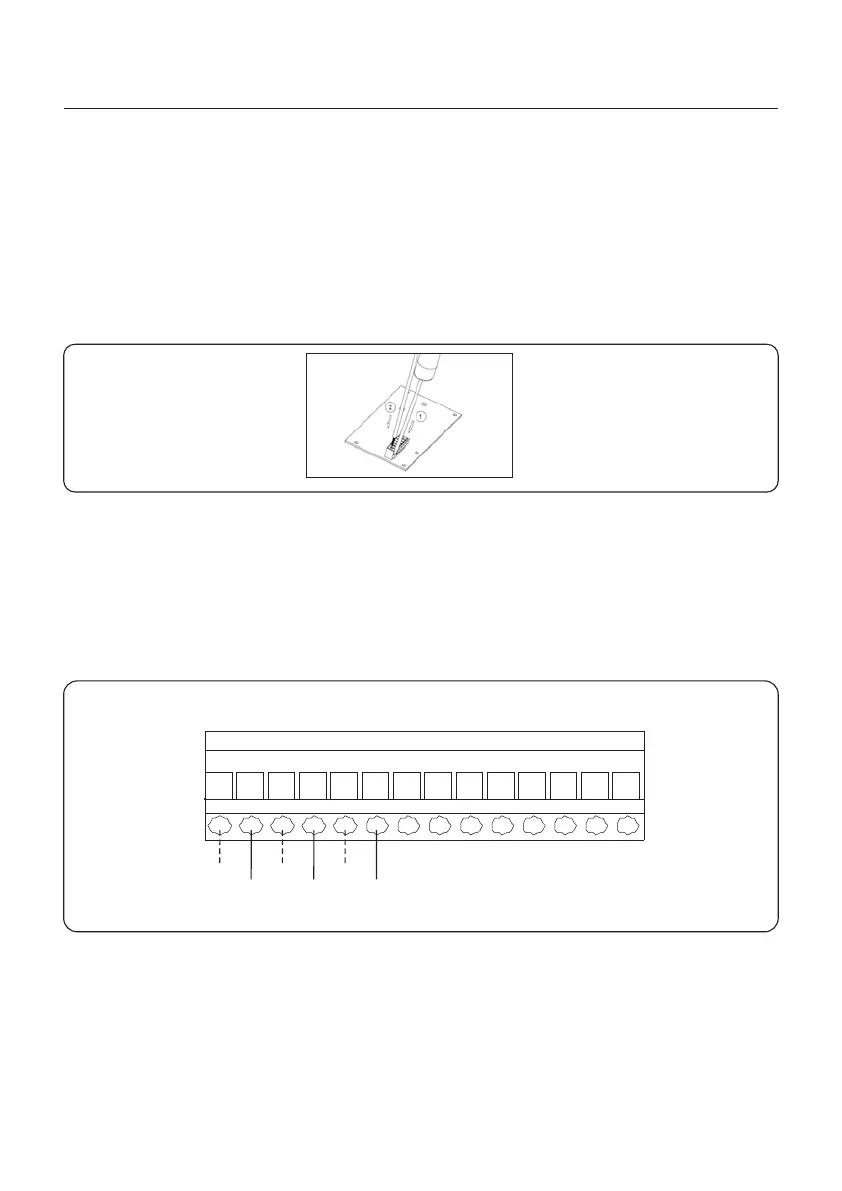

Terminal Block Connection Steps:
Step 1. Lead the wires through the hole in COM3 port (Hole Diameter: 2 mm)
Step 2. Strip the wires for 9mm length
Step 3. Use slot type screwdriver to press the block on the top
Step 4. Insert the exposed copper part of the cable into the terminal.
Step 5. Remove the screwdriver and the terminal will clamp down on the exposed copper part.
Step 6. Give the cable a gentle tug to ensure that it is firmly secured.
CT connection is necessary to realize the correct control logic of the hybrid inverter.
The CT provided in the inverter package has BLACK(S2) and WHITE(S1) wires. The BLACK
wire needs to connect to the Pin 2, Pin 4, Pin6 of the terminal block and the WHITE wire
needs to connect to the Pin 1, Pin3, Pin5 of the terminal block as in the following diagram.
16-Pin Communication
Terminal Block
3.10.8.1 HM Terminal Connection (CT Terminal Connection)
3.10.8 16-pin Communication Terminal Block
27
Figure 3.22
1 2
White
Black
3 4 5 6
