Check that the rotation sense of the actuator is correct. If it is necessary, modify the dam-

per rotation sense via the selector in the frontal of the actuator

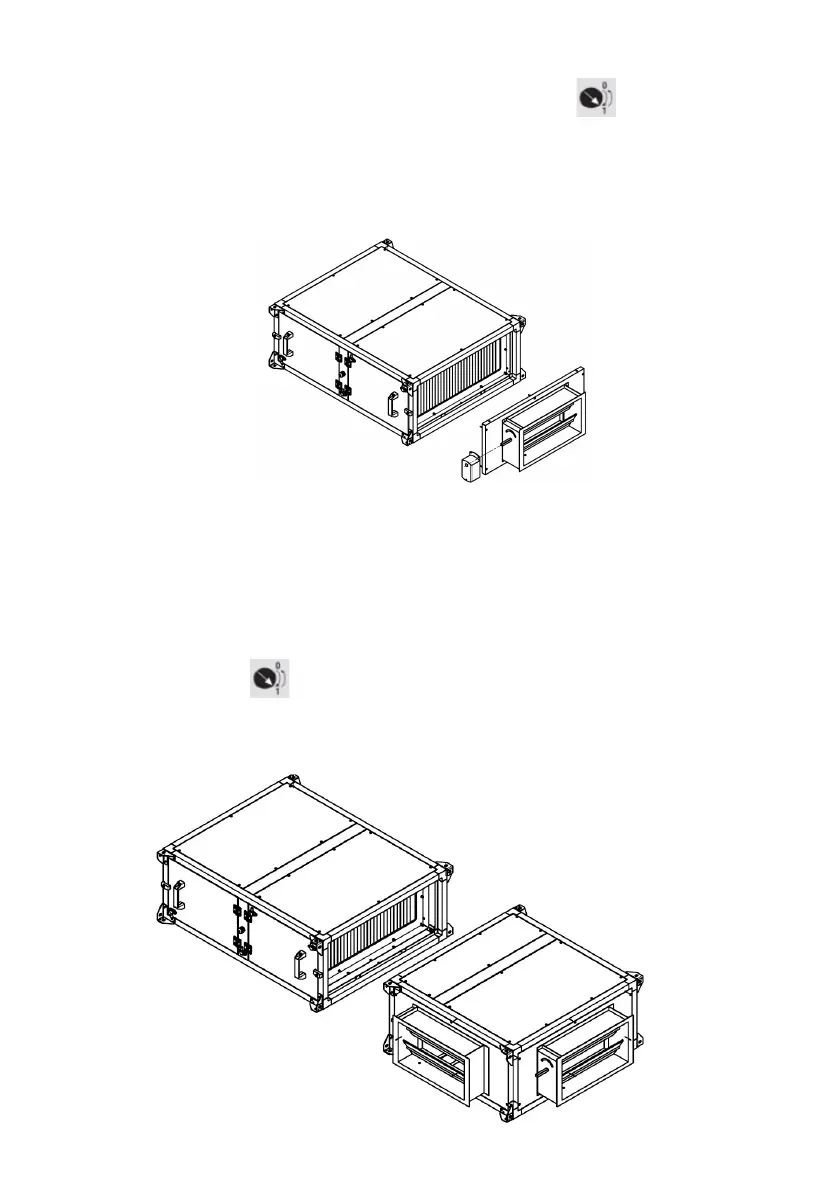

7.5.5. Installation with isolation damper

To realise the unit isolation of the ductwork, each time that the unit is stopped, it is possible

to install one isolation damper in the unit inlet:

Both the damper module and the corresponding servomotors are supplied as accessories.

The installer should mount the damper module, using the supplied hardware with this.

Mount the servomotor on the damper shaft.

After mounting the servomotor, make the electrical connection to the electrical cabinet

according the electrical diagram.

Check that the actuator sense of rotation is correct (once the unit is stopped the damper

must be closed). If it is necessary, modify the damper rotation sense via the selector in the

frontal of the actuator

• Air ( inlet section: >i^s sent with a ﬁxed position of the dampers. If not coincide with the

needs of the installation, change the frontal panel as shown.
