Ventilation units with heat recuperation

DUOVENT

®

MODULAR DV/RV

20

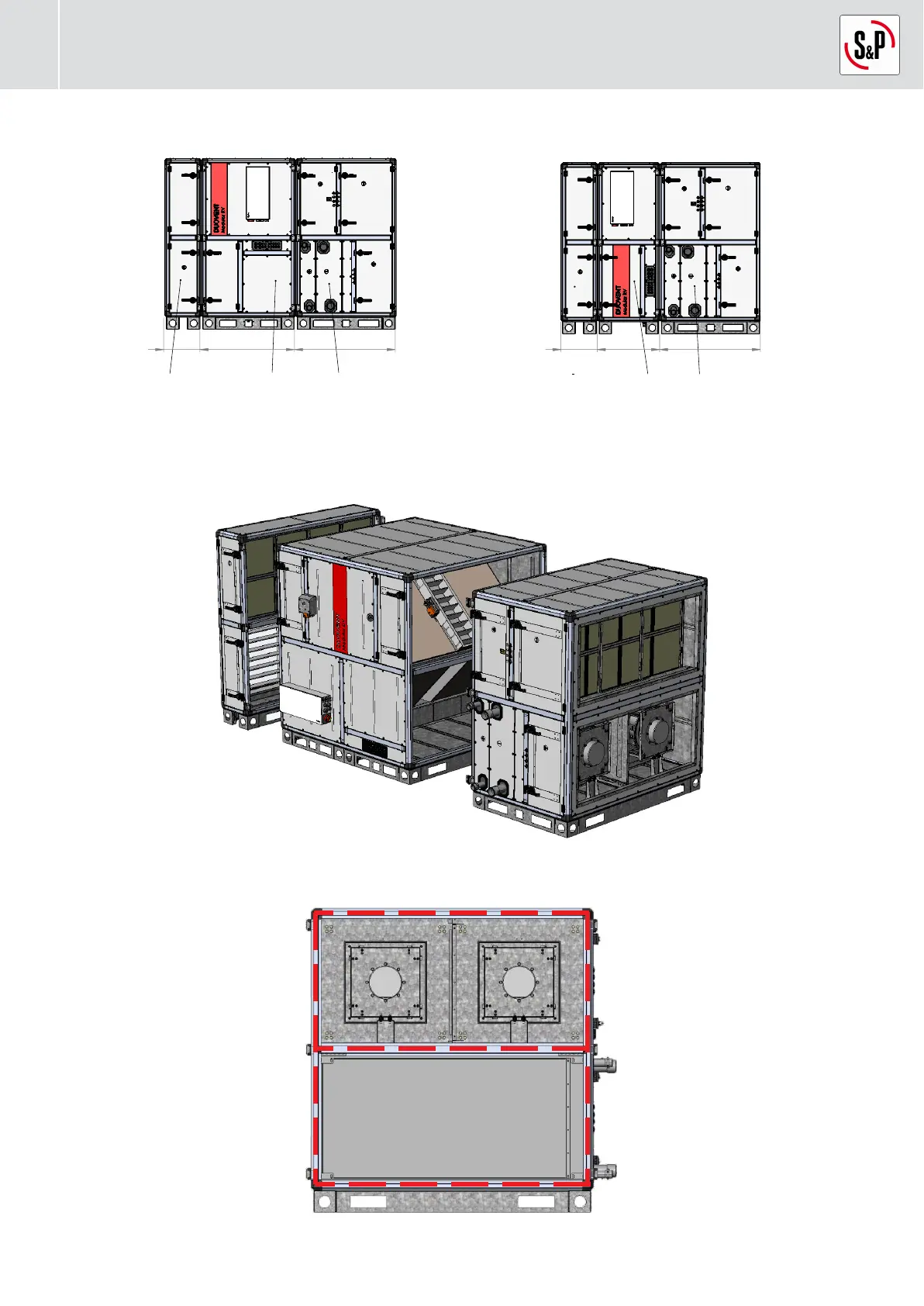

DUOVENT

®

MODULAR DV (position AV2)

with mixing flap MX or C

DUOVENT

®

MODULAR RV (position AV2)

without mixing flap MX or C

<--ETA

<--EHA

<--ETA

-->ODA

-->SUP

-->ODA

-->SUP

L1

L2

L3

L1

L2

L3

BLOCK No.1

BLOCK No.2 BLOCK No.3

BLOCK No.1 BLOCK No.2

BLOCK No.3

The illustration above applies to AV2 unit positions. Mirror images of these images apply to the positions of AV units - see. chap. 3.2.

The blocks must be placed at the destination and glued around the perimeter of the VITOLEN 9x5 mm seal (included in the delivery of the

unit) to the bearing surfaces of the corner aluminum frame profile.

Glue the seals to the red dotted areas of each block marked below.
