6

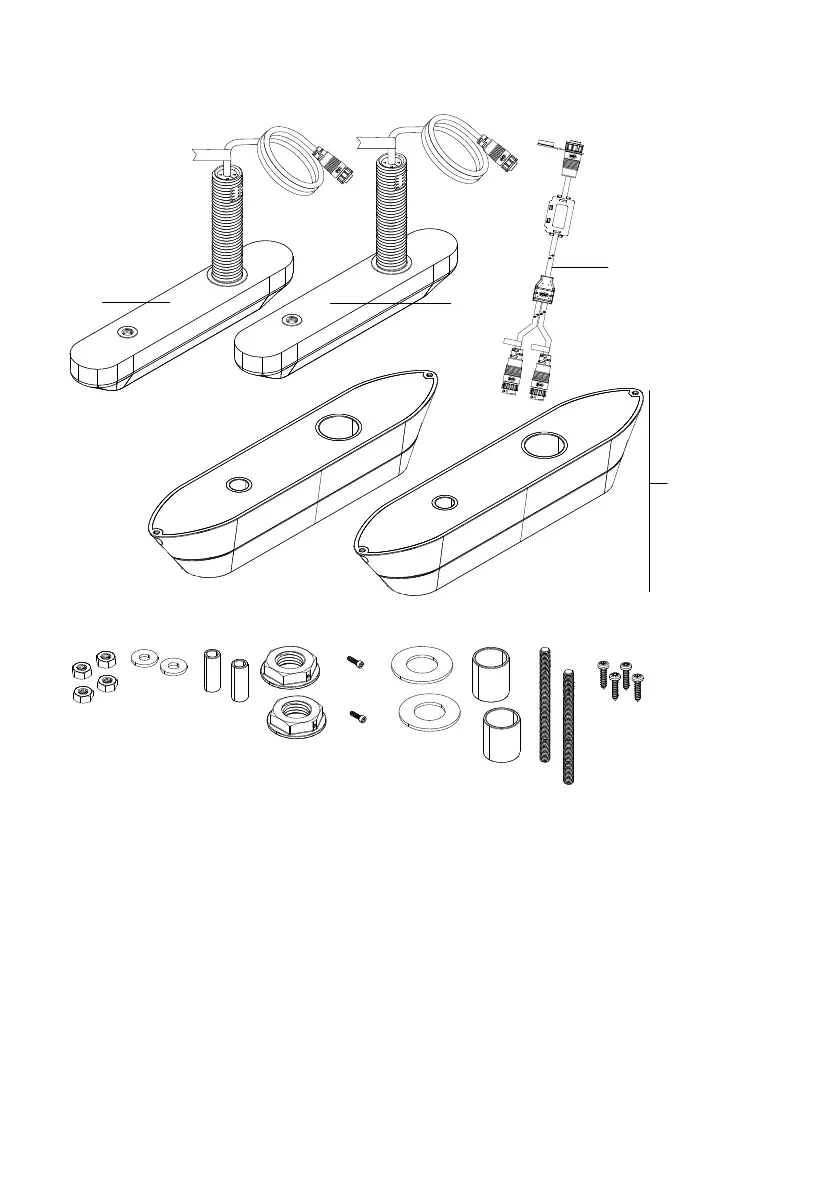

Active Imaging HD (Thru-Hull, Dual)

I J K L

D

F GE M

B

C

A

H

A 1x port transducer with 1.83 m (6 ft)

cable attached

H 2x stem nuts

B 1x starboard transducer with 1.83 m

(6 ft) cable attached

I 2x set screws for stem nuts

C 1x transducer Y-cable J 2x M30 nylon washers

D 2x fairing blocks K 2x large isolation sleeves

E 4x M10 nuts L 2x anti-rotation studs

F 2x M10 nylon washers M 4x self-tapping screws*

G 2x small isolation sleeves

*Used to mount the fairing blocks to timber temporarily for cutting.
