DIMENSIONS

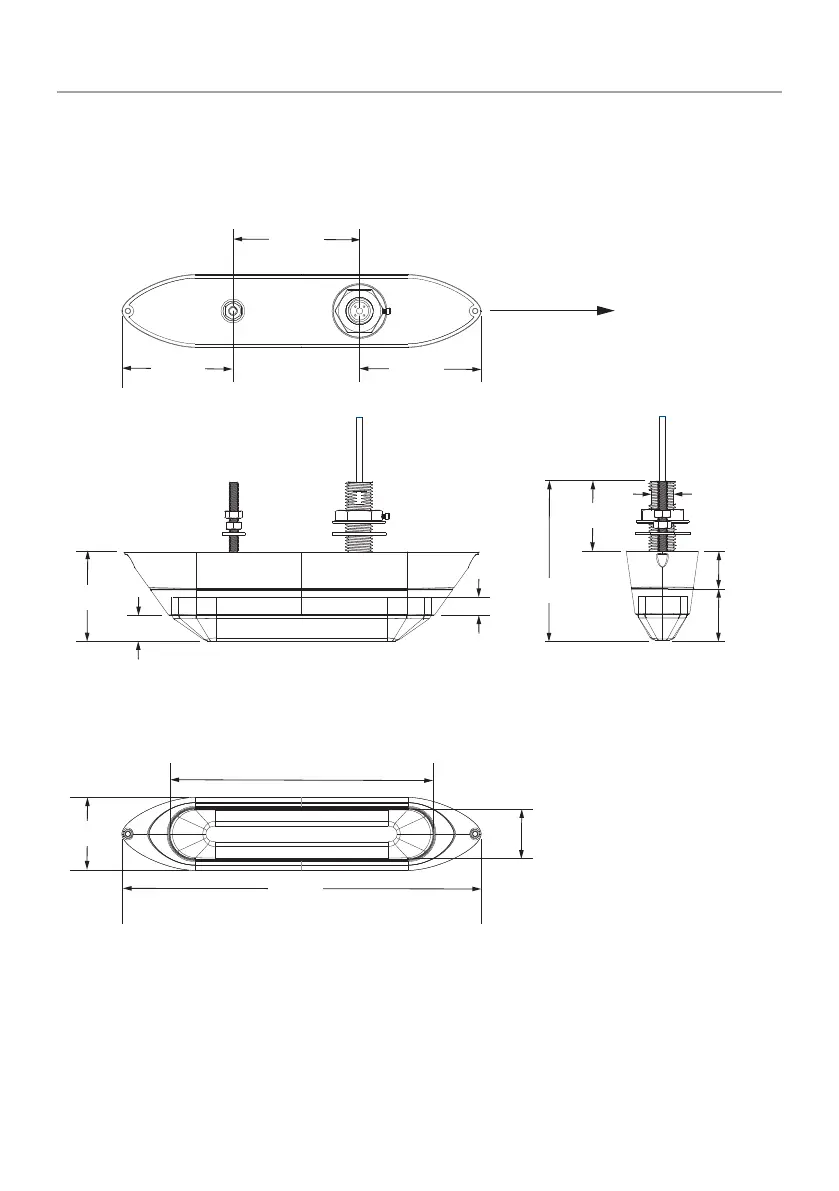

The diagram shows the Active Imaging HD (Thru-Hull) transducer tted to the uncut fairing block.

The hull of the boat is not shown.

The dimensions are the same for Active Imaging HD (Thru-Hull, Single) and Active Imaging HD (Thru-Hull,

Dual) systems.

54 mm

(2.13 in)

286.5 mm

(11.28 in)

391.37 mm

(15.41 in)

79.52 mm

(3.13 in)

57.04 mm

(2.25 in)

40.96 mm

(1.61 in)

24 mm

(0.94 in)

175 mm

(6.89 in)

77 mm

(3.03 in)

20 mm

(0.79 in)

28 mm

(1.10 in)

98 mm

(3.86 in)

120.94 mm

(4.76 in)

132.44 mm

(5.21 in)

138 mm

(5.43 in)

138 mm

(5.43 in)

BOW
