Page 8

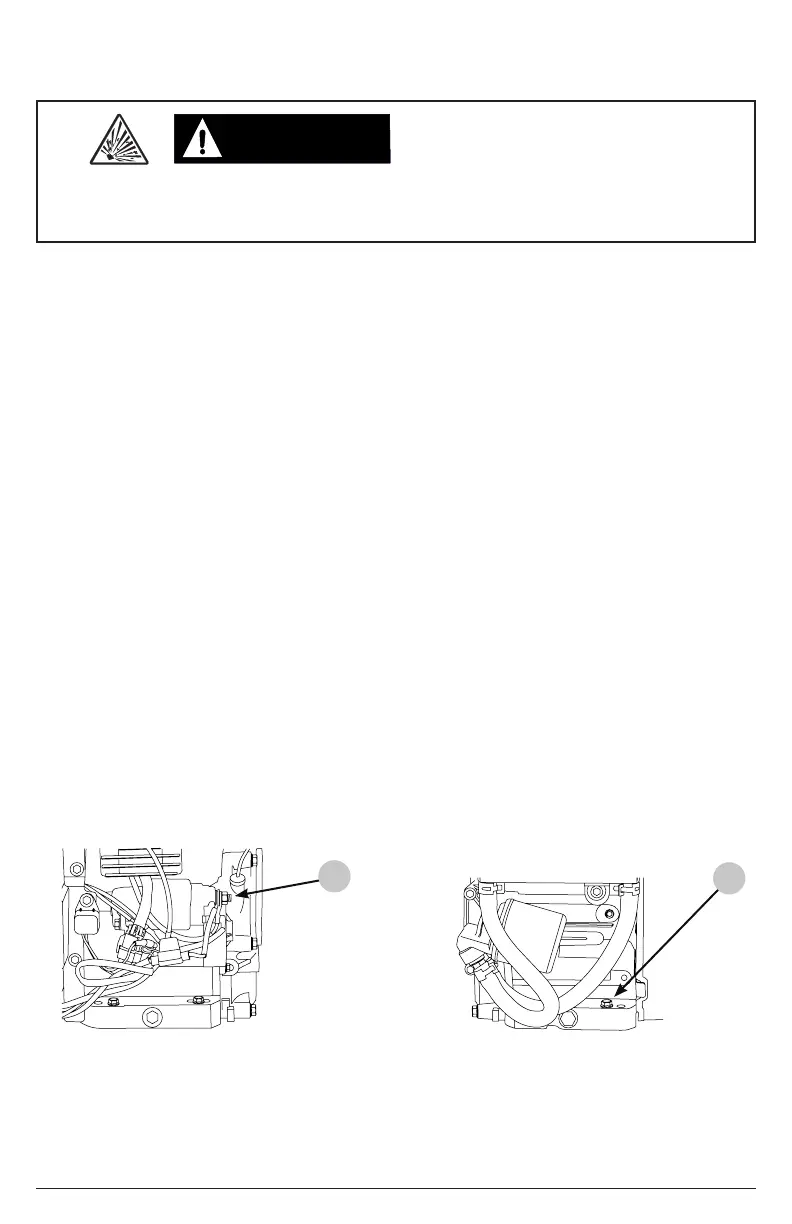

Connecting to Battery Source (if applicable)

A 12-volt battery (not included) may be required to start the engine. In order to connect

a battery to the pressure washer engine, battery cables (not provided) will need to be

connected to the engine starter and the pressure washer frame.

Connect a RED positive battery lead (not provided) to the battery terminal (A) on the starter

motor. Loosen the nut with a open-ended wrench. Remove the nut, place the ring terminal

of the battery cable onto the post and then thread on the nut. Tighten with the wrench.

Always remove the black, negative (-) battery cable rst and always connect the black,

negative (-) battery cable last. Failure to do this could cause metallic tools to short to the

frame possibly causing burns or the battery to explode.

BATTERY CONNECTIONS

WARNING:WARNING:

Connect a BLACK negative battery lead (not provided) to a suitable frame ground. The best

place to do this, is one of the engine mounting bolts (B). Using open-end wenches, loosen,

then remove the bolt. Run the bolt through the cable ring terminal, then back through the

engine mount. Thread on the nut and tighten to a range of 30 - 32 ft.lbs.

B

A

Note the following:

• Do not route the battery cables near any hot, moving, or rotating parts, or sharp edges.

• Route the battery cables away from other electrical wires or fuel lines.

• Protect the positive connection with a cover or insulation.

• Use cable grommets if the cables need to pass through metallic panels.

• The battery leads must be properly sized (gauge) for the cable length.

• For a twin-cylinder engine, use a battery with a minimum capacity of 45 AH (400

CCA). For a single-cylinder engine, use a battery with a minimum capacity of 24 AH

(175 CCA).
