-3-
1/
Mechanical
Housing Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 440mm (17.32”) [W] × 130mm (5.12”) [D]
× 44mm (1.75”) [H]
Receiver: 140mm (5.5”) [W] × 65mm (2.56”) [D] ×
18mm (0.71”) [H]
Weight
Transmitter: 1.62kg
Receiver: 246g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
72W
Operation
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

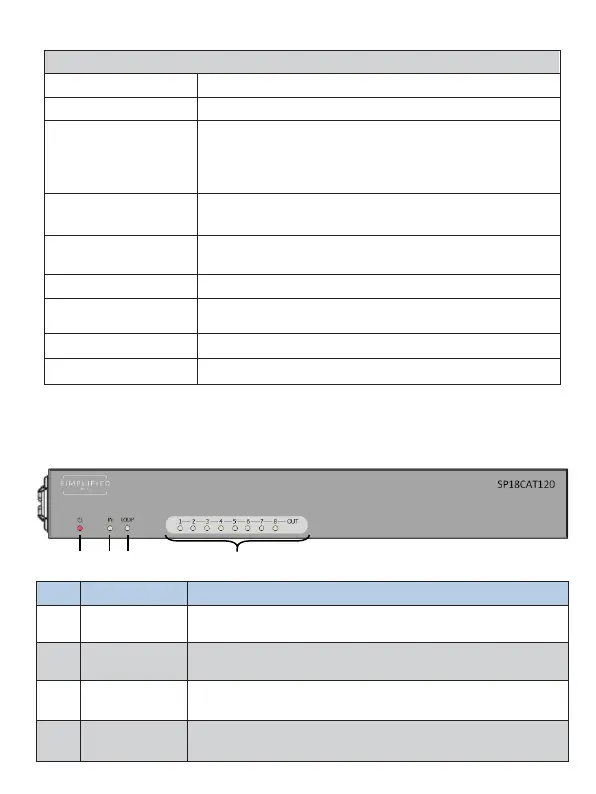

5. Operation Controls and Functions
5.1 Transmitter
❶ ❷ ❸ ❹
No. Name Function Description
1 POWER LED
When the SP18CAT120 is powered on, the red power LED
will be illuminated
2 IN LED
When the HDMI IN port is connected to an active source
device, the green LED will be illuminated
3
LOOP LED
When the HDMI LOOP OUT port connects an active display
device, the green LED will be illuminated
4
OUT (1~8) LED
When the
HDBT
OUTPUT port connects an HDBaseT RX,
the corresponding green OUT LED will be illuminated
