47
1.4 SHIPPING
“RS Mk II” thermal units are supplied in
four separate packages marked with the fol-
lowing labels:
PACK N. 1 (GAS BOILER ASSEMBLY)
Cast iron body strapped onto pallet, com-
plete with:
– n° 2 flanges with 2” collar for heating
system delivery and return
– n° 1 blind flange
– n° 1 flange with 3/4” connection for drain
cock
– n° 2 combustion chamber doors with cast
iron indicator door
– n° 2 sheaths for thermostats and thermo-
meter
– n° 1 water distributor located in the
boiler return manifold, supplied in two
different lengths:
L = 406 mm vers. “151÷194”
L = 851 mm vers. “215÷279”.
PACK N. 2 (CASING/FLUE GAS CHAMBER
ASSEMBLY)
Wooden crate containing:
– flue gas chamber to be assembled
– cardboard box containing skirt
– main burners, one for each element in the
body minus one
– burner manifold
– plastic bag containing:
•
n° 13 tornillos M5 x 8 screws for ancho
-
ring burners to manifold
•
n° 32 self-tapping 12E x 1/2” screws for
fastening various parts of the flue gas
chamber and skirt
•
n° 4 M8x30 screws with plate, flat wa-
sher and M8 nut for anchoring flue gas
chamber to boiler body
•
n° 1 3/4” drain cock with cap.
PACK N. 3 (GAS CONTROL PANEL/VALVE
ASSEMBLY)
Cardboard box containing:
– Gas assembly, comprising:
•
gas valve
•
minimum pressure valve
•
minimum gas pressure switch
•
pressure intake.
– Electric control panel, consisting of:
•
BRAHMA SM 191.1 control device
•
interference filter
•
ignition and detection electrodes
•
sockets for connection with control pa-
nel
•
anchoring screws
– Control panel consisting of:
•
two-step control thermostat
•
manually reset safety thermostat
•
thermometer
•
gas pressure indicator light
•
device shutdown indicator light
•
illuminated main switch
•
anchoring screws.
– Instruction booklet to be kept with care.
PACK N. 4 (DOCUMENT KIT)
Document bag containing:
•
technical data plate
• warranty certificate
• test certificate.
1
2
4
5

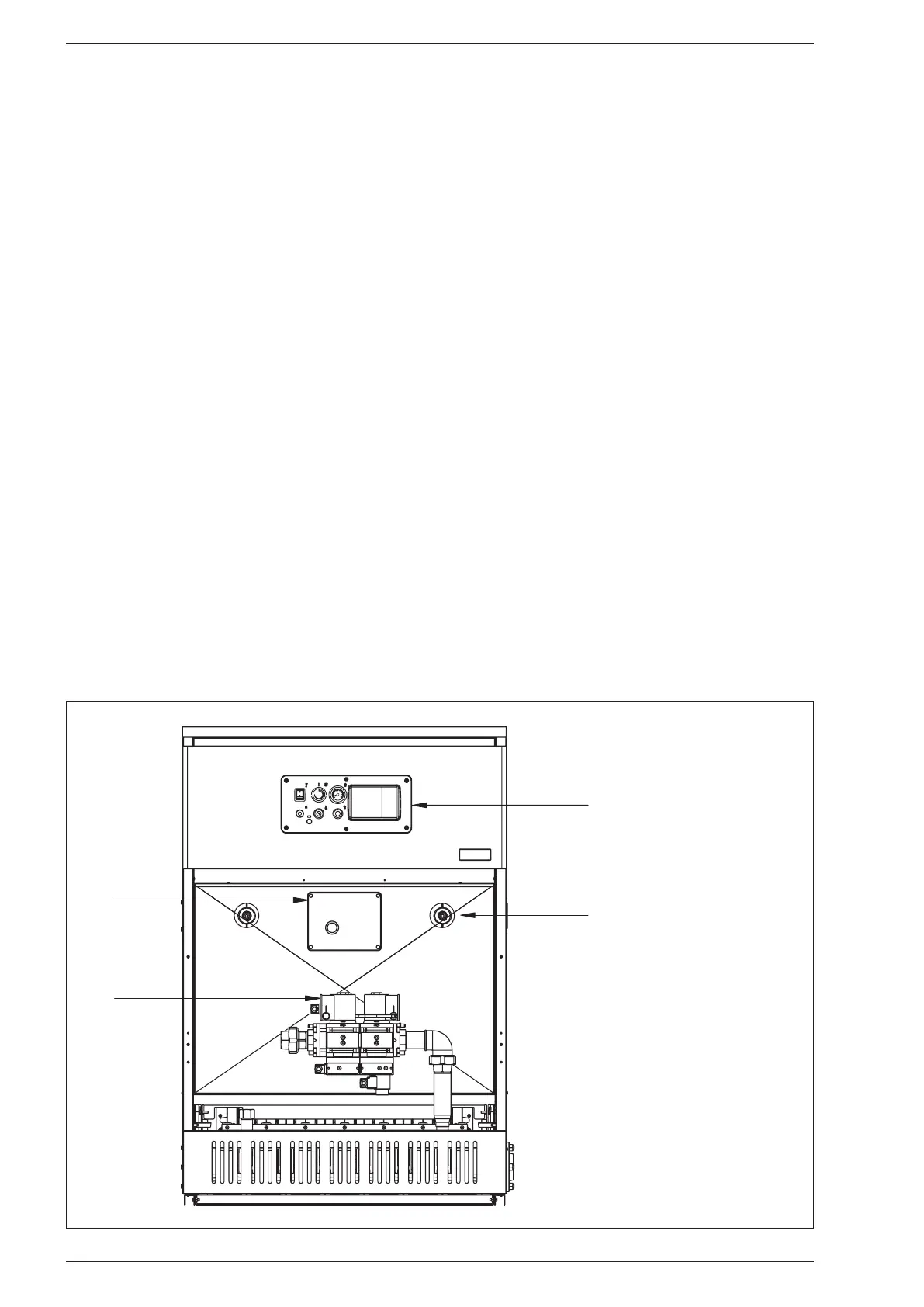

Fig. 2
KEY
1 Electrical control panel
2 Gas valve
4 Bulb housing sheath
5 Control panel
1.5 FRONT INSIDE VIEW
