1.1 INTRODUCTION
“RS Mk II” boilers are hot water generators
for mid to high power heating systems.
They consist of 7 to 14 cast iron elements
grouped in sets covering the thermal power
produced by 129,0 kW to 279.1 kW.
They can run on natural gas (methane) or
propane (G31).
Follow the instructions provided in this
manual to ensure correct installation and
perfect functioning of the boiler.
R Return from heating system 2 ”
M Delivery to heating system 2 ”
G Gas 1
1
/2 ”
S Boiler drain 3/4 ”
1 DESCRIPTION OF THE BOILER
L
P
D
G
S
C
M
R
880
485
1365
110
825
F
140

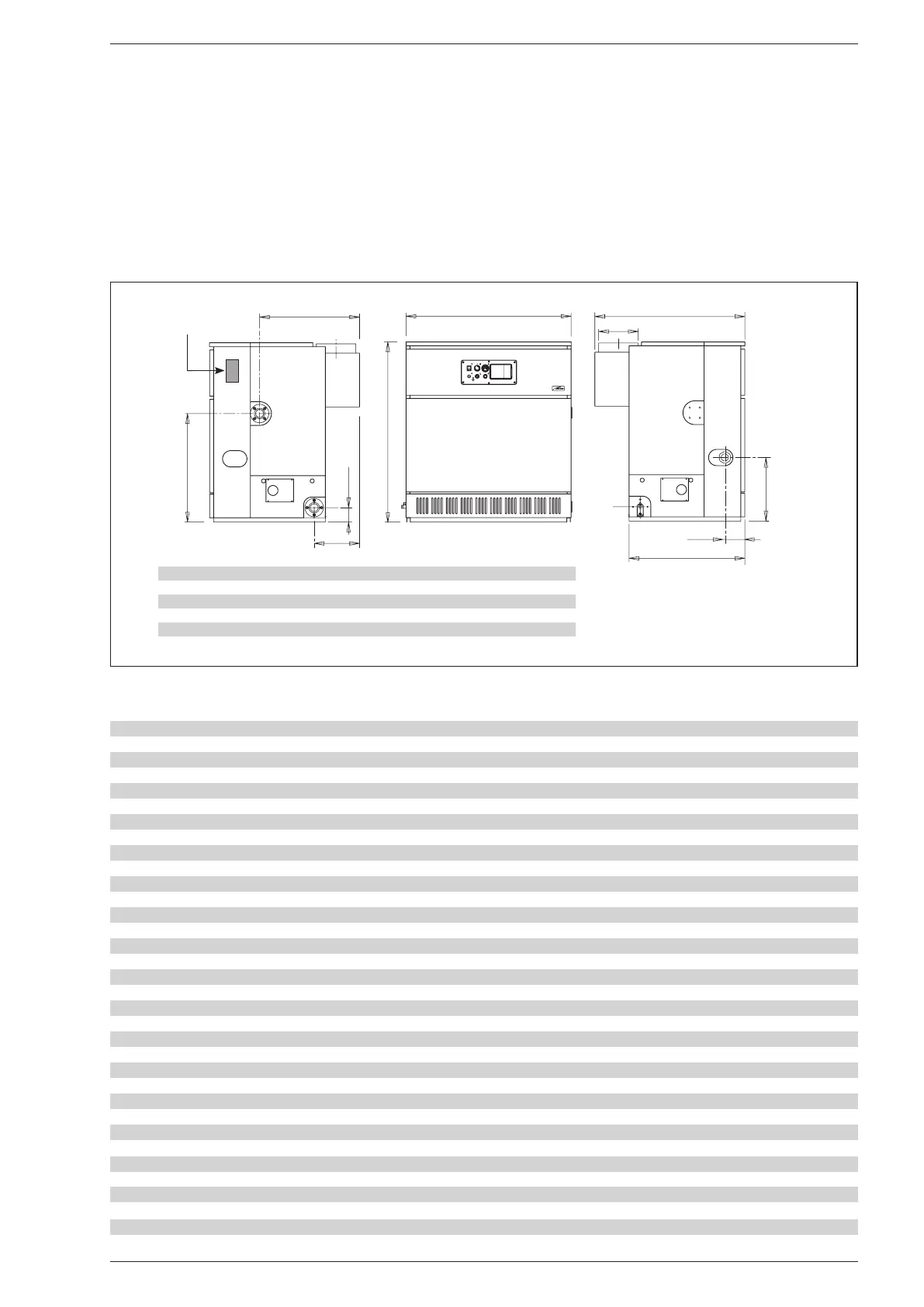

1.2 DIMENSIONS
129 151 172 194 215 237 258 279
L mm 810 920 1030 1145 1255 1370 1480 1580
P mm 1110 1110 1110 1140 1140 1190 1190 1190
C mm 730 730 730 760 760 810 810 810
F mm 315 315 315 345 345 395 395 395
D ø mm 250 250 250 300 300 350 350 350
Fig. 1
Position of
technical
data plate
1.3 TECHNICAL DATA
129 151 172 194 215 237 258 279
Thermal power
kW 129,0 150,6 172,2 193,7 215,2 236,5 257,8 279,1
Thermal capacity
kW 145,9 170,0 194,2 218,2 242,1 266,0 290,0 313,6
Electric power absorbed
W 65
Max. useful yield (80-60°C)
% 89,1
Useful yield at 30% of the load (47°C) % 90,4
Degree of electrical insulation
IP 20
Heating elements
n° 7 8 9 10 11 12 13 14
Water content
l 67,5 77,0 86,5 96,0 105,5 115,0 124,5 134,0
Max. operating pressure
bar 5
Maximum temperature
°C 95
CE certification
1312CN5717
C
ategory
II2H3P
T
ype
B11
NOx emission class
2
Weight
kg 542 612 682 757 829 904 974 1044
Main nozzles
Quantity n° 6 7 8 9 10 11 12 13
Methane gas (G20) ø mm 4,30 4,30 4,30 4,30 4,30 4,30 4,30 4,30
Propane (G31) ø mm 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50
Gas rate of flow
Methane gas (G20) m
3
st/h 15,44 17,99 20,55 23,10 25,63 28,16 30,70 33,20
Propane (G31) kg/h 11,32 13,19 15,07 16,93 18,79 20,64 22,50 24,34
Gas pressure at burners
Methane gas (G20) mbar 9,7 9,7 9,7 9,7 9,7 9,7 9,7 9,7
Propane (G31) mbar 35 35 35 35 35 35 35 35
Gas supply pressure
Methane gas (G20) mbar 20 20 20 20 20 20 20 20
Propane (G31) mbar 37 37 37 37 37 37 37 37
