11

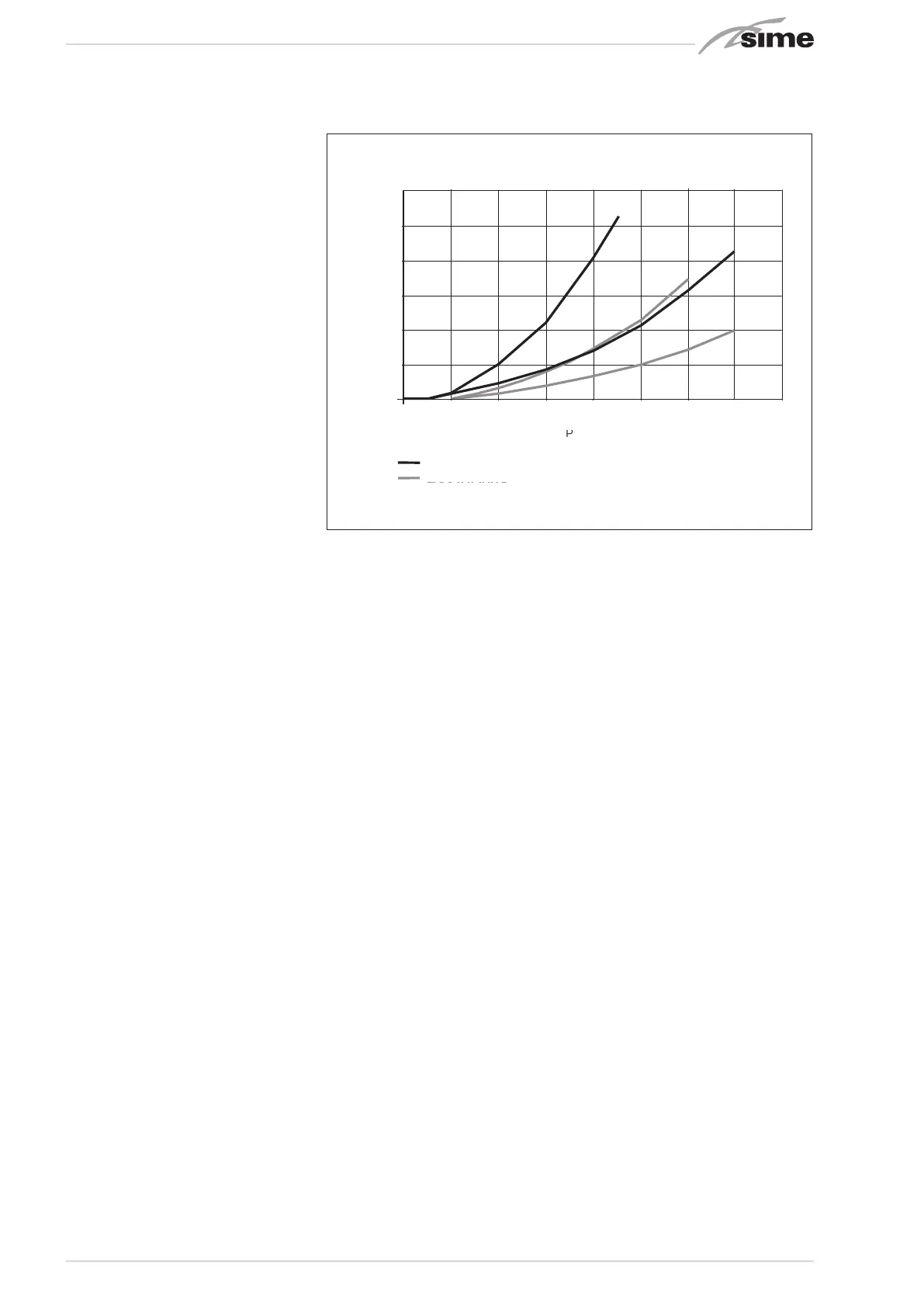

2.8 LOAD LOSS HYDRAULIC
SEPARATOR (fig. 10)
Hydraulic separator load losses are indi-
cated in the diagram in figure 10.
2.9 ELECTRICAL
CONNECTIONS
Each module is supplied with a power cord
which, if replacement is required, it must
be replaced with one of similar type and
dimensions. 230V – 50 Hz single phase
voltage is required using a fuse protected
main switch with at least 3 mm. between
contacts.
Observe the L – N polarity and ground-
ing connection. Each generator should be
fused at 3 A.
NOTE: Sime declines all responsibility
for injury or damage to persons, animals
or property resulting from the failure to
provide for proper earthing of the appli-
ance.
200
250
300
2
PORTATA (m
3
/h)
46810 12
0
50
100
150
˘p (mbar)
14
60 BFR - HE 50 R
HE 35 R
15
100 BFR - HE 110 R
LATO CALDAIA
LATO IMPIANTO
60 BFR - HE 50 R
HE 35 R
100 BFR - HE 110 R
200
250
300
2
PORTATA (m
3
/h)
46810 12
0
50
100
150
˘p (mbar)
14
70 R ErP
50 R ErP
35 R ErP
15
110 R ErP
92.5 R
LATO CALDAIA
LATO IMPIANTO
70 R ErP
50 R ErP
35 R ErP
110 R ErP
92.5 R
Fig. 10
CAPACITY (m
3
/h)
BOILER SIDE
SIDE HEATING SYSTEM
