ENGLISH

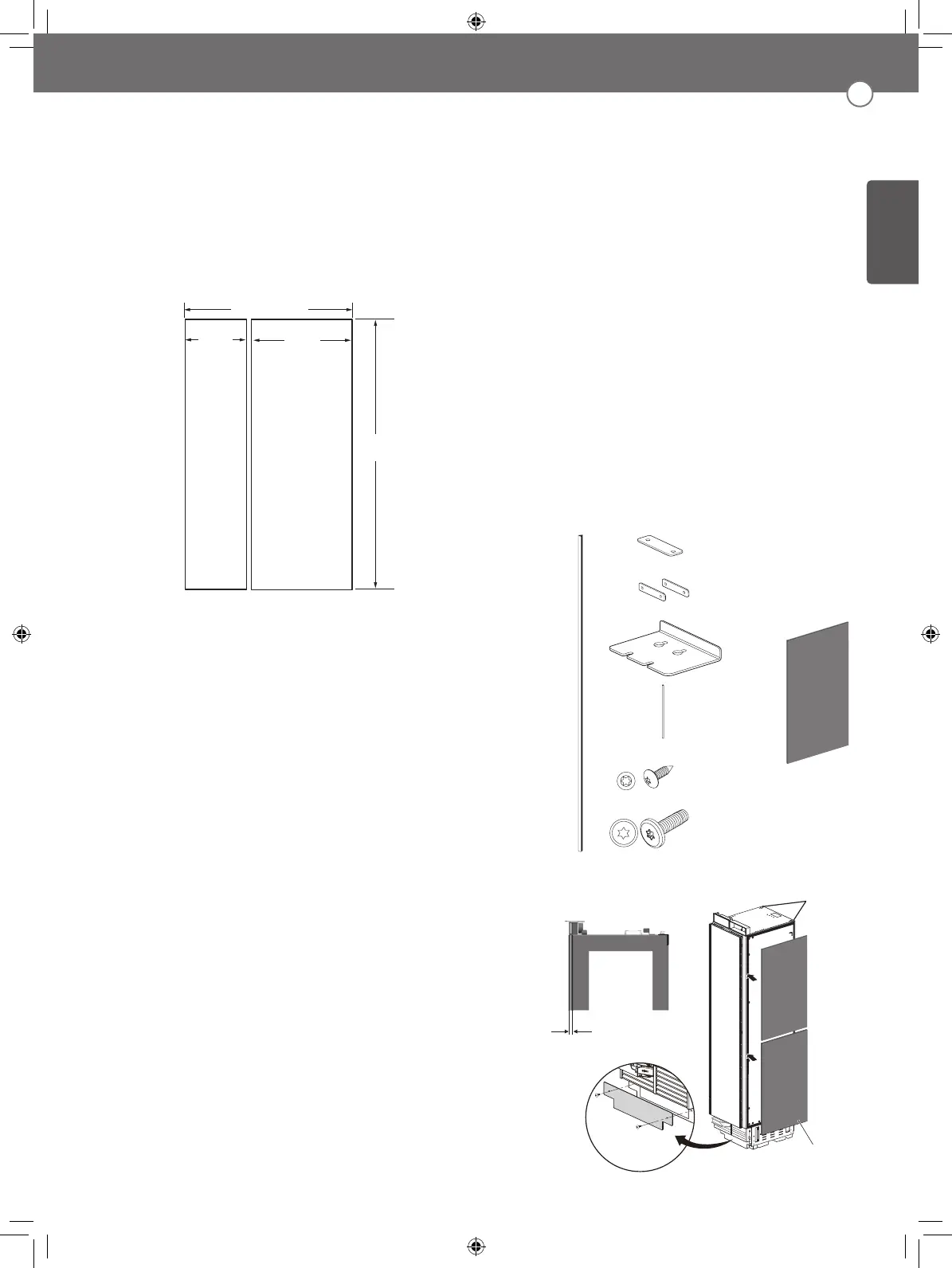

Side-by-Side Flush Installation
FLUSH INSTALLATION CLEARANCES
In a side-by-side flush installation, a unification kit
must be used to seal the appliances together.
A unification kit is included with all column freezers.
The kit contains a sealing mat which helps prevent
condensation from forming between the two
appliances.
1. Unpack the unification kit and make sure no
accessories are missing.
2. Place appliances near to each other in the intended
installation configuration.
3. Remove the base panels from both appliances.
4. Attach the included sealing mat on the side of the
freezer that faces the refrigerator. (The sealing mat
should be between the two appliances after they
are connected.)
Install the gray sealing mat over the preinstalled
black sealing strips so that the edge of the mat is
flush with the back edge of the freezer. This will
leave a small space free at the front edge to fit the
filler strip between the two appliances.
Additional unification kits can be purchased from
Signature Kitchen Suite (part number SKSFJ800P).
sealing mat
Space for the ller
strip
sealing strip
(both sides)
1X
2X
1X
1X
1X
2X
6X
4X4X15
M6X20
NOTES
When installing 2 side-by-side
products with one left and one
right door swing, 1/16" (2 mm)
clearance is required between
the products. This applies to
both new installations and retrofit
installations.
47 3/4" (1213 mm)
(756 mm)
29 3/4"
DUAL 18" AND 30" COLUMN
(See custom panel pages for more configurations.)
Door Panel Door Panel
79 7/8"
(2029 mm)
(451 mm)
17 3/4"
NOTE: When installing products with a partition between them, follow the standard installation. The
minimum size of the partition is 6" (15.2 cm) to avoid interference between the doors.
NOTE:
When installing 2 side-by-side products with
one left and one right door swing, 1/16" (2 mm)
clearance is required between the products.
This applies to both new installations and retrofit
installations.
