6. Unscrew and remove the vent cover assembly at the bottom of the appliance.
(For wine columns, the vent cover assembly was removed in step 2.)
7.

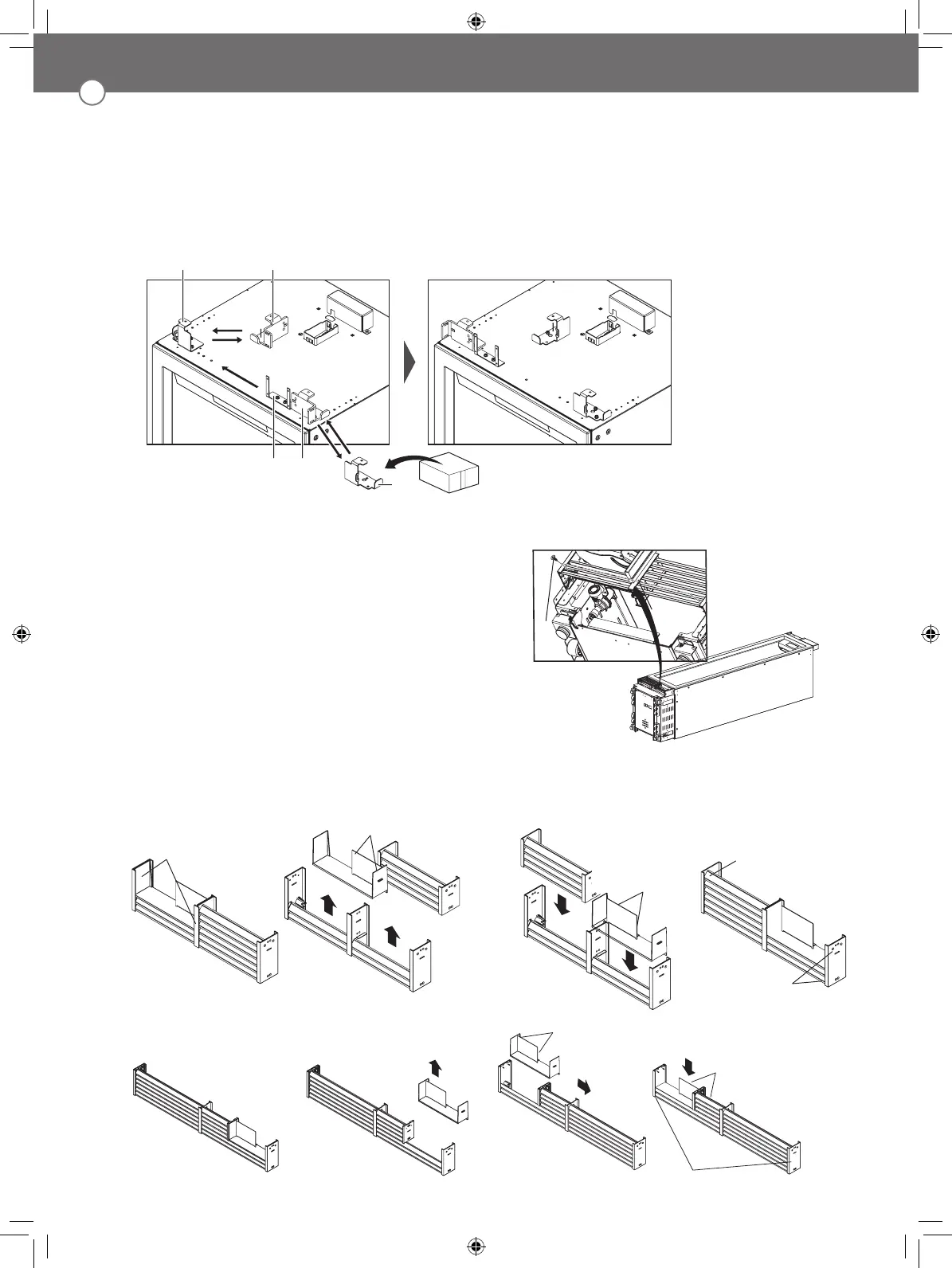

Follow the diagrams below to disassemble and
reassemble the vent grille. On refrigerator/freezer columns, screw the vent cover assembly back
onto the appliance.(On wine columns, the vent cover assembly is reinstalled in step 13.)
1
2.
Remove screws (4)
Remove screws (2)
Insert screws (2)
Insert screws (2)
Insert screws (2)
1
2.
Remove screws (4)
Remove screws (2)
Insert screws (2)
Insert screws (2)
Insert screws (2)
Remove screws (2)
Remove screws (4)
Remove screws(2) Insert screws (2)
Insert screws (2)
Remove screws (2)
Remove screws (2)
Insert screws (2)
Insert screws (4)
1.
2.
24"/30" Unit
18" Unit
5b. (For wine columns only)
Remove the mounting bolts in the center front cover bracket (1) on the top of the appliance.
Reinstall the bracket on the opposite side. Remove the mounting bolts in the left front cover
bracket (2) and the upper hinge socket (3), swap their positions, and reinstall the bolts.
Remove the mounting bolts in the upper right hinge socket (4) and replace it with the front
cover bracket (5) provided in the installation accessories.
2
1 4
5
3
