SKSCF2401P – 24" INTEGRATED FREEZER COLUMN
SKSCR2401P – 24" INTEGRATED REFRIGERATOR COLUMN
SKSCW241RP – 24" INTEGRATED WINE COLUMN
NOTE
Freezer/Wine / Refrigerator column can be installed ush or proud
Flush – With a 25" (635 mm) cutout depth, the front face of the freezer/wine column ts ush with 25"
(635 mm) depth adjacent cabinets.
Proud – With a 24" (610 mm) depth cutout, the front face of the freezer/wine column extends
approximately 3/4" (19 mm) beyond 24" (610 mm) depth adjacent cabinets.
• A minimum 4" (102 mm) nished return that matches the cabinet e terior is recommended on all
sides and the top of the cutout opening. The shaded area will be visible after installation.
ELECTRICAL
A 115V, 60Hz, 15 or 20 amp power supply is required. An individual, properly grounded branch
circuit or circuit breaker is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall. Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
WATER LINE
A cold water supply is required for automatic icemaker operation.
The water pressure must be between 20 and 120 psi.
Tubing should be long enough to extend to the front of the freezer. Allow enough tubing to
accommodate a bend leading into the water line connection.
Water line can enter an opening through the oor or back wall
Install a shut-o valve between the icemaker water valve and the cold water supply in the home.

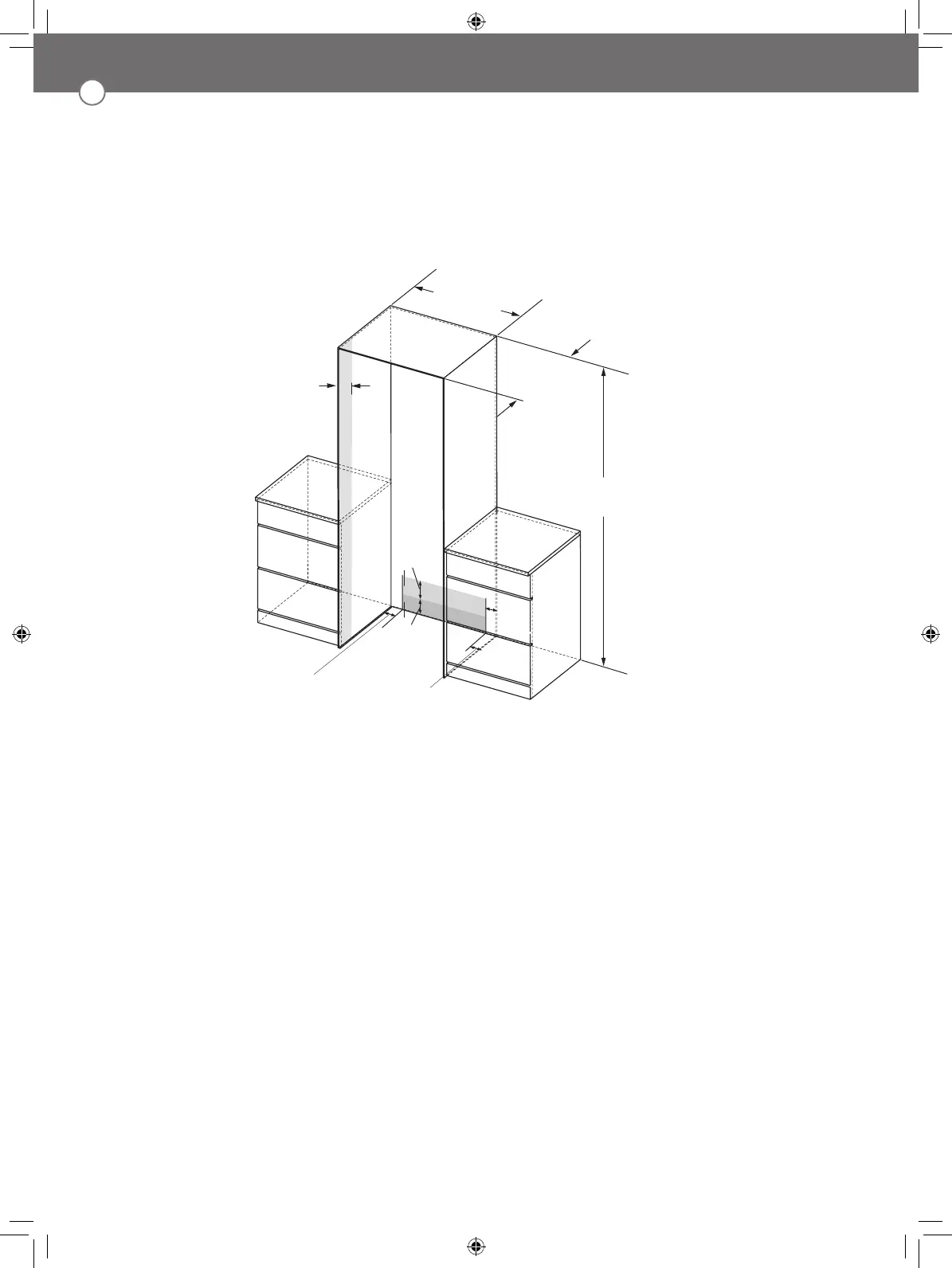

CUTOUT DIMENSIONS – FLUSH OR PROUD INSTALLATION, SINGLE COLUMN
24" (610 mm)
finished width
84"
(2134 mm)
5"
(127 mm)
electrical
location
4"
(102 mm)
water
location
1 3/8" (35mm)
Electrical location
Is Not available
1 3/8
" (35mm)
Electrical location
Is Not available
4"
(102 mm)
finished
return*
25"
(635 mm)
min. depth
flush install
24"
(610 mm)
min. depth
proud install
