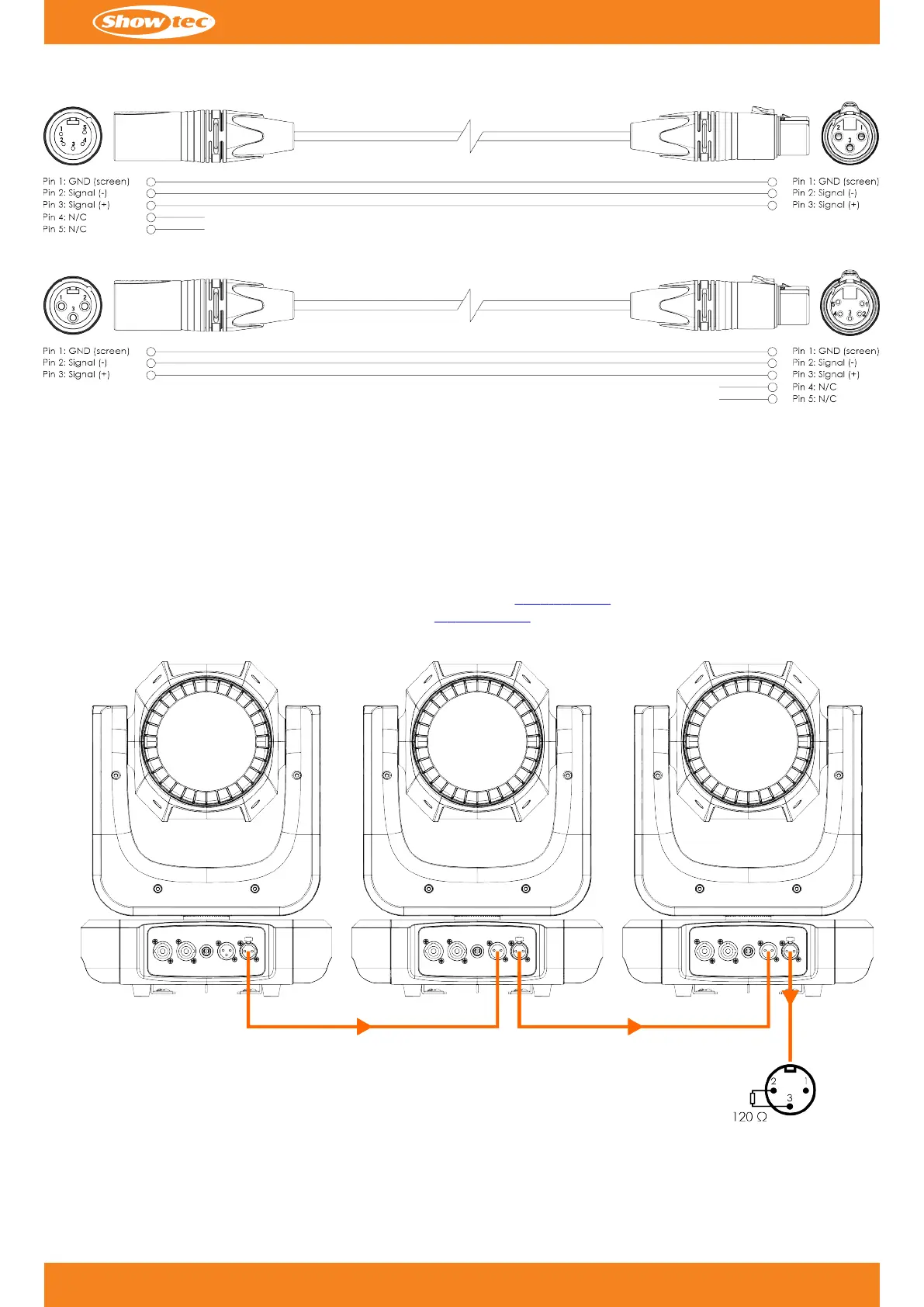

Figure 10
5.3.3. Master/Slave Setup
The Xpression 2000B - Beam supports master/slave control mode. To connect multiple devices in a master/slave
setup, follow the steps below:
01) Connect the DMX OUT connector of the 1
st
device to the DMX IN connector of the 2
nd
device with a 3-pin01)
DMX cable.
02) Repeat step 1 to connect all devices in a daisy-chain.02)
03) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data link.03)
04) Set the 1
st
device on the data link as a master device (see 6.6.2.5. Slave on page 33).04)
05) Set the remaining devices as slave devices (see 6.6.2.5. Slave on page 33).05)
Figure 11
19
c
Product code: 47020
Xpression 2000B - Beam
