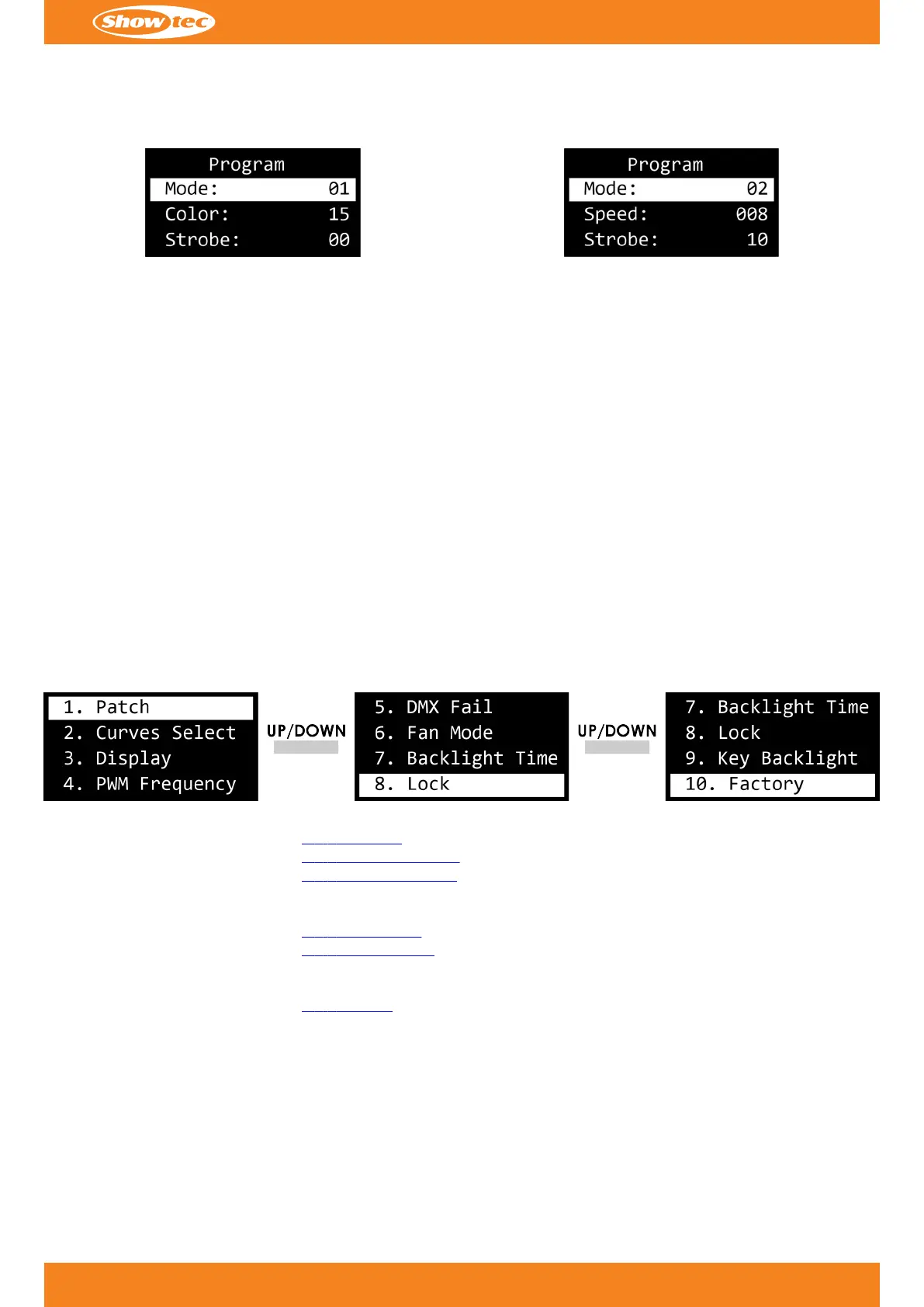

6.6.5. Program

In this menu you can select a preset color or a built-in program.

Mode 01 Mode 02–17

01) Press the UP/DOWN buttons to select one of the following options:01)

• Mode: Select static colors mode (Mode 01) or one of the 16 built-in chases (Mode 02–17)•

• Color: Select one of the 15 preset colors (available for Mode 01 only). The selection•

range is 1–15

• Speed: Adjust the speed of the built-in program (available for Mode 02–17). The•

adjustment range is 1–99, from slow to fast

• Strobe: Add strobe effect (Mode 01–17). The adjustment range is 0–99, from off to high•

frequency

02) Press the SET button to confirm the selection.02)

6.6.6. Slave

In this menu you can set the device as a slave device in a master/slave setup.

01) Press the UP/DOWN buttons to select one of the 2 options:01)

• Yes: The device is set as a slave device•

• No: The device is set as the master device•

02) Press the SET button to confirm the selection.02)

6.6.7.

Settings

In this menu you can adjust the settings of the device.

01) Press the UP/DOWN buttons to select one of the following options:01)

• Patch (see 6.6.7.1. Patch)•

• Curves Select (see 6.6.7.2. Curves Select)•

• Display (see 6.6.7.3. Display Invert)•

• PWM Frequency: Set the PWM Frequency (Pulse Width Modulation): 12K (12000Hz), 6K (6000Hz), 3K•

(3000Hz), 1K (1000Hz)

• DMX Fail (see 6.6.7.4. DMX Fail)•

• Fan Mode (see 6.6.7.5. Fan Mode)•

• Backlight Time: Set whether the backlight of the display remains on (On) or turns off after the•

selected amount of time: 5 s, 10 s, 20 s, or 30 s

• Lock (see 6.6.7.6. Lock)•

• Key Backlight: Turn the backlight of the 4 touch buttons (MODE, SET, UP, DOWN) on (On) or off•

(Off)

• Factory: Restore the default factory settings of the device (Yes/No)•

02) Press the SET button to confirm the selection.02)

Product code: 40306

Controller for Titan Strobe FLEX FX
