4.4.2. Installation on a Flat Surface

You can mount the controller on a flat surface, using the 4 mounting holes (02).

You need the following:

• a drill•

• a drill bit (for wood or concrete), 6–7 mm long•

• 4 anchors (if applicable)•

• 4 screws•

Notes:

• Make sure that the drilling location for the mounting holes is free of obstructions such as pipes, ducts, or•

wires.

• Do not drill into mortar joints. Screws installed in mortar joints cannot safely support the weight of the•

device.

To mount the controller on a flat surface follow the steps below:

01) Hold the controller against the flat surface and mark the position of the 4 mounting holes (02) on the flat01)

surface.

02) Drill holes at the 4 marked locations.02)

03) Insert anchors into the drilled holes, if applicable.03)

04) Insert and tighten the 4 screws through the 4 mounting holes (02) into the 4 drilled holes to fasten the04)

controller to the flat surface.

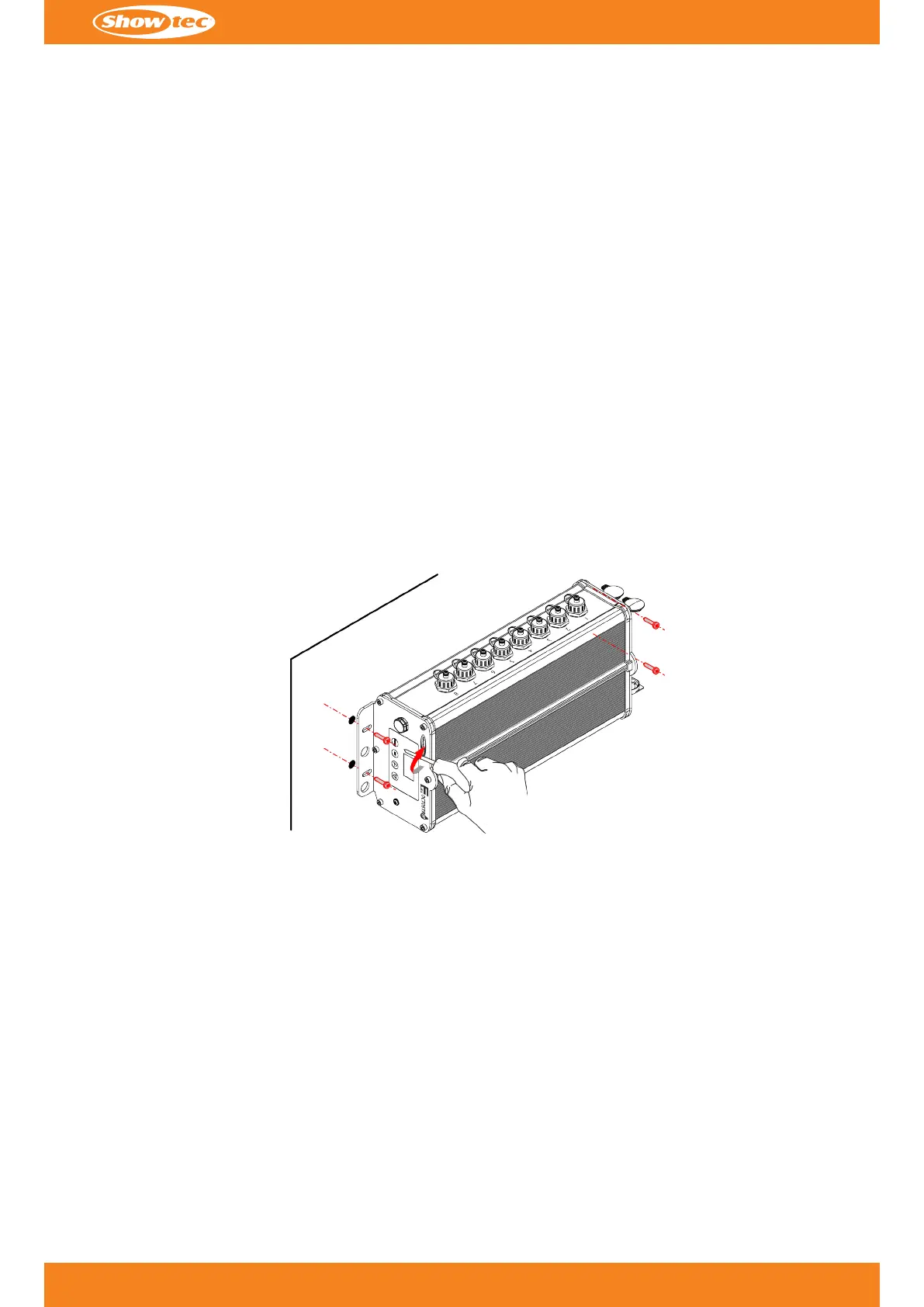

Figure 6

Product code: 40306

Controller for Titan Strobe FLEX FX
