Order code: 40101
Polar 340 WashFX IP65 Moving Head
One Polar (Manual)
01) Fasten the effect light to a firm trussing or mount it on flat surface. Leave at least 1,3 m on all sides
for air circulation.
02) Secure the device with a safety cable (order code 70454 / 70456).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Polar is not connected with a DMX cable, it functions as a stand-alone device.
05) Please see 6. Manual on pages 32–34 for more information.
Multiple Polars (Master/Slave Control)
01) Fasten the effect light onto firm trussing or mount it on flat surface. Leave at least 1,3 m on all sides for
air circulation.
02) Secure the device with a safety cable (order code 70454 / 70456).
03) Use a 5-pin DMX cable to connect the Polar to other devices.
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
4. N/C
5. N/C
04) Link the units as shown in Fig. 07. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX cable. Repeat this process to link the rest of the units. The first connected device
will be automatically recognized as master device. To upload custom programs from the master
device to the slave devices, see 4. Option on page 27–31.
05) Supply electric power: Plug electric mains power cords into each unit's power IN socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.

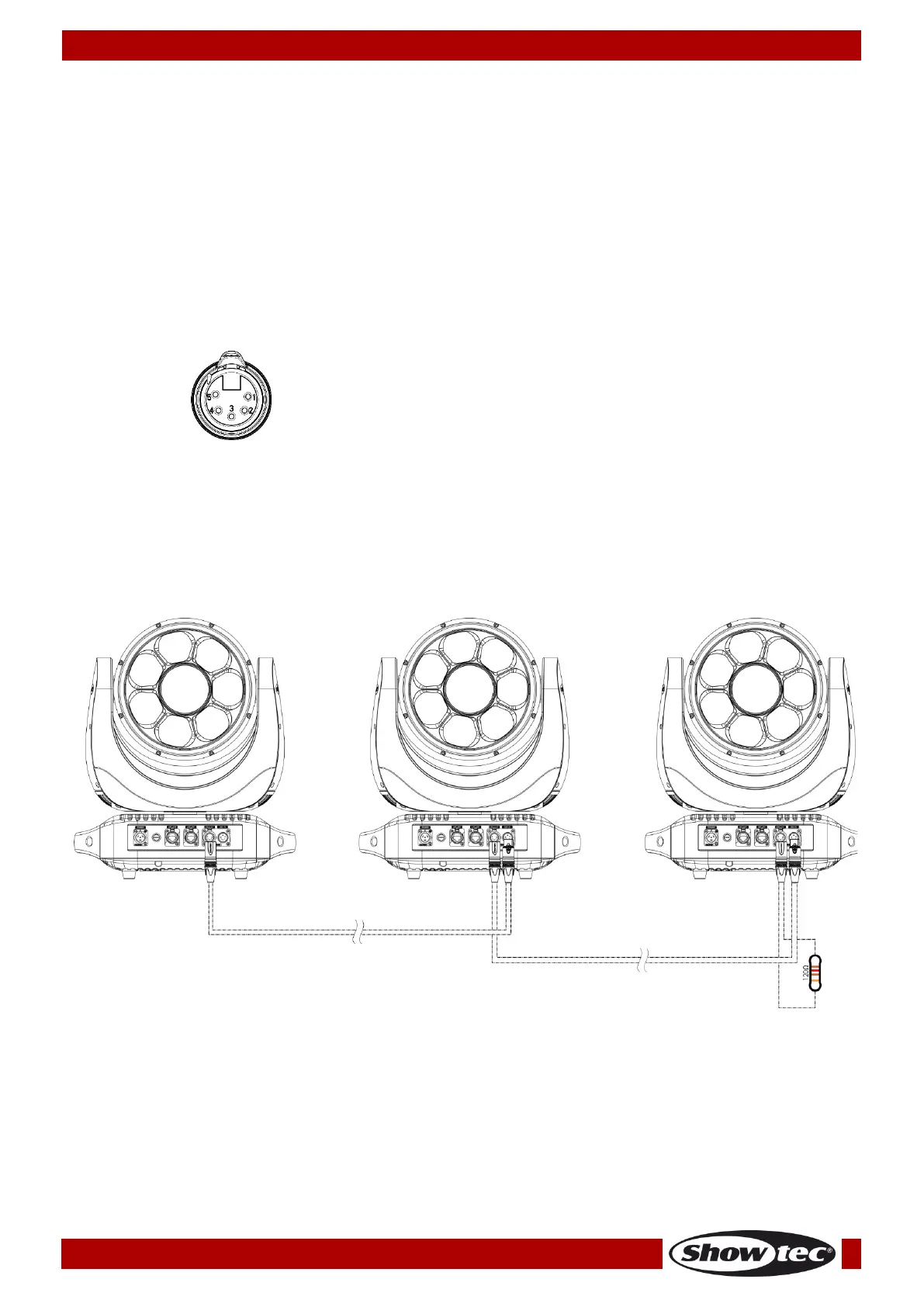

Fig. 07
Note: Link all cables before connecting electric power
