14
Ordercode: 40032
Phantom 180 Wash

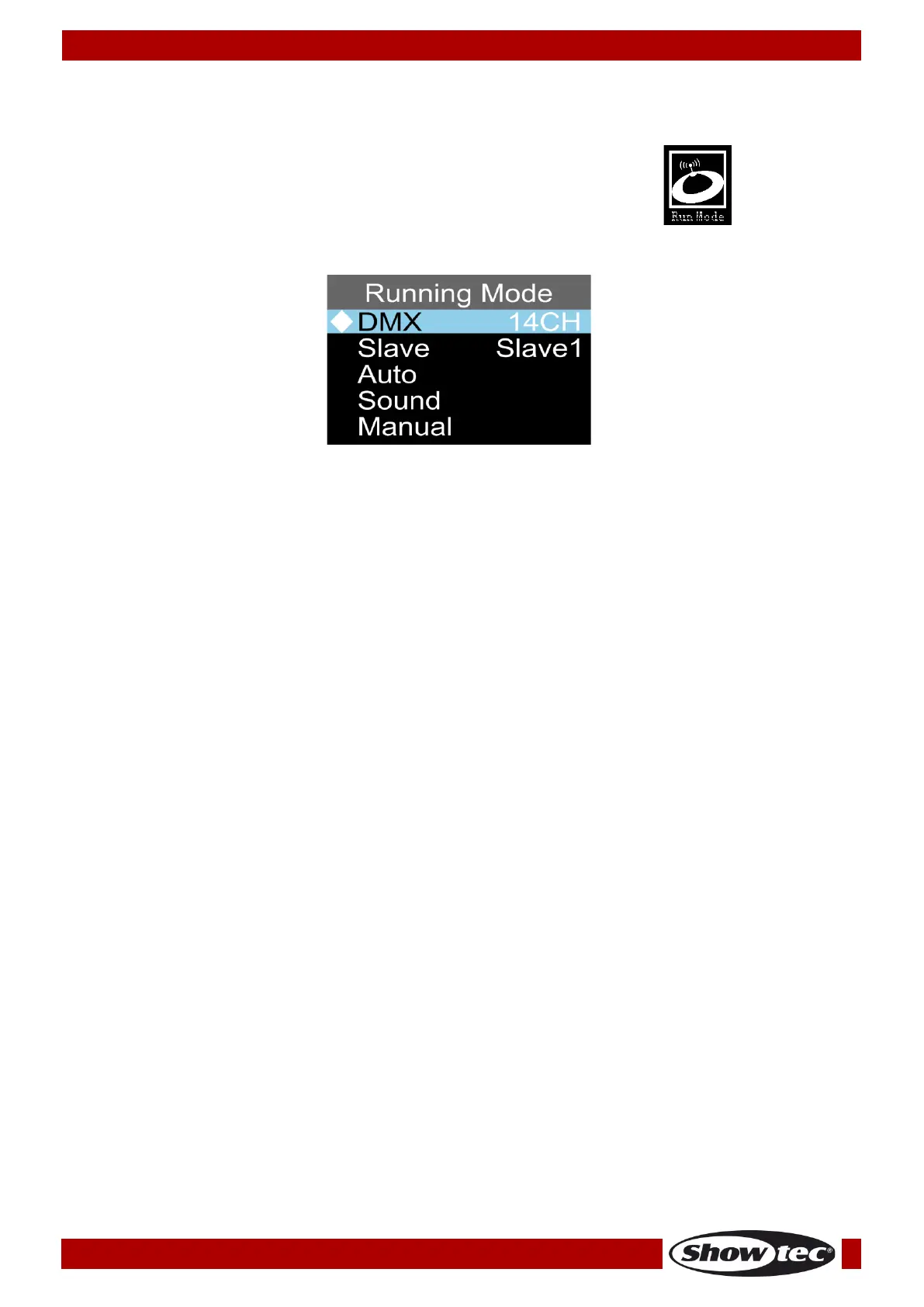

Built-in Programs Mode
You can run the auto programs when using the Phantom.
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to select one of the 5 modes:
1. DMX Mode
01) When the display shows DMX, press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to toggle between the 2 channel modes:
● 14 channels
● 29 channels
03) Press the ENTER button to confirm your choice.
2. Slave Mode
01) Press the UP/DOWN buttons until the display shows SLAVE.
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to assign one of the 4 slave groups (Slave1–Slave4) to your slave device.
Each slave group reacts differently to the signal from the master device.
04) Press the ENTER button to save changes.
05) The device is now operating in Slave mode. It means that it will react to the signal from the master
device. You can connect up to 32 slave devices to one master device.
3. Auto Mode
01) Press the UP/DOWN buttons until the display shows AUTO.
02) Press the ENTER button to activate Auto mode.
03) The device will now run the built-in auto show.
4. Sound-controlled Mode
01) Press the UP/DOWN buttons until the display shows SOUND.
02) Press the ENTER button to activate Sound-controlled mode.
03) You can now adjust the sound sensitivity (see pages 15–16 for more information).
04) The device will now react to the beat of the background music by means of the built-in
microphone.
