5.3.4. DMX Linking

To connect multiple devices on one DMX data link, follow the steps below:

01) Use a 3-pin/5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN01)

connector of the 1

device.

02)

Connect the DMX OUT connector of the 1

device to the DMX IN connector of the 2

device with a 3-

02)

pin/5-pin DMX cable.

03)

Repeat step 2 to connect all devices in a daisy-chain.

03)

04)

Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data link.

04)

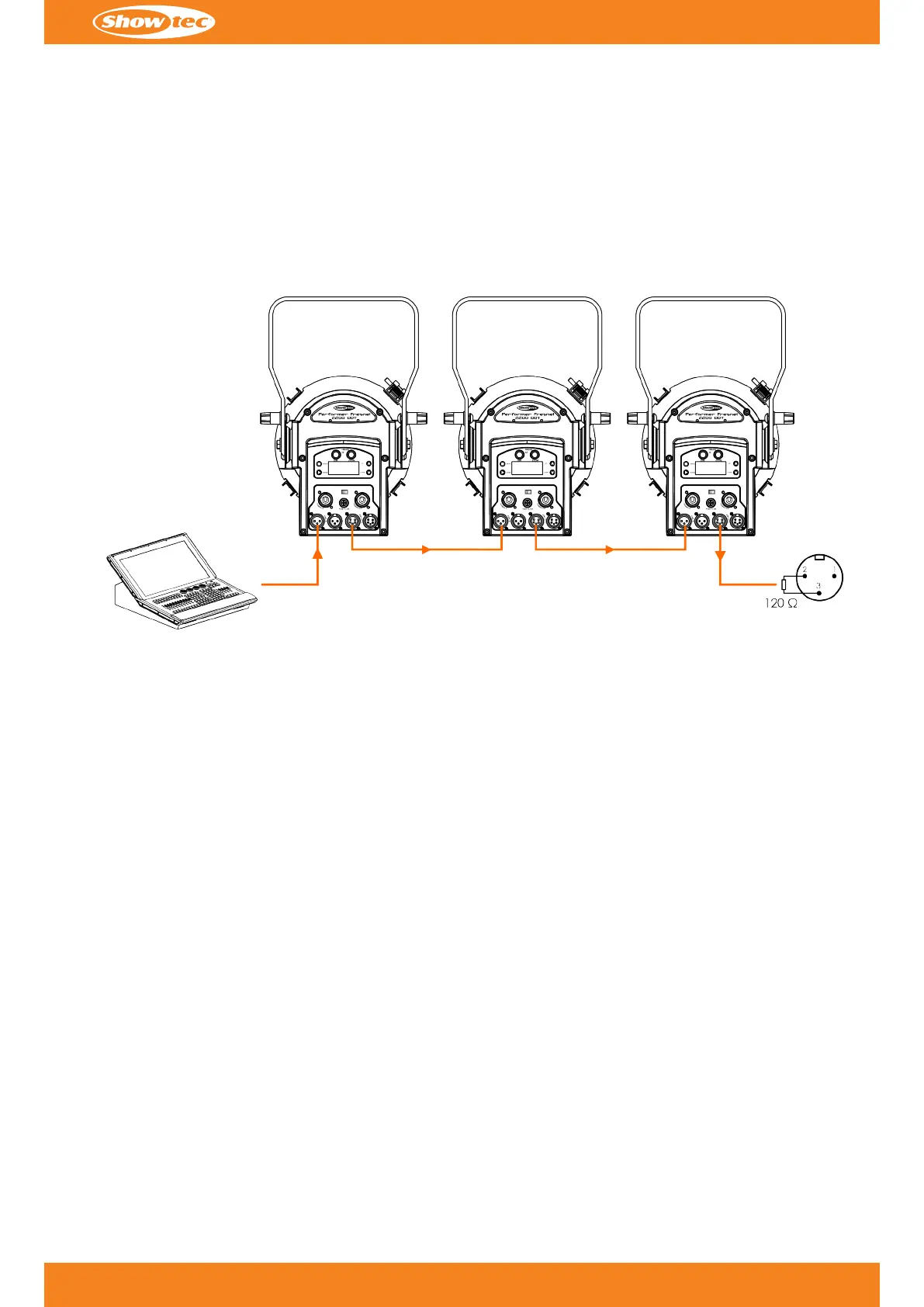

Figure 9

5.3.5. DMX Addressing

In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The

Performer Fresnel 2200 DDT has 3 personalities: UNO (1 channel), DOS (2 channels) and STD.P (5 channels).

If you want to connect multiple devices on one data link and use them in 5-channel mode, for example, follow

the steps below:

01) Set the starting address of the 1

device on the data link to 1 (001).01)

02) Set the starting address of the 2

device on the data link to 6 (006), as 1 + 5 = 6.02)

03) Set the starting address of the 3

device on the data link to 11 (011), as 6 + 5 = 11.03)

04)

Continue assigning the starting addresses of the remaining devices by adding each time 5 to the previous

04)

number.

Note:

Make sure that you do not have any overlapping channels in order to control each Performer Fresnel 2200 DDT

correctly. If two or more devices have the same DMX starting address, they operate in the same way.

Product code: 33045

Performer Fresnel 2200 DDT
