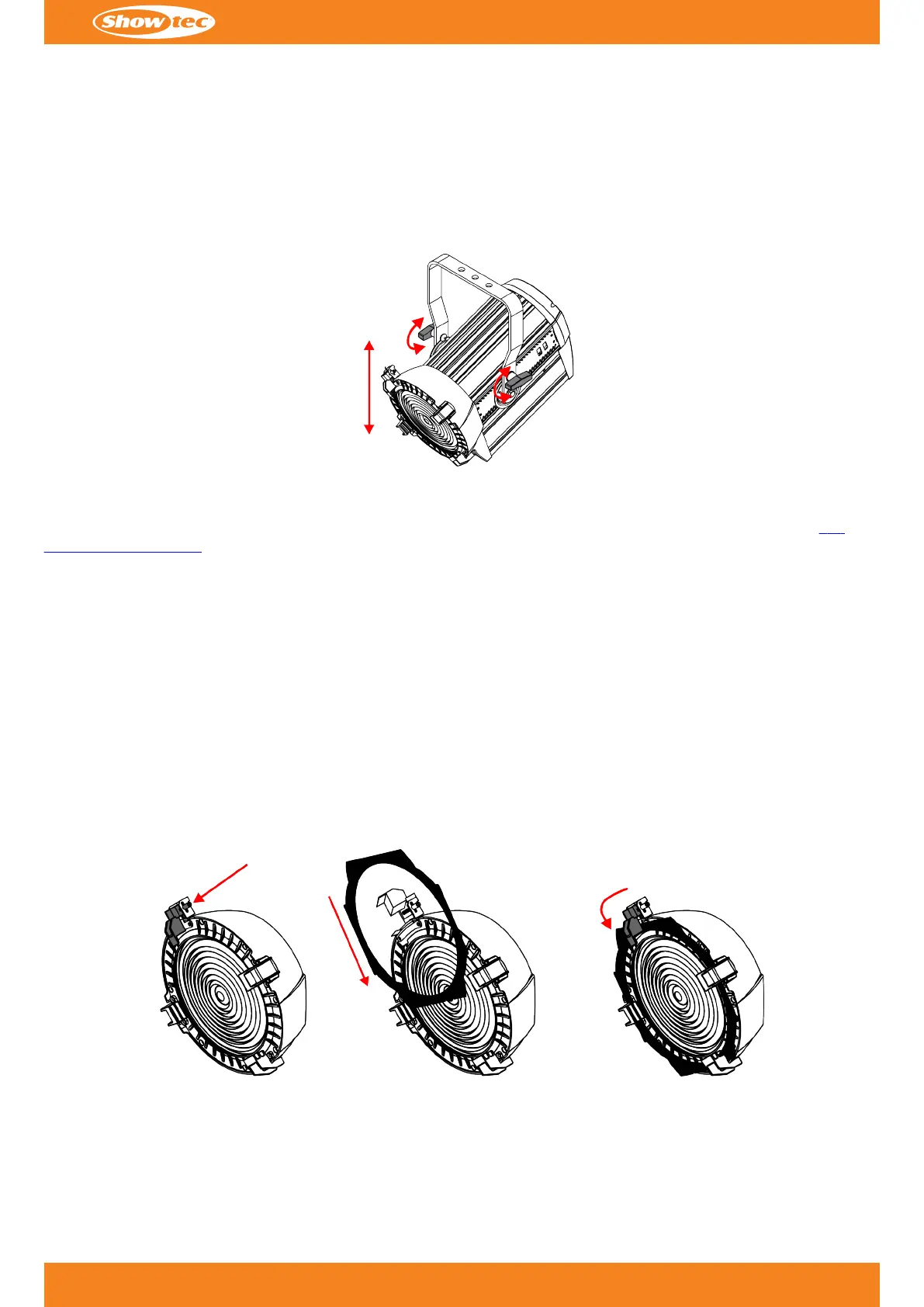

4.4.1. Angle Adjustment

You can adjust the angle of the device with the adjustment screws (06).

01) Turn the adjustment screws (06) counterclockwise to loosen them.01)

02) Tilt the device to the change the angle.02)

03) Turn the adjustment screws (06) clockwise to tighten them. Make sure that the device cannot move freely03)

after the adjustment screws (06) are tightened.

Figure 4

4.4.2.

Filter Frame/Barndoor Installation

The Performer Fresnel 2200 DDT is delivered with a filter frame. A barndoor is an optional accessory (see 3.5.

Optional Accessories on page 12). You can insert a color gel or a diffusion filter into the filter frame. To install a

filter frame or a barndoor, follow the steps below:

01)

Press the spring-loaded screw on the filter frame clip (04). The filter frame clip (04) turns upwards.

01)

02)

If you use a filter frame, insert a color gel or a diffusion filter into the filter frame.

02)

03)

Insert the filter frame or the barndoor into the filter frame holders (02).

03)

04)

Pull the filter frame clip (04) downwards to release the spring-loaded screw. The filter frame or barndoor is

04)

locked in position.

05)

If you install a barndoor, secure the barndoor to the overhead structure with an appropriate secondary

05)

attachment, for example a safety cable. Put the safety cable through the safety eye of the barndoor.

Note:

Make sure that the filter frame or barndoor is locked in position with the filter frame clip (04) before you use the

device.

Figure 5

Product code: 33045

Performer Fresnel 2200 DDT
