Ordercode: 42589
Compact Par 18 Q4
Control Modes
There are 5 modes:
● Auto run
● Static Color/Manual
● Sound-controlled
● Master/slave
● DMX-512 (4CH, 6CH or 10CH)
One Compact Par 18 Q4 (Auto Run Mode, Static Color Mode)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Compact Par is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 14 and 15 for more information about Auto Run Mode, the Built-in programs and
Static Color Mode.
One Compact Par 18 Q4 (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Compact Par will react to the beat
of the music. Please see page 16 for more information about the sound-control options.
Multiple Compact Pars 18 Q4 (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-p XLR cable to connect the Compact Par and other devices.
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
04) Link the units as shown in Fig. 03, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on pages 14 and 15 (Auto run, Static
color/Manual). This means you can set your desired operation mode on the master device and all
slave devices will react the same as the master device.

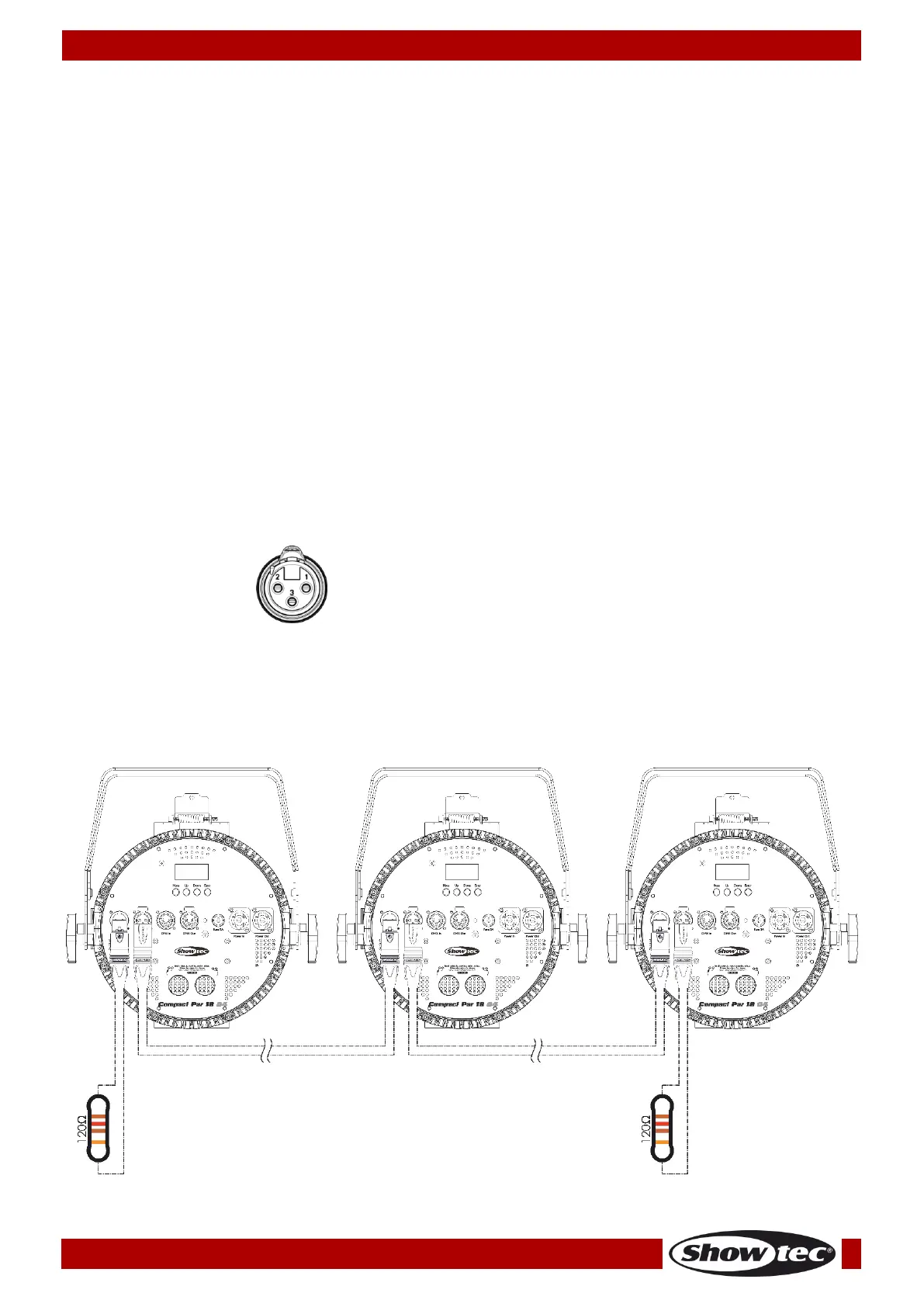

Multiple Compact Pars 18 Q4 (Master/Slave control)
Fig. 03
