English - 33
10. Installation without a frame set

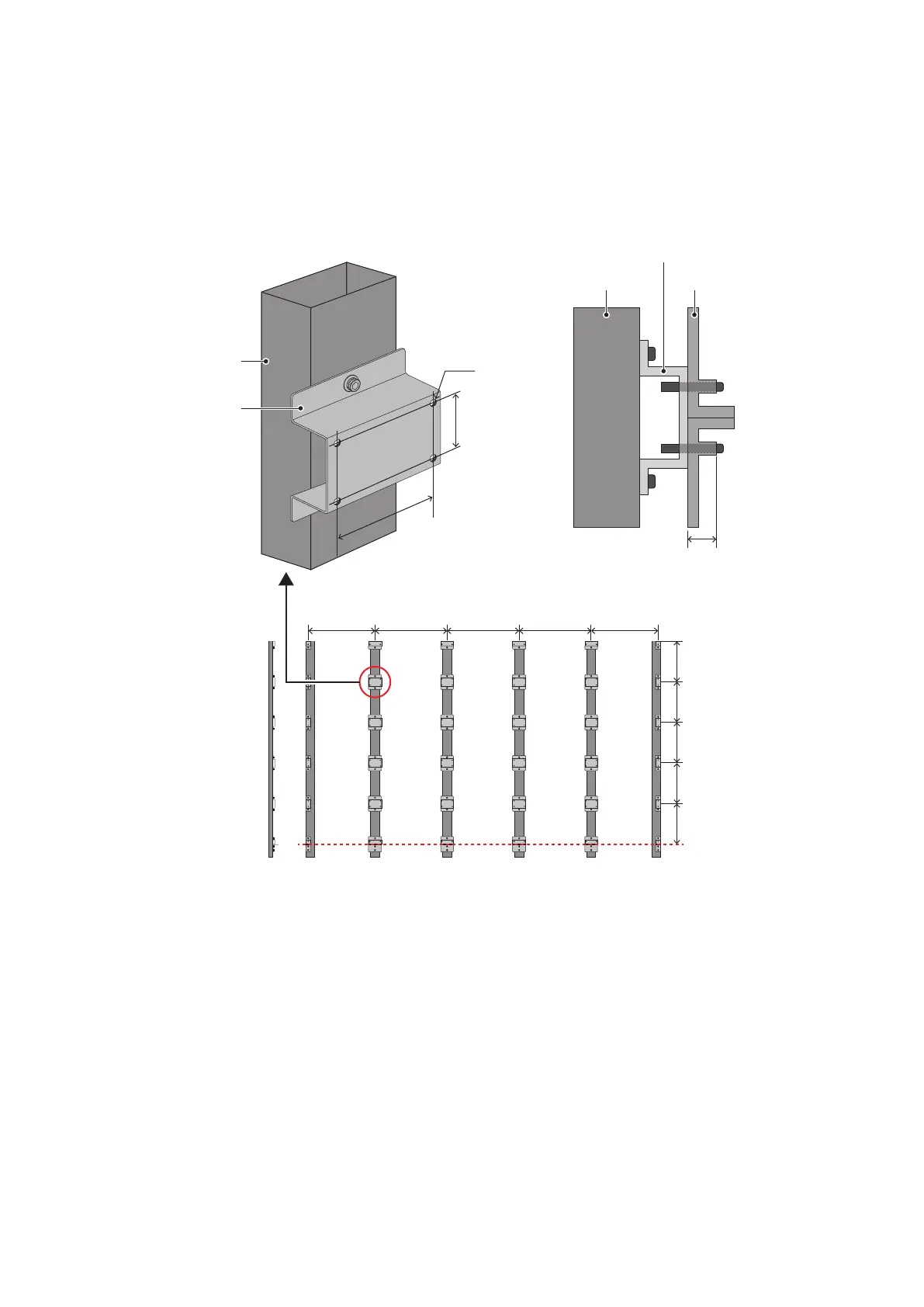

An example of installation when using the brackets is shown below. Please prepare the bracket by
yourself. Ask a technician or your retailer for the installation procedure when not using the brackets.
Install the brackets to the frame as shown in the gure below.
Use screws with a length adapted to the cabinet thickness (13 mm). Use also brackets with a
sufcient thickness to hold the screws.
37.5 mm
43 mm
13 mm
4-M5
Installation example
Frame
Frame
Bracket
Bracket
Cabinet
557 mm 557 mm600 mm 600 mm 600 mm
337.5 mm
337.5 mm
337.5 mm
337.5 mm
337.5 mm
Adjust the horizontality of the lowest row.
For installation, please refer to the “8. Install the cabinets”.
