FRM- 1120C INSTRUCTION MANUAL
43
Sealer Sales | www.sealersales.com | Tel: 818-718-8818 | E-mail: contact@sealersales.com

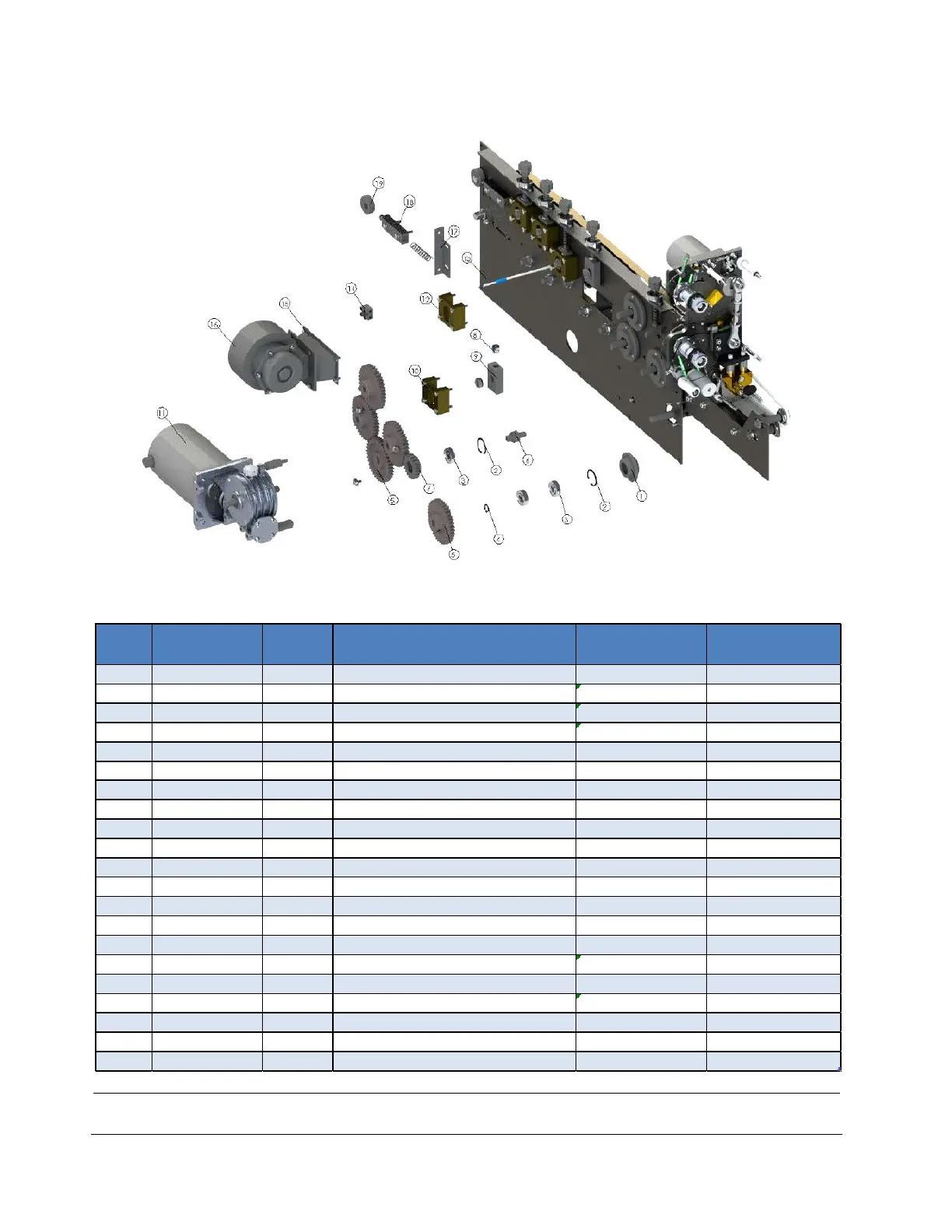

Figure 50. FRS-1120W Motor and Gears Parts Diagram
Item #
Part #
Quantity Description
Reference Comments
1 HL-M810-40C 1 Connecting Shaft Bearing Seat 11311030026 Includes #1, 2, 3
2 HL-M810-40C 2 E-Clip 28mm 9746016400028 Includes #1, 2, 3
3 HL-M810-40C 3 Bearing 6001 ZZ (12 x 28 x 8) 9105200601012 Includes #1, 2, 3
4 1 E-Clip 12mm 9746036400012
5 FRM-1120C-35b Wheel Gear (with out groove) 11511010305
FRM-1120C-35c Wheel Gear (with groove) 11511010305C
6 1 Wheel Shaft 11511011202
7 FRM-1120C-35-68 1 Medium Gear 11511011201
8 5 Slide Spring Seat 11511010207
9 FRM01129C-28-66 5 Spring Seat for Slide Block 11511010208
10 1 Slide Block Seat 11511010209A
11 FRM-1120C-29 1 Motor
FRM-1120C-30 Turbocase
12 FRM-1120C-28-49 4 Slide Block Seat 11511010209
13 1 Bottom Plate 11513011303
14 BS-33A 1 Connection Station (4P) 9201401110002
15 FRM-1120C-32 1 Fan 11511020011 Includes #15, 16
16 FRM-1120C-32 1 Fan 9230121000765 Includes #15, 16
17 FRM-1120C-13-46 1 Adjusting Block Seat 11511011110
18 FRM-1120C-13-40 2 Adjusting Pressing Plate 11511011107
19 FRM-1120C-13-38 2 Cam / Protruding Wheel 11511011106
