FR- 770 INSTRUCTION MANUAL
15
5. Adjust the conveyor position forwards or backwards. Refer to Figure 8 for knob adjustments. For vertical
configuration only, adjust the height of the band sealer appropriate for your bag to be sealed.

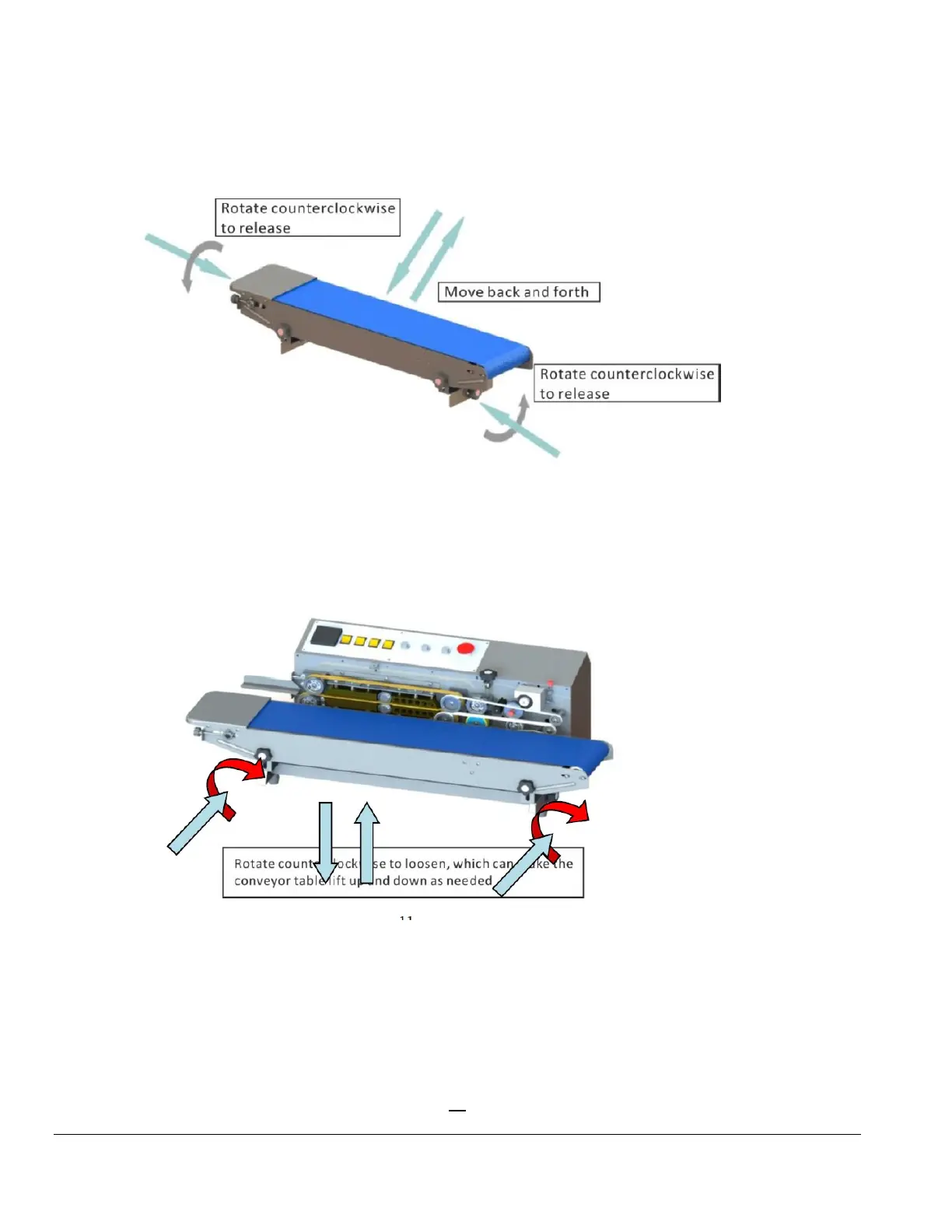

Figure 8. (1) Adjusting Knob, (2) Foot Rest
6. To adjust the conveyor height (horizontal configuration), adjust the height by the adjusting knob in front of
the conveyor table and tighten after adjustment. Refer Figure 9 to for knob adjustments. For vertical
configuration only, adjust the height of the band sealer appropriate for your bag to be sealed.
Figure 9. Adjusting the conveyor height of horizontal configuration
7. Adjust the guide to adjust seal width and position of seal line on your material.
