CBS- 880 INSTRUCTION MANUAL
28
Sealing and Drive Belts
1. Check and replace the belts as necessary. Both the sealing and drive belts are
consumable items. Replace sealing belts when there are burn marks or if the belts
become hard and brittle. Replace drive belts when the belts break or become badly
cracked.
2. To change out the belts, make sure the machine is turned off.
3. Remove the safety cover (Figure 37, Item #6).
4. Remove the two drive belts.
5. To remove the sealing belts, push on the adjustment blocks (Figure 37, Item #3 & 30) and the sealing
belts should easily slip off. Our newer units now have a latch which will hold the adjustment block in
place while you remove and replace the sealing belts.

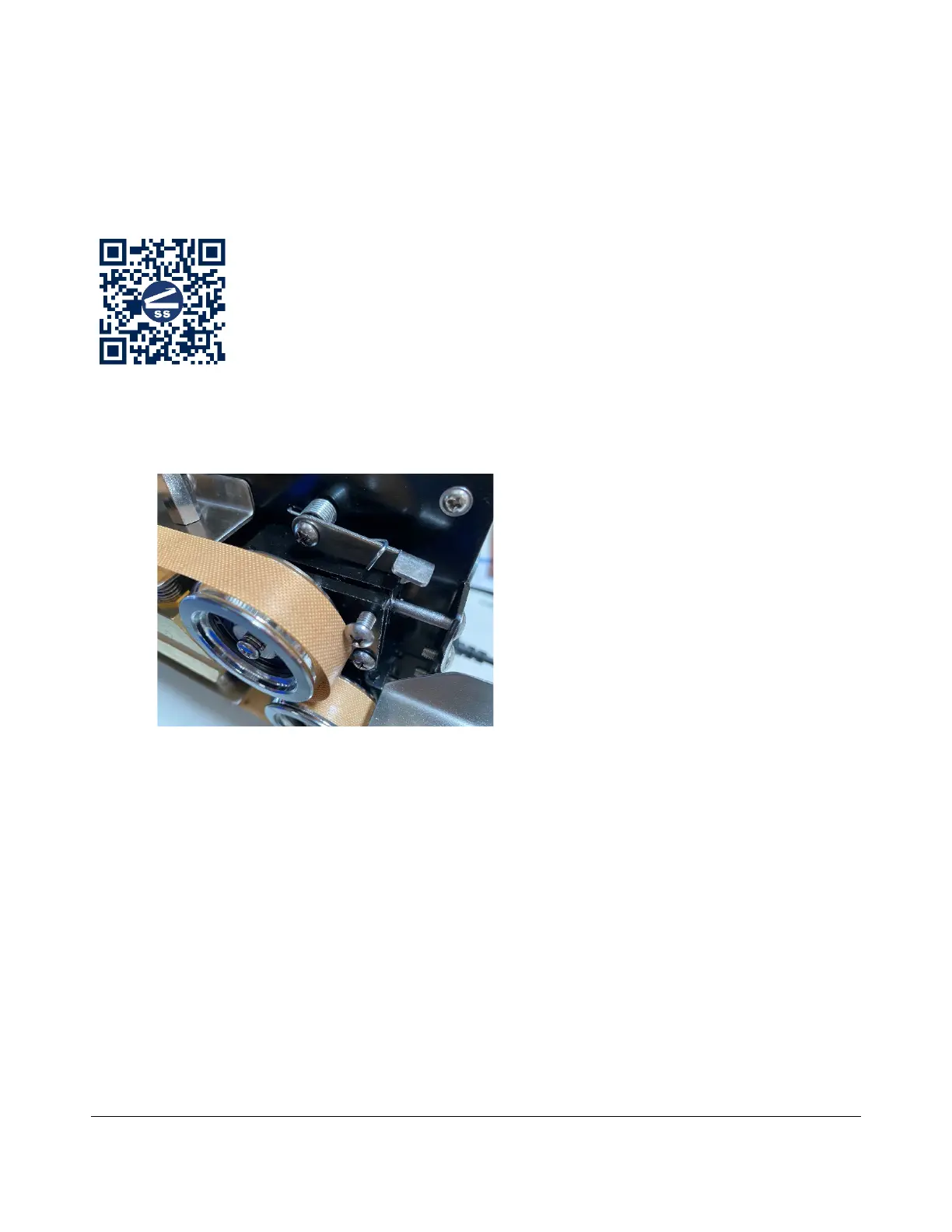

Figure 35.
a. You may also need to rotate the retaining washer by 90 degrees on both upper heating blocks
and upper cooling blocks to lift both blocks.
Scan QR Code for
Video Demo
