UC GOURMET UNDERCOUNTER
pg. 18
b. Condenser Temperature Sensor
The condenser temperature sensor probe, located within the condenser fins, detects the condenser
temperature variations and signals them by supplying current, a low voltage, to the PC Board. In
relation to the different current received, the microprocessor of the PC Board supplies, through a
TRIAC, the power at high voltage to the fan motor in order to cool the condenser and to reduce its
temperature. In case the condenser temperature rises and reaches 160˚F (70˚C), the current arriving to
the microprocessor will immediately shut down the machine.
c. Bin Thermostat
If the bin thermostat is open at the completion of harvest, the unit will shut down.

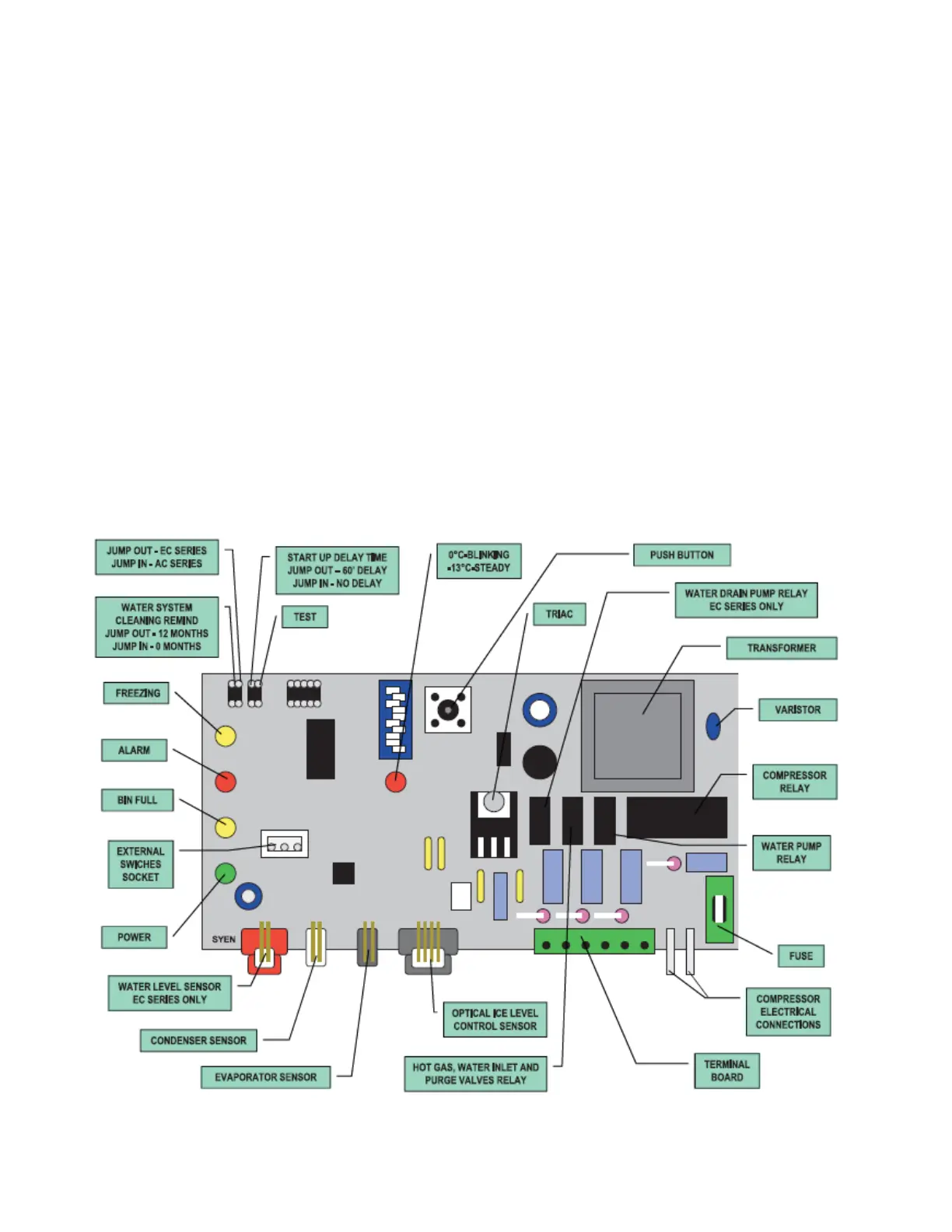

d. PC Board
The PC Board, in the control box, located in the front of the unit, consist of two separate printed circuits
– one at high and one at low voltage. Integrated with fuse for power output (6.3A), four aligned LEDs
monitor the operation of the machine. It consists of one extra monitoring RED LED (blink 32˚F (0˚C) –
steady - 60˚F (15˚C)), one DIP SWITCH block with ten keys, one push button, input terminals for the
leads of the sensor probes, and input and output terminals for the leads of the ice maker electrical
wires.
