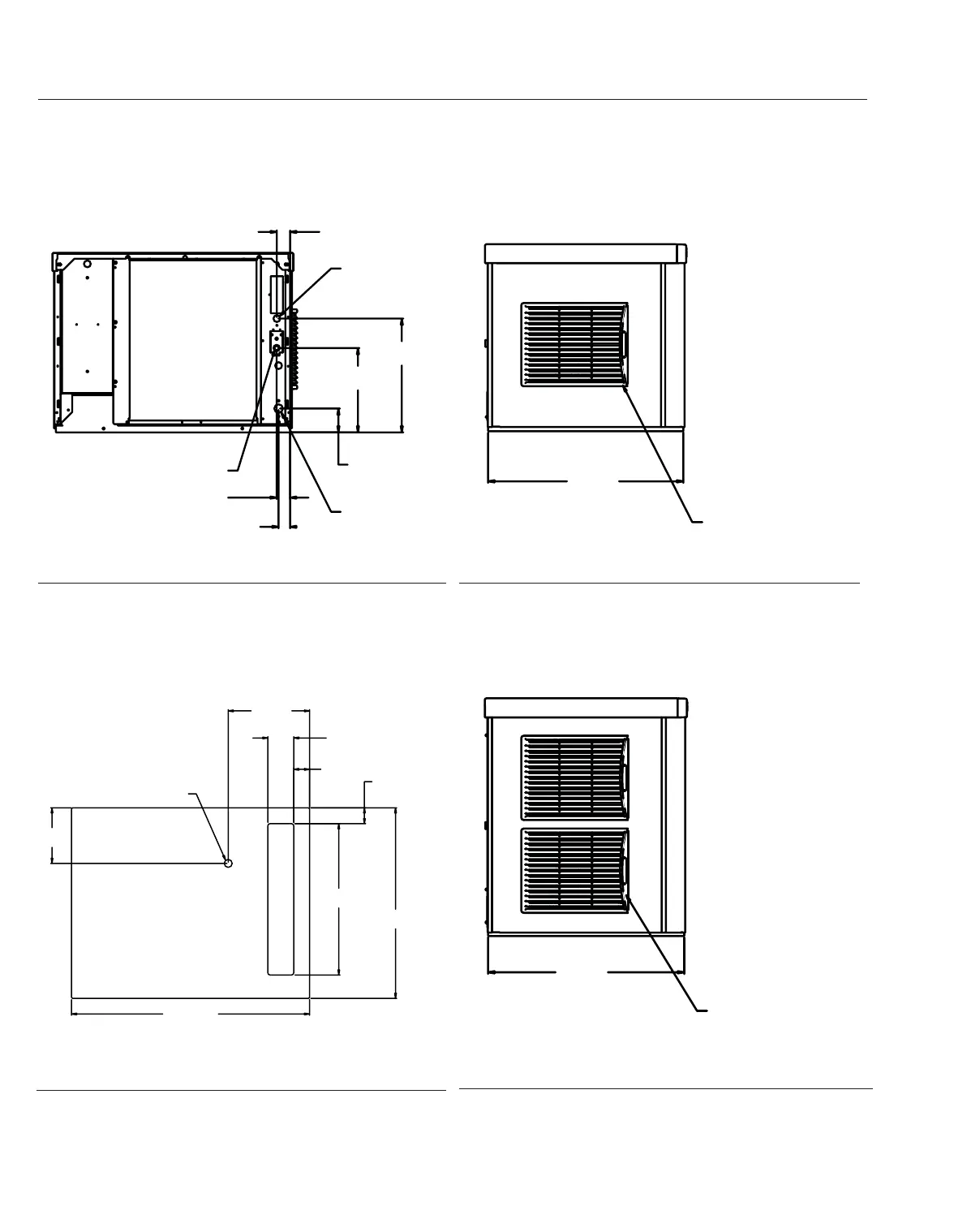

AIR COOLED
BACK VIEW
3.06
7.8
10.81
27.5
14.59
37
1.48
3.7
1.73
4.4
1.70
4.3
3/4" FPT
DRAIN
3/8" FPT
WATER
INLET
.88" DIA
ELECTRICAL
ACCESS
C0330, C0530, C0630 AC Back View
LEFT SIDE VIEW
24.00
61
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
C0830, C1030 Air Cooled Side View
C0330, C0530, C0630, C0830 and C1030 Cabinet Layout
July 2006
Page 6
C0322 through C1030
Air and Water Cooled User Manual
PLAN VIEW
24.00 REF.
61
30.00 REF.
76.2
2.00
5.1
2.00
5.1
19.05
48.4
3.25
8.3
10.25
26
7.00
17.8
ICE DROP OPENING
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
Top View - All
LEFT SIDE VIEW
24.00
61
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
C0330, C0530, C0630 Air Cooled Side View
Note: Top number is centimeters, bottom number is inches.
