11
1
1
Read pages 3-6
for kit assembly.
Read pages 3-6
for kit assembly.

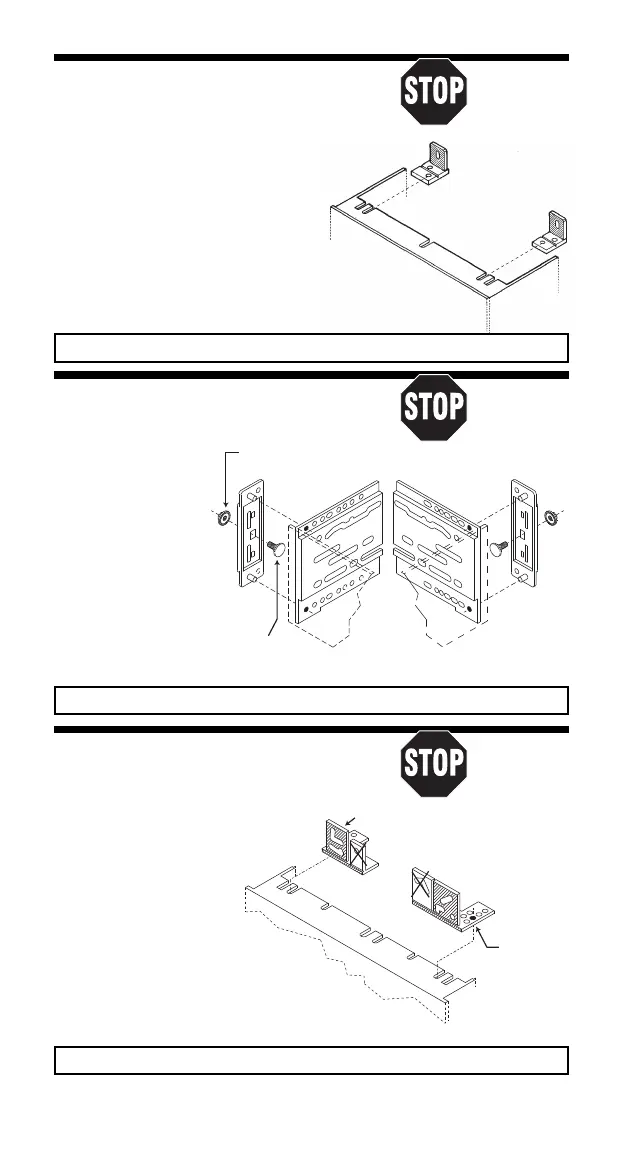

"G" BRACKET
SOPORTE "G"
FLANGE NUT
TUERCO REBORDE
TOP
TOPE
Read pages 3-6
for kit assembly.
"D1" BRACKET USE HOLE #2
"D1" SOPORTE USA ABERTURA NO. 2
"C1" BRACKET
USE HOLE #2
"C1" SOPORTE
USA ABERTURA
NO. 2
TOP
TOPE
"F" BRACKET
SOPORTE "F"
FRONT OF KIT
FRENTE DE ESTUCHE
FBA LEFT
BRACKET
SOPORTE
IZQUIERDA FBA
CARRIAGE BOLT
PERNO DE PORTE
FBA RIGHT
BRACKET
SOPORTE
DERECHA FBA
LEFT
LADO
IZQUIERDA
RIGHT
LADO DERECHO
FRONT OF KIT
FRENTE DE ESTUCHE
10
1982-88 Cadillac Cimarron
1982-90 Chevrolet Cavalier "VL"
or Base Models
1982-88 Pontiac Sunbird/J-2000
RADIO REMOVAL:
1. Remove the six screws from the dash trim panel.
2. Release the panel at the top fi rst, then carefully at
the bottom and remove the trim panel.
NOTE: For column mounted gear selectors, place
the gear selector in low gear to provide additional
clearance.
3. Remove the two screws from the top of the factory
radio retainer bracket.
4. Carefully pull the radio out of the cavity, then
disconnect the antenna, speakers and all the
electrical connections. Remove the radio.
USE THE SHADED BRACKETS & THE INDICATED HOLE LOCATIONS. CUT OFF THE REMAINING BRACKETS & DISCARD.
Usa los soportes asombrados y las localizaciónes de aberturas indicadas. Corta los soportes que sobran y desechalas.
1992-95 Cadillac DeVille
RADIO REMOVAL:
NOTE: The following information
is for the non-Bose stereo
equipped vehicle.
1. Carefully pull out on the
radio perimeter trim bezel.
2. Push the two tabs in on
the sides of the factory
stereo. One on the upper
left side and one on the
lower right side.
3. Slide the radio out,
unplug and remove
the radio.
USE THE SHADED BRACKETS & THE INDICATED HOLE LOCATIONS. CUT OFF THE REMAINING BRACKETS & DISCARD.
Usa los soportes asombrados y las localizaciónes de aberturas indicadas. Corta los soportes que sobran y desechalas.
1985-91 Cadillac DeVille
1985-92 Cadillac Fleetwood
RADIO REMOVAL:
1. Remove (2) Phillips head sheet metal screws
from top edge of the radio trim panel.
Remove the trim panel.
2. Remove (2) 7mm hex head bolts
from the top radio mounting bracket.
3. Open ashtray and remove
(1) 7mm hex head screw
(farthest towards rear
of car on driver's side).
4. Slide the radio out of cavity,
disconnect all wiring, and remove radio.
USE THE SHADED BRACKETS & THE INDICATED HOLE LOCATIONS. CUT OFF THE REMAINING BRACKETS & DISCARD.
Usa los soportes asombrados y las localizaciónes de aberturas indicadas. Corta los soportes que sobran y desechalas.
