6
© 2018 SCOSCHE INDUSTRIES, INC
BW2380SRB 04/18
KEY 1
KEY 2
3.5mm
GND
1. Prepare SWC steering wheel connector harness by using the chart below
Connect the harness to the interface module.
For Alpine, Clarion, JVC, Panasonic and Sony car stereos, connect the 3.5mm male steering plug
into the steering wheel input jack at the back of the stereo.
For Kenwood and newer JVC stereos, connect the BROWN wire from the steering wheel harness
to the “Remote in” wire at the back of the stereo.
2.
3.
4.
Violet, Green, Orange Loops
ALIPNE
CLARION
JVC
KENWOOD
PANASONIC
PIONEER / SONY
OTHER BRANDS
Cut Green Loop
Cut Violet Loop
Cut Green & Violet Loop
Cut Orange & Green
Cut Orange
Do Not Cut Loops
Call Tech Support
3.5mm
3.5mm
3.5mm or Brown (Key1)
Brown (Key 1)
Brown (Key 1)
3.5mm
Brown, Gray, Black
STEREO BRAND CONFIGURATIONC ONNECTION TO STEREO
If you have any questions or need technical assistance with
the installation, or the most current application please call or
visit us on the web at:
(800) 363-4490 p6-x1 | www.scosche.com/contact
TECH
SUPPORT
!

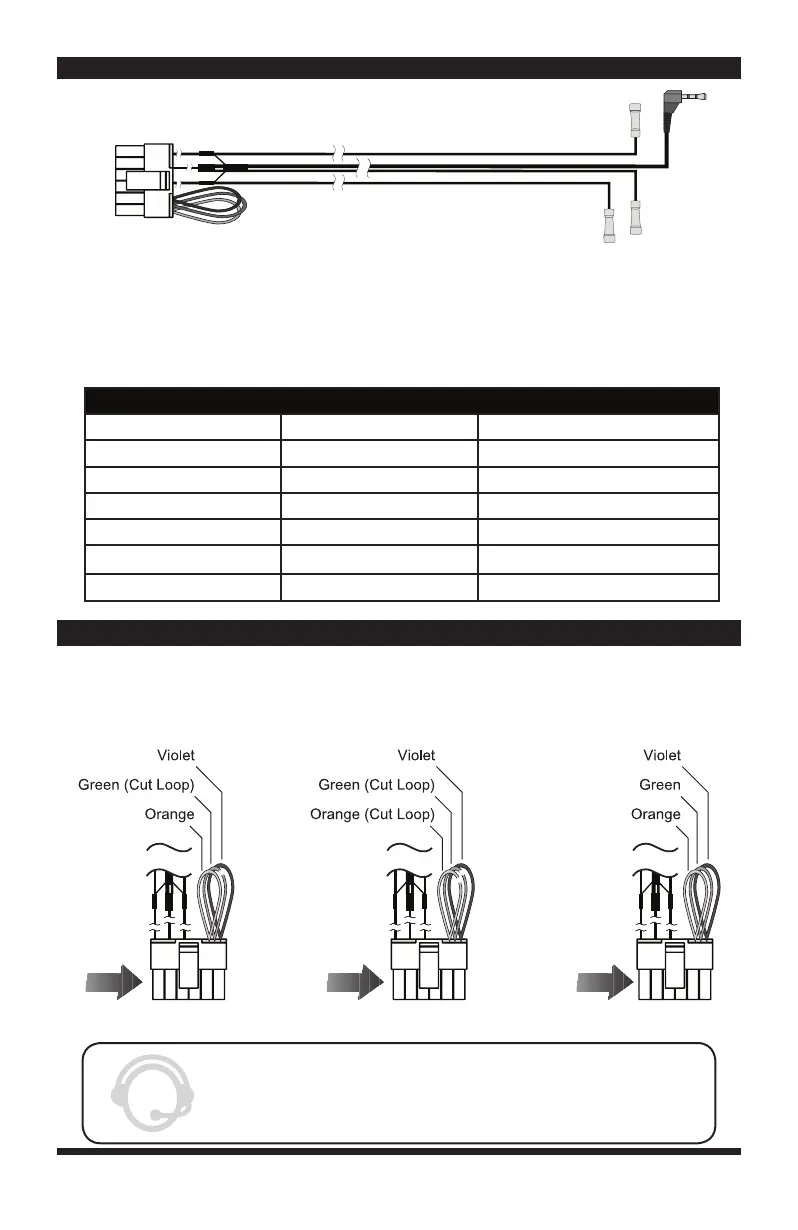

(SWC) STEERING WHEEL DIAGRAM
SWC SAMPLES
Samples
Alpine Kenwood
Pioneer /
Sony
SWC HARNESS SAMPLE CUTS
Use the SWC samples below as possible outcomes to your installation. Please note that the
wire loops are only meant to be cut if necessary for your installation. Do NOT detatch the
loops from the 12-pin connector, cut only.
