24 Perform a pressure test
11. Perform a pressure test
The pressure test allows to check if there are any leaks in the system. To perform this test, the system pressure will
be measured over a period of time.
For a temperature compensated test the ambient temperature can be taken into account. This allows the manifold to
compensate measured pressure based on NO2 pressure at different temperatures.
To measure the ambient temperature a Si-TH4 is preferred. If a Si-RT2, Si-RT5 or Si-RT7 is used ensure the Tempera-
ture compensation is turned off (chapter 8.2).
Pressure test always uses the pressure sensor on the right of the manifold (typically the HP sensor).

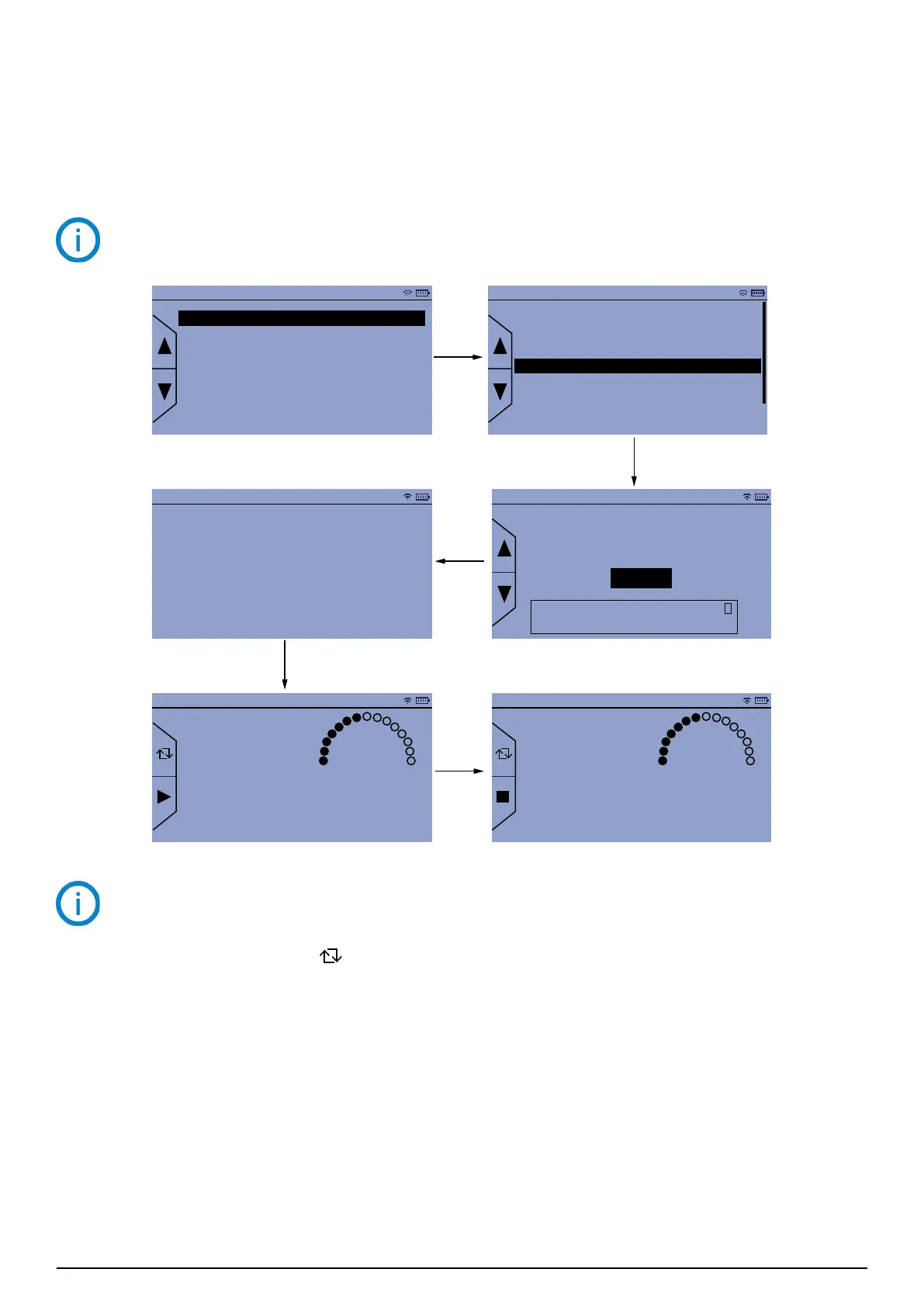

10:09 Menu
Measurements / Tests
Measurement settings
Wireless connection
General settings
Fault tree analysis
Data recording
Device information
>
>
>
>
>
>
>
10:09 Measurements / Tests
10:09
Pressure test
--- bar
0.27 bar
--- bar
--:--
P1
P2
Delta P
Duration
Temperature compensation ON
Next
To use temperature compensation, a
temperature probe is required
i
10:09
Pressure test cong.
10:09
Auto-Detection
Delta P
T. Amb
Sensor auto-detection complete.
Internal2
[075]
-1.00 28.00bar
HP
12.69
T. Comp
T. Amb
ON
19.6 °C
10:09
Pressure test
0.26 bar
0.27 bar
0.01 bar
01:26
P1
P2
Delta P
Duration
-1.00 28.00bar
HP
12.69
T. Comp
T. Amb
ON
19.6 °C
>
>
>
>
>
Refrigeration
Evacuation
Pressure test
Filling / Recovery
Refrigeration One - Way
Before each test it is recommended to zero the pressure sensors in ambient pressure, before connecting
hoses.
It is only possible to zero pressure with less than 0.3 bar pressure measured, to avoid accidental zero.
• Perform an autozero by pressing
for 3 seconds.
• Connect a pressure hose to the manifold and to the installation.
• Connect a temperature probe (wired or wireless).
• Press OK on "Measurements/Tests" line.
• Press OK on "Pressure test" line.
• Press OK on Next button.
Once the auto-detection is complete:
• Press u to start the pressure test.
• Press ■ once the required duration is reached.
