8
Max. 5/8 in. (1.5 cm)
Min. 16 in. (40.6 cm)
Min. 3 ½ in. (8.9 cm)
Min. 1 ½ in. (3.8 cm)
CAUTION: Avoid potential personal
injury or property damage!
● Drywall covering the wall
must not exceed 5/8 in. (1.5 cm)
● Minimum wood stud size:
nominal 2 x 4 in. (5.1 x 10.2 cm)
actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
● Minimum horizontal space between
fasteners:16 in. (40.6 cm)
● Stud centers must be verified
2A

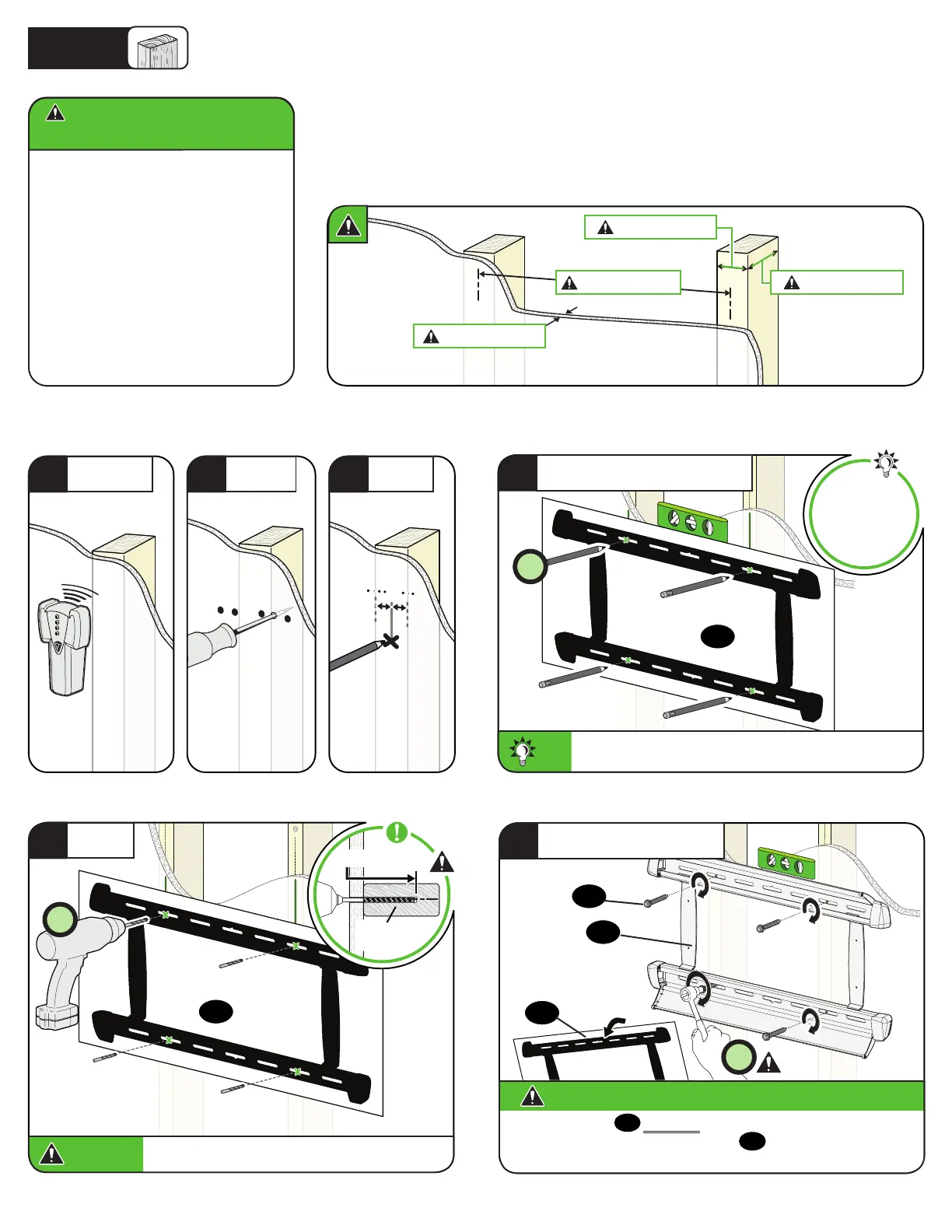

Wood Stud Installation
1
LOCATE
2
VERIFY
3
MARK
4X
4X
2 ¾ in. (6.9 cm)
7/32 in.
(5.5 mm)
4
POSITION TEMPLATE
TIP:
To calculate your precise wall plate location, check out
our HeightFinder at sanus.com [www.sanus.com/1172].
sanus.com
/1172
HeightFinder™
Visit
5
DRILL
CAUTION:
Be sure you drill into the CENTER of the stud.
06
07
05
Skip to STEP 3 on PAGE 10.
6
SECURELY TIGHTEN
All four lag bolts
07
MUST BE firmly tightened to prevent
unwanted movement of the wall plate
06
.
Ensure the wall plate is
securely fastened to the wall before continuing on to the next step.
CAUTION: Avoid potential personal injury or property damage!
05
05
4X
