14 _ Disassembly and Reassembly
This Document can not be used without Samsung’s authorization.
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
3-2. DISASSEMBLY
► This is a standard disassembly diagram and may differ from the actual product.
Use this material as a reference when disassembling and reassembling the product.

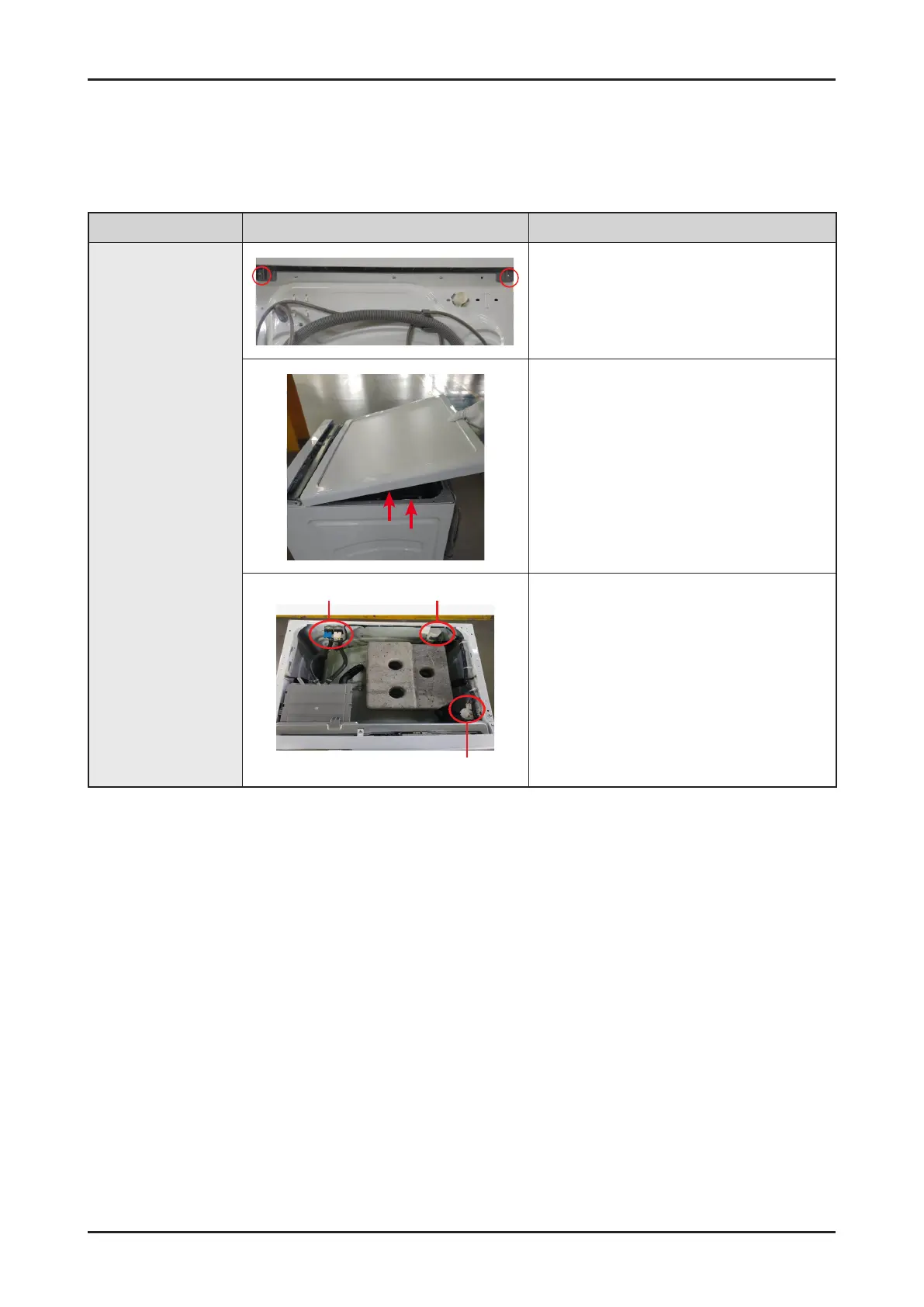

Part Figure Description
Assy Cover Top
1. Remove the 2 screws holding the Top Cover at
the back of the unit.
2. Remove the top-cover by lifting it up after
pulling it back about 15mm.
Water valve
Sensor pressure
Noise lter
3. Then, the Water (Pressure) Sensor, Noise Filter
and WaterValve can be replaced.
