Disassembly and Reassembly _ 13
This Document can not be used without Samsung’s authorization.
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
3. DISASSEMBLY AND REASSEMBLY

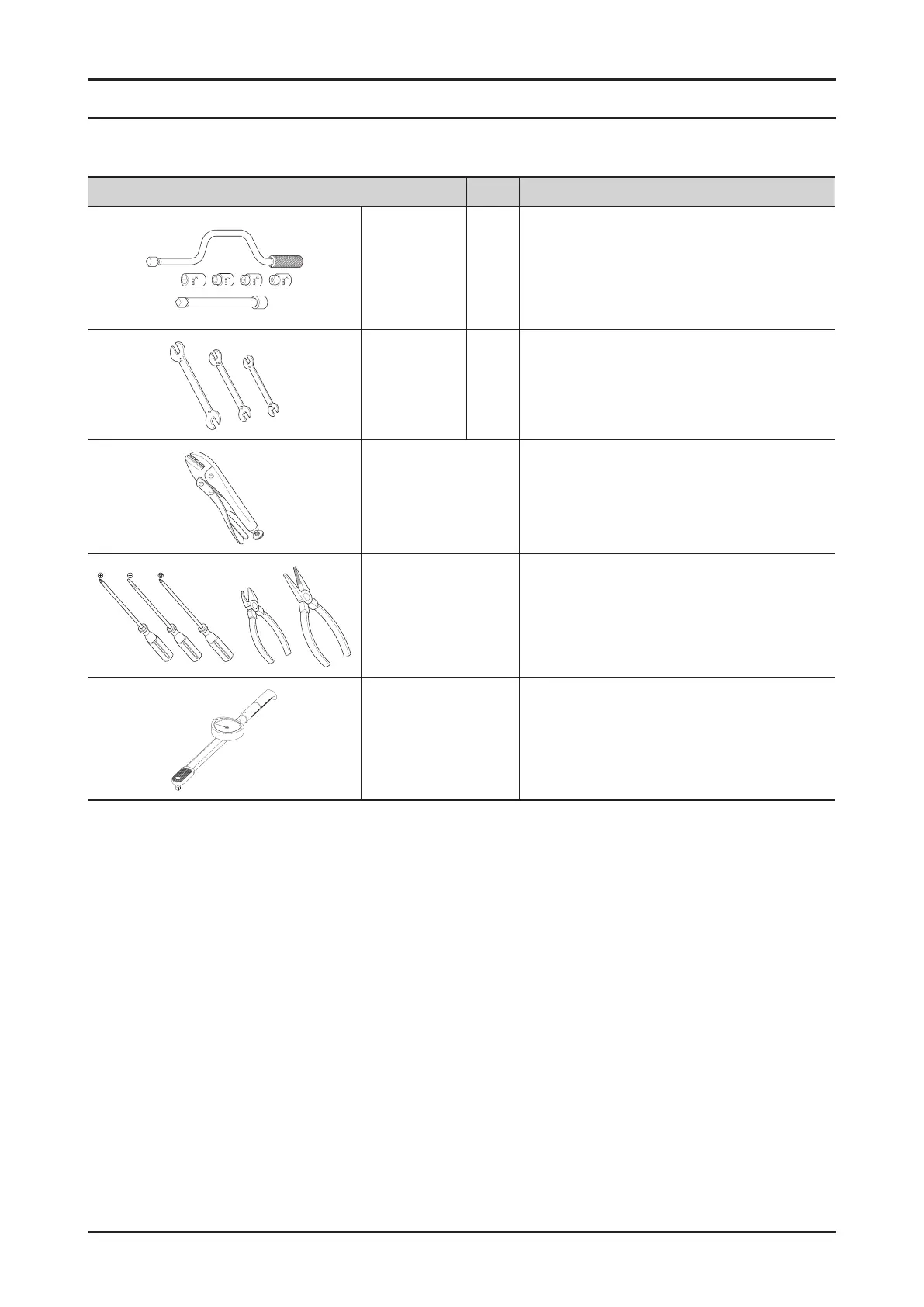

3-1. TOOLS FOR DISASSEMBLY AND ASSEMBLY
Tool Type Remarks
Box driver
10mm
Heater(1),Tub(12), Fixer screw(5), Motor(2),
Balance(9)
13mm
Shock Absorber (2 holes each in left/right),
Damper(2), Damper(friction 2)
19mm Pulley(1)
Double-ended
spanner
10mm
13mm
19mm
Replaced by box driver Leg
Vice pliers
A Tool for protecting empty turning of bolt or
abrasion from using box driver
For disassembly of Spin drum
Others
(screwdriver, nipper, long
nose pliers)
Common tools for servicing
Torque wrench The Tool for assembly of heater and Tub
