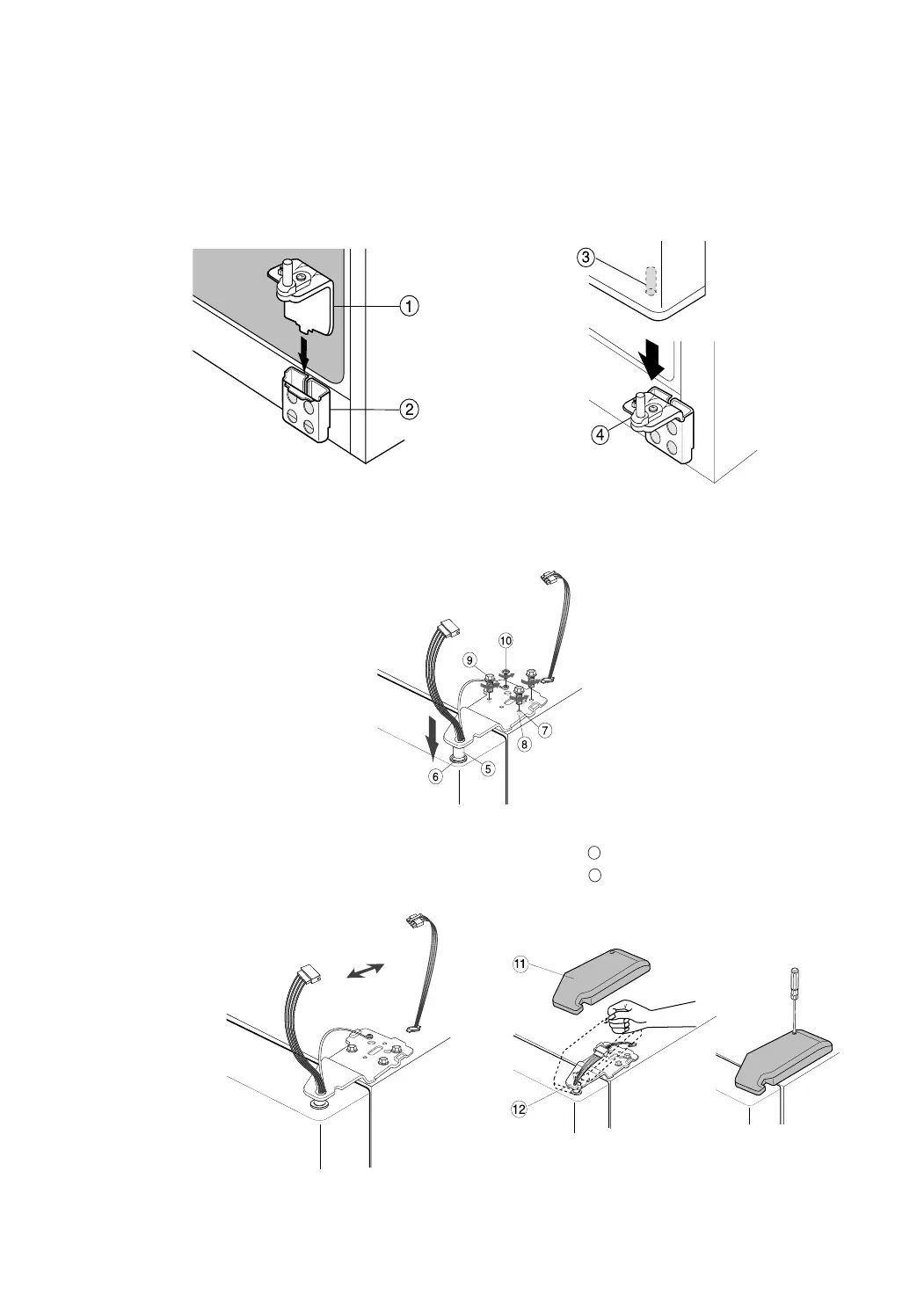

Assembling the Refrigerator Door
1) Insert the lower hinge (
➀
) in the bracket
lower hinge (➁).
2) Place the hole in the refrigerator door (➂)
over the lower hinge (➃).
3) Insert the upper hinge shaft (➄) into the hole (➅). After leveling between the upper
hinge hole (➆) and the hole of the refrigerator
(➇). assemble bolt
(➈) and screw (➉) to
the clockwise by using a tool.
4) Connect the wires. 5)
Put the front part of the upper hinge
cover ( ) on the front part of the upper
hinge ( ) and assemble, starting with the
front part of the upper hinge cover.
11
12
7
DA68-00500P 6/26/02 2:34 PM Page 23
