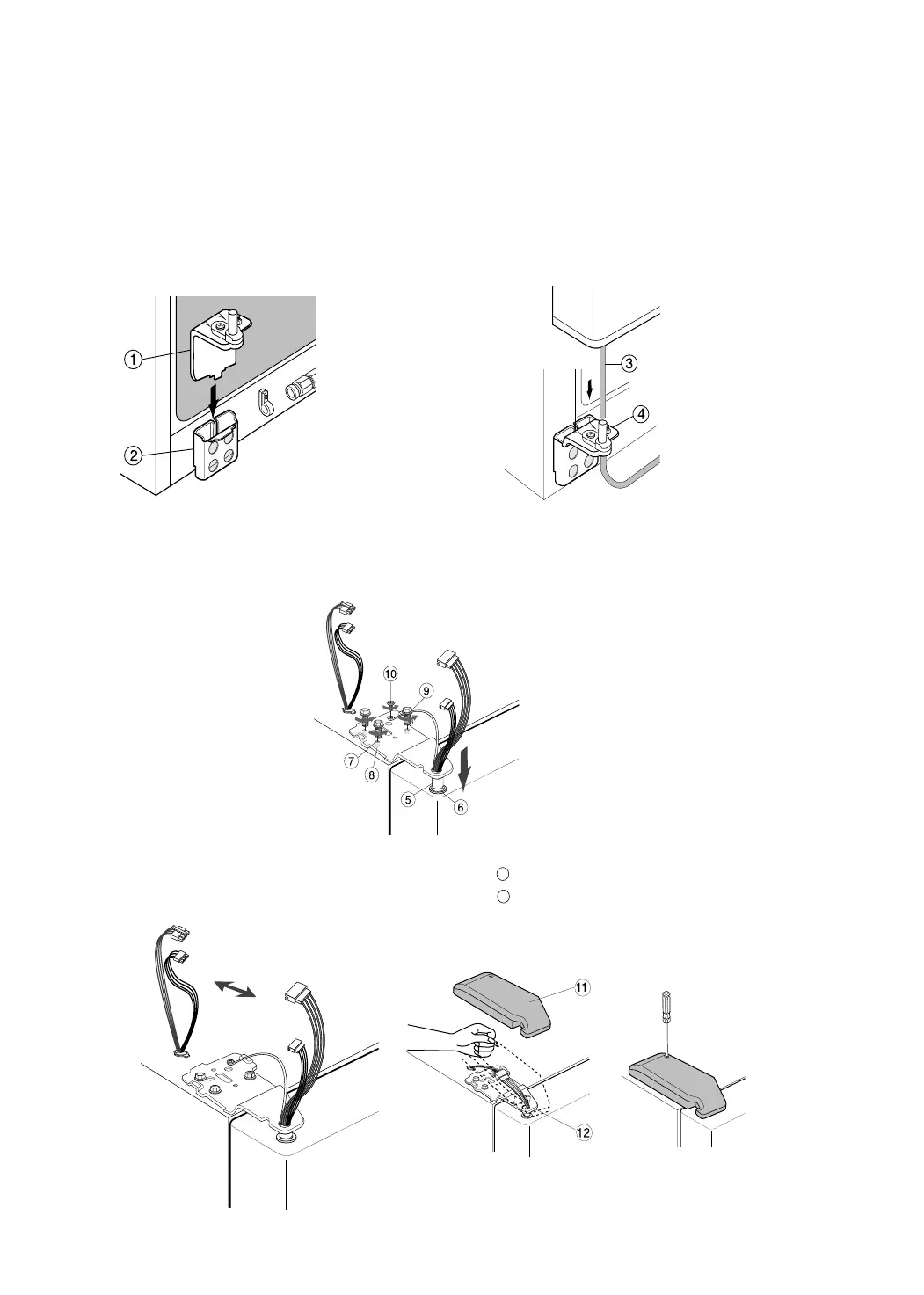

1) Insert the lower hinge (
➀
) in the bracket
lower hinge (➁).
2) Assemble the freezer door by inserting
the hose (
➂
) in the lower side of the door
into the hole in the lower hinge (
➃
) and
pulling the hose down.
3) Insert the upper hinge shaft (➄) into the hole (➅). After leveling between the upper
hinge hole (➆) and the hole of the refrigerator
(➇). assemble bolt
(➈) and screw (➉) to
the clockwise by using a tool.
4) Connect the wires. 5)
Put the front part of the upper hinge
cover ( ) on the front part of the upper
hinge ( ) and assemble, starting with the
front part of the upper hinge cover.
Assembling the Freezer Door
11
12
6
DA68-00500P 6/26/02 2:34 PM Page 22
