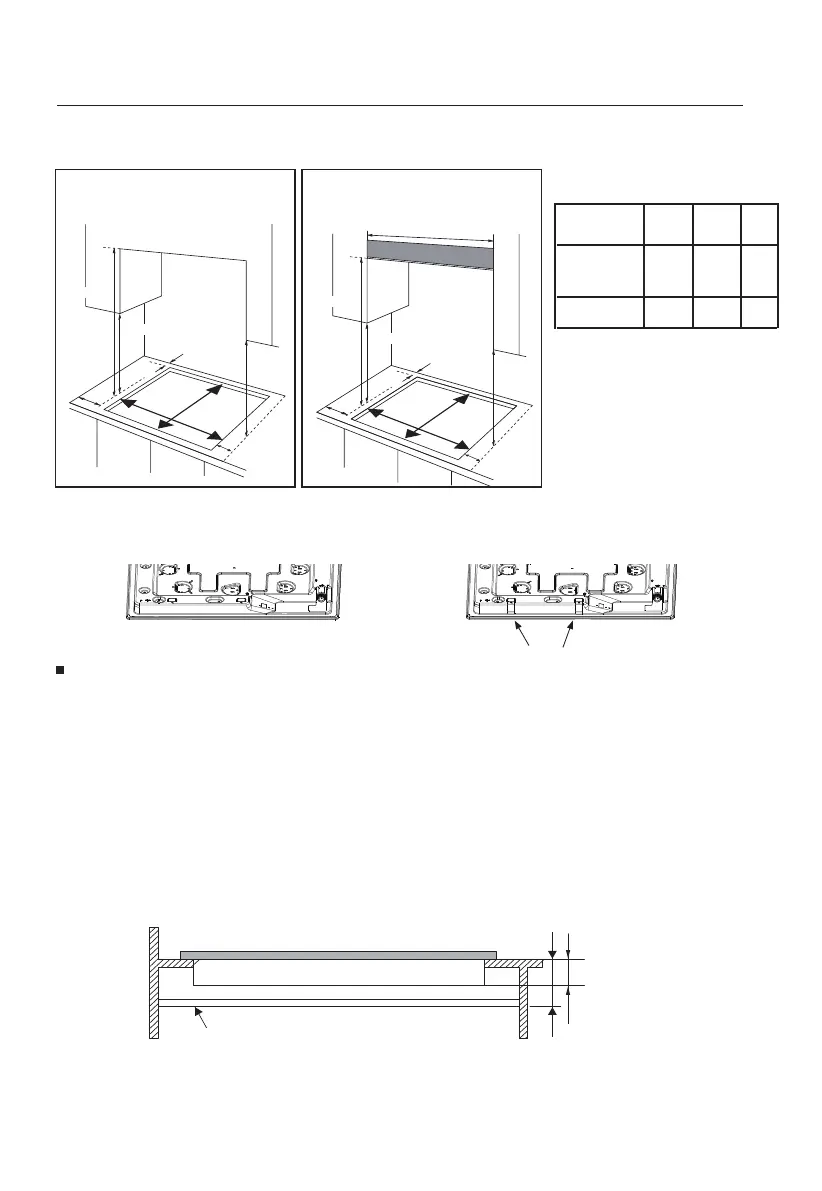

Installation of the appliance
Installation of the appliance
NA64D3010AS
NA64D3030AK
NA75D3030AS
Model
X
(Width)
Y
(Depth)
Z
560
480
490
490
600
560 750
21 _ Installation of the appliance
Y mm
.
.
Y mm
50mm
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITHOUT A COOKER HOOD ABOVE
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
700mm
400mm
400mm
150mm
Min.
X mm
Z mm
700mm
400mm
400mm
150mm
Min.
X mm
50mm
60mm
60mm
Cut out size
Hook
40mm
150mm(MAX)
a
- An oven must have forced ventilation to install a hob above it.
- Check the dimensions of the oven in the installation manual.
- The cut out size must obey the indication.
- Remove the hooks that are basically assembled on bottom plate when installing the gas cooktop in the
560x480mm cut out (NA75D3030AS without the hook)
Cut out : 560x480mm Cut out : 560x490mm
This appliance is to be built into a kitchen unit or 600mm worktop, providing the
following minimum distances are allowed ;
- The cut-out position must be a minimum distance of 60mm from a rear wall.
- A minimum distance of 150mm must be left between the side edges of the appliance and any
adjacent cabinets or walls.
- The minimum distance combustible material can be ftted above the appliance in line with the
edges of the appliance is 400mm. If it is fitted below 400mm a space of 50mm must be allowed
from the edges of the appliance.
- The minimum distance combustible material can be fitted directly above the appliance is 700mm.
- This panel(a) must be positioned at a maximum distance of 150mm below the worktop.
- This panel is not mandatory for application.
