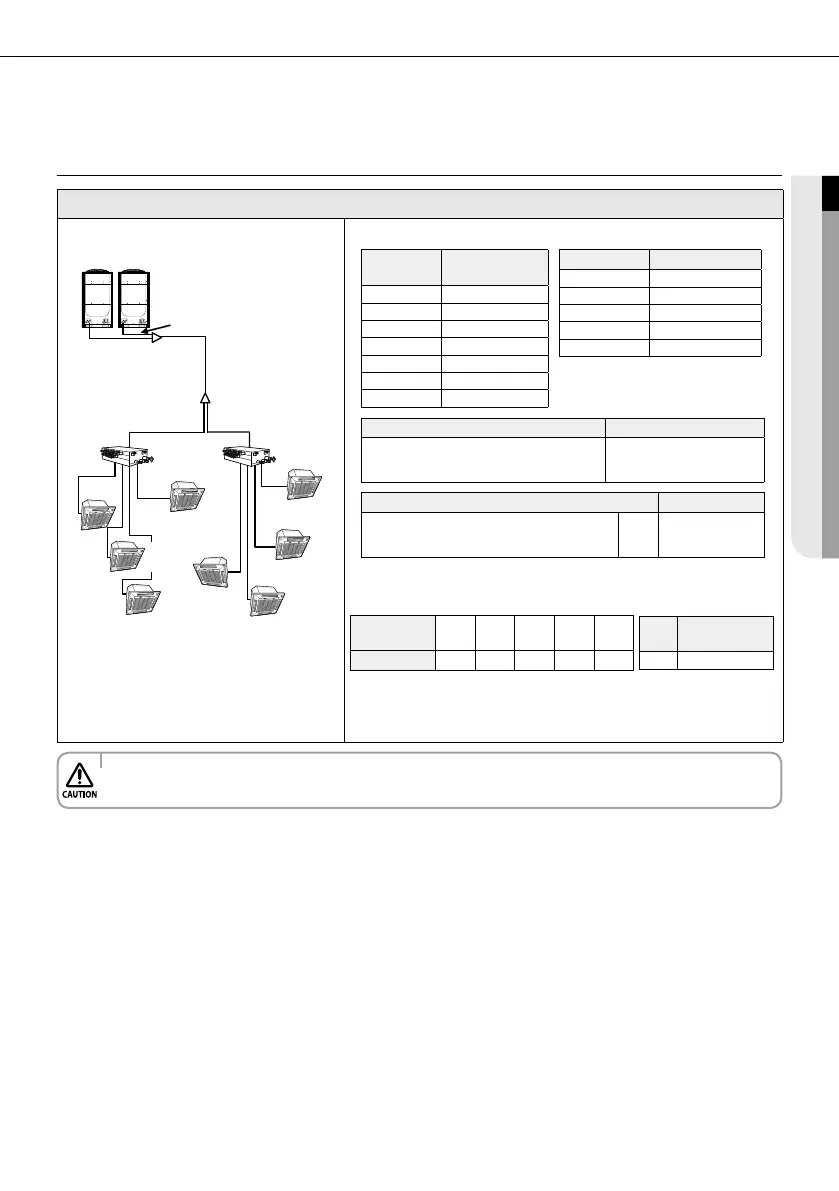

ENGLISH
• Total amount of refrigerant in the system must be less then 100kg. If total amount of refrigerant in the system is
over 100kg, the system has to be divided into smaller system, each containing less than 100kg.
Simultaneous heating and cooling- Additional refrigerant
Additional refrigerant charging
■ Additional refrigerant is charged according to the length and size of liquid pipe.
■ Example of additional refrigerant charging
Pipe length is as below.
Liquid pipe size
(O.D. mm)
Ø6.35 Ø9.52 Ø12.70 Ø15.88 Ø19.05
Length (m) 25 83 6 20 10
Additional refrigerant = 25 x 0.02 + 83 x 0.06 + 6 x 0.125 + 20 x 0.18 + 10 x 0.27 +
(2+18) x 0.01 + 2 x 0.5 = 13.73 kg
• Example) Additional refrigerant charging
Liquid pipe size
(O.D. mm)
Additional refrigerant
charging (kg/m)
Ø6.35 0.02
Ø9.52 0.06
Ø12.70 0.125
Ø15.88 0.18
Ø19.05 0.27
Ø22.23 0.35
Ø25.40 0.53
Additional refrigerant charging of MCU kit (kg/unit)
Additional refrigerant charging of MCU is 0.5kg for
every MCU kit
0.5
Basic model Factory charging (kg)
RVXVHT080GE 7.5
RVXVHT100GE 7.5
RVXVHT120GE 7.5
RVXVHT140GE 11.0
RVXVHT160GE 11.0
Additional refrigerant charging of distribution kit (kg/m) Remarks
Regardless of the liquid pipe size, additional refrigerant
charging is 0.01kg per meter after distribution kit
0.01
For wall-mounted &
ceiling indoor unit
MCU
Pipe length after
distribution kit (m)
2 Ea 20 (2+18)
Ø12.70(1m)
Ø12.70(5m)
Ø15.88(10m)
MCU-4BA
Ø9.52
(15m)
Ø9.52
(15m)
MCU-4BA
Ø9.52(25m)
Ø9.52(15m)
Ø9.52(18m)
Ø12.70(10m)Ø12.70(10m)
Ø6.35
(10m)
Ø6.35(15m)
Ø6.35
(2m)
