12

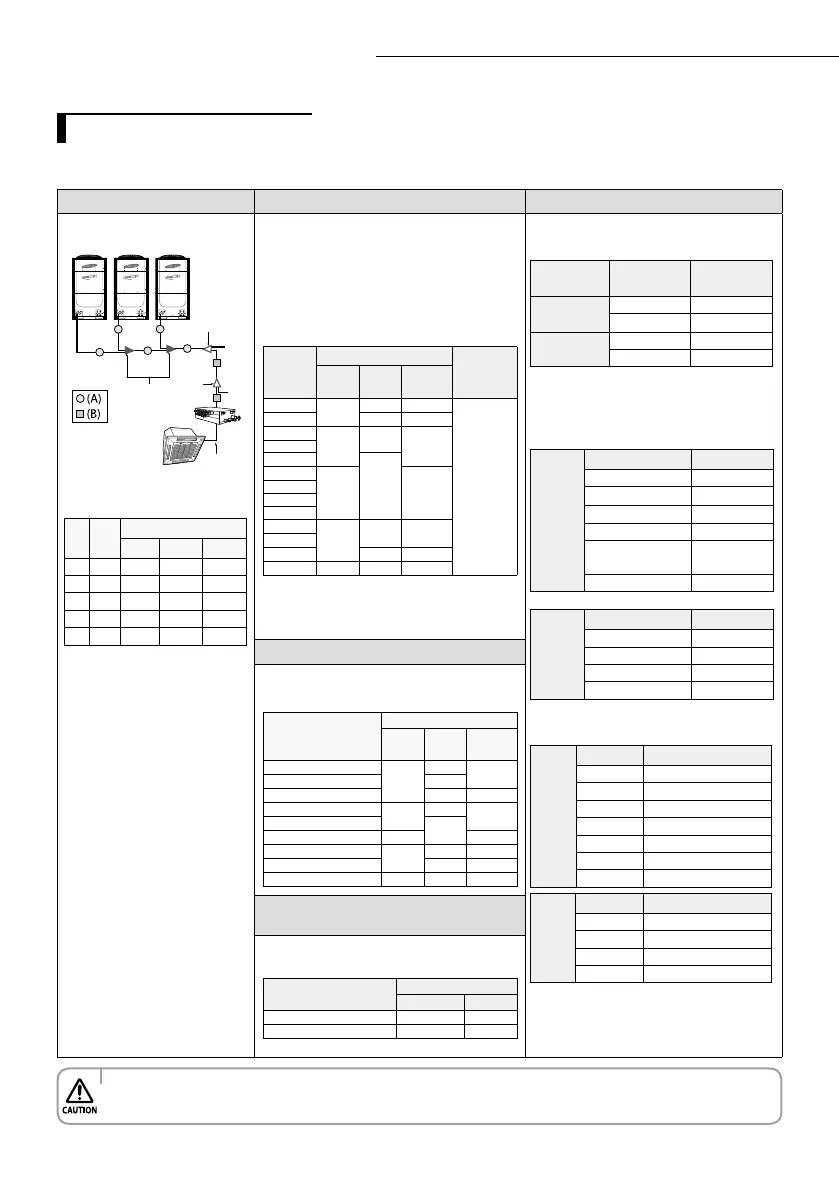

Selecting the refrigerant pipe
When selecting the refrigerant pipe, refer to the table below. (The amount of additional MCU refrigerant : 0.5 Kg)
Refrigerant piping works
Outdoor unit connection pipe size : (A1), (A2), (A3)
Branch joint : (D), (E), (F)
A1 : Select the pipes according to the outdoor unit
capacity with following table.
A2 : Select the pipes according to sum of outdoor
unit capacities behind the outdoor joint with
following table.
A3 : Select the main pipe of outdoor units with the
following table.
*A1 : Pipes to the outdoor unit (Liquid, Gas, High pressure gas)
*A2 : Pipes between outdoor joint kits
(Liquid, Gas, High pressure gas)
*A3 : Main pipes (Liquid, Gas, High pressure gas)
Pipe size between branch joints : (B)
Select the pipe size according to the capacity sum of
indoor units which are air connected below this pipe.
Pipe size between branch joints and indoor
unit : (C)
Select the pipe size according to the indoor’s
capacity.
12HP 14HP
Outdoor
unit
Pipe size (O.D. mm), (A)
Oil
balancing
pipe size
Liquid
pipe
Gas
pipe
High gas
pipe
8HP
Ø9.52
Ø19.05 Ø15.88
Ø6.35
10HP Ø22.23 Ø19.05
12HP
Ø12.70
Ø25.40
Ø22.2314HP
16HP
Ø28.58
18HP
Ø15.88 Ø25.40
20HP
22HP
24HP
26~30HP
Ø19.05
Ø31.75 Ø28.58
32~34HP
36~48HP Ø38.10 Ø31.75
50~64HP Ø22.23 Ø44.45 Ø38.10
■ Branch joint of outdoor unit’s multi
connection (D)
Model
Capacity of
outdoor
Liquid & Low
gas pipe
MXJ-T3819K Below 48 HP
MXJ-T4422K Above 50 HP
High gas pipe
MXJ-T3100K Below 48 HP
MXJ-T3800K Above 50 HP
Indoor unit’s capacity
Pipe size (O. D. mm)
Liquid pipe Gas pipe
2.2~5.6 kW Ø6.35 Ø12.70
7.1~14.0 kW Ø9.52 Ø15.88
16HP
Total indoor unit’s
capacity
Pipe size (O.D. mm)
Liquid
pipe
Gas
pipe
High gas
pipe
15.0 kW and below
Ø9.52
Ø15.88
Ø15.88
Over 15.0~23.2 kW and below
Ø19.05
Over 23.2~29.0 kW and below
Ø22.23 Ø19.05
Over 29.0~40.6 kW and below
Ø12.70
Ø25.40
Ø22.23
Over 40.6~46.4 kW and below
Ø28.58
Over 46.4~69.6 kW and below
Ø15.88 Ø25.40
Over 69.6~98.6 kW and below
Ø19.05
Ø31.75 Ø28.58
Over 98.6~139.2 kW and below
Ø38.10 Ø31.75
Over 139.2 kW
Ø22.23 Ø44.45 Ø38.10
■ First branch joint (E)
Select branch joint according to outdoor
unit’s capacity.
Liquid
& Low
pressure
gas
Y-joint (E)
Outdoor unit Model
8, 10, 12, 14 HP MXJ-YA2512K
16 HP
MXJ-YA2812K
18, 20, 22, 24HP MXJ-YA2815K
26, 28, 30, 32, 34HP MXJ-YA3119K
36, 28, 40, 42, 44, 46,
48HP
MXJ-YA3819K
50HP~ MXJ-YA4422K
High
pressure
gas
Y-joint (E)
Outdoor unit Model
8 HP MXJ-YA1500K
10 ~ 24 HP MXJ-YA2500K
26 ~ 48 HP MXJ-YA3100K
50HP~ MXJ-YA3800K
■ Branch joint (F)
Liquid
& low
pressure
gas
Y-joint
(F)
Model
Total indoor unit’s capacity
MXJ-YA1509K
15.0 kW and below
MXJ-YA2512K
Over 15.0~40.6 kW and below
MXJ-YA2812K
Over 40.6~46.4 kW and below
MXJ-YA2815K
Over 46.4~69.6 kW and below
MXJ-YA3119K
Over 69.6~98.6 kW and below
MXJ-YA3819K
Over 98.6~139.2 kW and below
MXJ-YA4422K
Over 139.2 kW
High
pressure
gas
Y-joint
(F)
Model
Total indoor unit’s capacity
MXJ-YA1500K
23.2 kW and below
MXJ-YA2500K
Over 23.2 ~ 69.6 kW and below
MXJ-YA3100K
Over 69.6 ~ 139.2 kW and below
MXJ-YA3800K
Over 139.2 kW
(C)
(F)
(D)
(A3)(A2)(A1)
• Example) 42HP of compact
combinations
HP Mark
Pipe size (O. D.mm)
Liquid Low gas High gas
12 (A1) Ø12.70 Ø25.40 Ø22.23
14 (A1) Ø12.70 Ø25.40 Ø22.23
16 (A1) Ø12.70 Ø28.58 Ø22.23
26 (A2) Ø19.05 Ø31.75 Ø28.58
42 (A3) Ø19.05 Ø38.10 Ø31.75
(A1)(A1)
(E)
(B)
• The sum of the total capacity of the indoor units connected to a MCU should not be over the max. 44.8kW.
